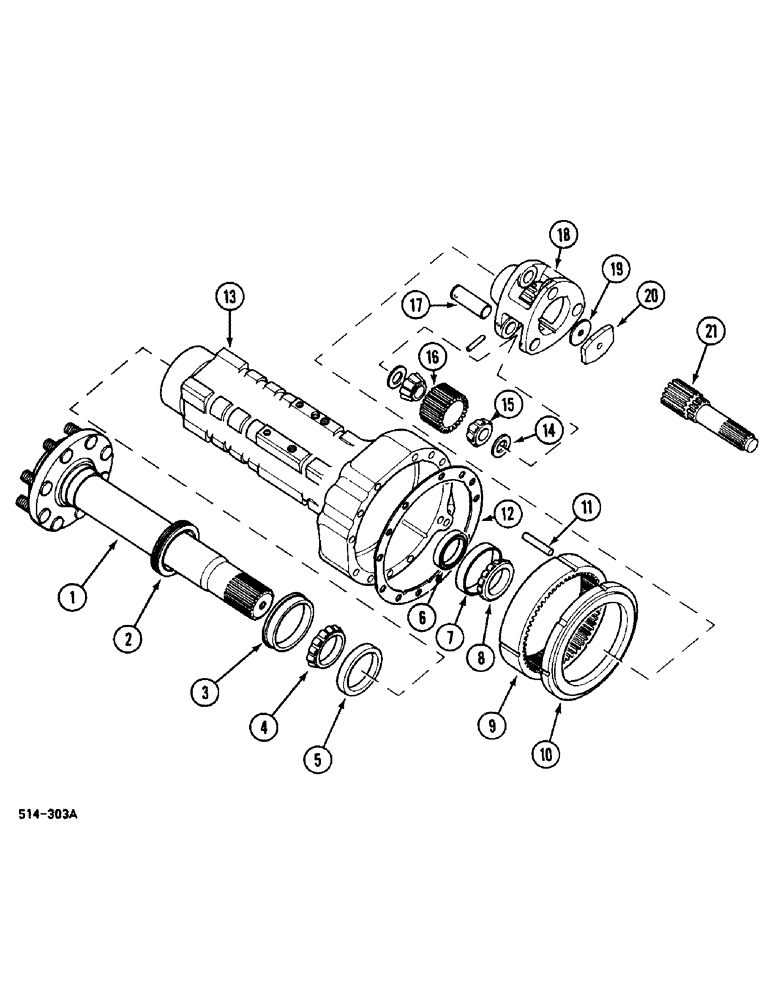

Запчасти Case IH 248 (6-434) - REAR AXLE, CARRIER AND CONNECTIONS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
404340R21
HALF SHAFT
AXLE ASSEMBLY, models 248, 385, 485 tractor
2шт.
1
404345R13
HALF SHAFT
AXLE ASSEMBLY, model 258 and 585 tractor
2шт.
404341R3
BOLT,5/8" - 18 x 1.93", Full Thd
BOLT, rear wheel
16шт.
3047575R2
NUT,Wheel, 5/8"-18
rear wheel
16шт.
2
105470C1
OIL SEAL
models 248, 385, 485 tractor
2шт.
2
105471C1
OIL SEAL
outer, model 258 and 585 tractor
2шт.
3
399754R1
SLEEVE
SLEEVE, models 248, 385, 485 tractor
2шт.
3
399796R1
SLEEVE
SLEEVE, model 258 and 585 tractor
2шт.
4
ST2000A
TAPERED BEARING
BEARING ASSEMBLY, models 248, 385, 485 tractor
2шт.
4
102160H
BEARING ASSY
ASSEMBLY, models 248, 385, 485 tractor
2шт.
4
399756R91
BEARING ASSY,2.6876" ID x 4.3307" OD x 0.8661, 0.7411"
BEARING ASSEMBLY, models 248, 385, 485 tractor
2шт.
4
1500904C91
ROLLER BEARING
ASSEMBLY, outer, optional, models 248, 385, 485 tractor
2шт.
4
ST2130
BEARING ASSY,3.0625" ID x 4.7812" OD x 0.9688"
ASSEMBLY, model 258 and 585 tractor
2шт.
4
384695R1
BEARING ASSY
ASSEMBLY, model 258 and 585 tractor
2шт.
4
384734R91
BEARING ASSY,4.7812" ID x 3.0625" OD x 0.9688, 0.6875"
BEARING ASSEMBLY, outer, optional, model 258 and 585 tractor
2шт.
5
CUP bearing, models 248, 385, 485 tractor, order: P/N ST2000A, 102160H, 399756R91 or 1500904C91
2шт.
6
380200R92
OIL SEAL
oil, models 248, 385, 485 tractor
2шт.
6
530094R91
SEAL
SEAL oil, inner, optional, models 248, 385, 485 tractor
2шт.
6
399798R91
OIL SEAL
model 258 and 585 tractor
2шт.
6
530102R91
OIL SEAL
inner, optional, model 258 and 585 tractor
2шт.
7
CUP bearing, order: P/N 298188R91, models 248, 385, 485 tractor
2шт.
CUP bearing, order: P/N 972467R91, 399799R91, model 258 and 585 tractor
2шт.
8
298188R91
BEARING ASSY
ASSEMBLY, models 248, 385, 485 tractor
2шт.
8
298198R91
BEARING
ASSEMBLY, models 248, 385, 485 tractor
2шт.
8
1500907C91
ROLLER BEARING
ASSEMBLY, inner, optional, models 248, 385, 485 tractor
2шт.
8
972467R91
BEARING ASSY
ASSEMBLY, model 258 and 585 tractor
2шт.
8
399799R91
BEARING ASSY,2.75" ID x 4.4375" OD x 1, 0.75"
ASSEMBLY, model 258 and 585 tractor
2шт.
8
1500912C91
TAPERED BEARING,3.12" ID x 4.4375" OD x 0.75"
ASSEMBLY, inner, optional, model 258 and 585 tractor
2шт.
9
535316R1
GEAR, RING
RING, GEAR 66 T, models 248, 385, 485 tractor
2шт.
9
535317R1
GEAR, RING
RING, GEAR 66 T, model 258 and 585 tractor
2шт.
10
114620C1
RING,260mm OD
brake outer disc
2шт.
11
529685R1
DOWEL
DOWEL, models 248, 385, 485 tractor
6шт.
11
529686R1
DOWEL
model 258 and 585 tractor
6шт.
12
399762R3
GASKET
2шт.
13
99452C1
AXLE CARRIER
left, model 258 and 585 tractor
1шт.
99451C1
AXLE CARRIER
right, model 258 and 585 tractor
1шт.
20665R1
BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8
BOLT, model 258 and 585 tractor
22шт.
13(a)
94223C1
CARRIER
axle, left, models 248, 385, 485 tractor
1шт.
223444
BOLT,Hex, 5/8" - 11 x 4", Gr 8
models 248, 385, 485 tractor
11шт.
13(a)
94224C1
CARRIER
axle, right, models 248, 385, 485 tractor
1шт.
223444
BOLT,Hex, 5/8" - 11 x 4", Gr 8
export, models 248, 385, 485 tractor
10шт.
223444
BOLT,Hex, 5/8" - 11 x 4", Gr 8
UK only, models 248, 385, 485 tractor
11шт.
20665R1
BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8
BOLT, models 248, 385, 485 tractor
1шт.
13(b)
94225C1
AXLE CARRIER
left, model 485 tractor
1шт.
223444
BOLT,Hex, 5/8" - 11 x 4", Gr 8
export, model 485 tractor
11шт.
20665R1
BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8
BOLT, UK only, model 485 tractor
11шт.
13(b)
94226C1
AXLE CARRIER
right, model 485 tractor
1шт.
223444
BOLT,Hex, 5/8" - 11 x 4", Gr 8
export, model 485 tractor
10шт.
20665R1
BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8
BOLT, UK only, model 485 tractor
10шт.
14
65420C1
SHIM KIT
models 248, 385, 485 tractor
1шт.
14
65421C2
SHIM KIT
model 258 and 585 tractor
1шт.
15
618023R91
BEARING ASSY,34.93mm ID x 18.2mm W
models 248, 385, 485 tractor
12шт.
15
50212VA
ROLLER BEARING,33.35mm ID x 24.01mm W
model 258 and 585 tractor
12шт.
16
399784R2
PINION
GEAR, 25 T, models 248, 385, 485 tractor
6шт.
16
66128C2
PINION
GEAR, model 258 and 585 tractor
6шт.
17
399788R1
PIN
models 248, 385, 485 tractor
6шт.
17
399812R1
SHAFT
model 258 and 585 tractor
6шт.
18
404339R3
PINION CARRIER
GEAR CARRIER models 248, 385, 485 tractor
2шт.
18
114613C1
CARRIER
gears, model 258 and 585 tractor
2шт.
19
65422C1
SHIM KIT
1шт.
20
399748R1
SPACER
2шт.
20668R1
BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8
BOLT
2шт.
21
404338R1
SHAFT
models 248, 385, 485 tractor
1шт.
21
404343R1
SHAFT
right, model 258 and 585 tractor
1шт.
21
404337R1
SHAFT
models 248, 385, 485 tractor
1шт.
21
404342R1
SHAFT
left, model 258 and 585 tractor
1шт.
Выбрано товаров: 67
