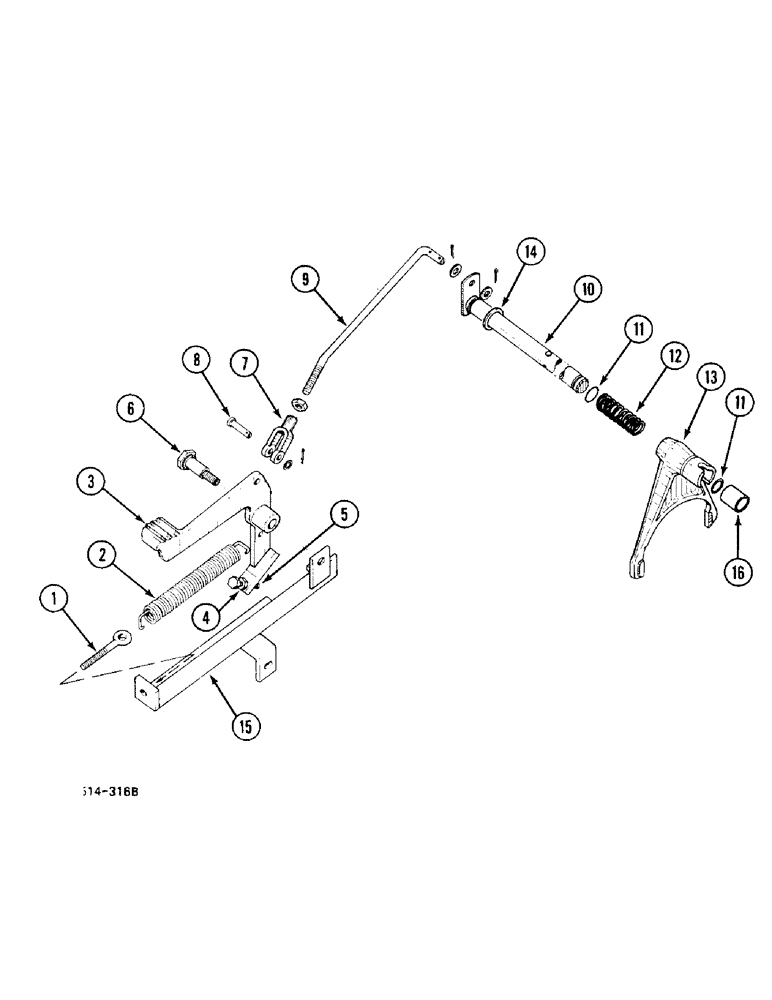

Запчасти Case IH 248 (6-430) - DIFFERENTIAL LOCK, VERSION WITH CAB (06) - POWER TRAIN

1

3121850R1

EYEBOLT,3/8" - 16 x 3"

BOLT, EYE

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

3121849R2

SPRING

pedal return

1шт.

3

3116181R3

PEDAL

1шт.

4

109084

NUT,1/4"-20, G5

1шт.

5

not used

1шт.

6

3116897R1

BOLT,Lock, 9/16" - 12 x 2.38"

1шт.

7

753984R1

CLEVIS,3/8" - 16

1шт.

8

NLS

NO LONGER SERVICED

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

Q1597

WASHER

1шт.

9

3116187R91

ROD

1шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

Q1597

WASHER

2шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

10

1500384C1

SHAFT ASSY.

1шт.

10(a)

1289507C1

SHAFT

1шт.

1500388C2

PIN

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

Q3501

WASHER

1шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

12

527878R1

SPRING

1шт.

13

1500386C1

FORK

ASSEMBLY

1шт.

14

551658R1

WASHER

1шт.

Q3501

WASHER

1шт.

15

3116182R1

SUPPORT ASSY.

1шт.

15(b)

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

495-11053

WASHER,1/2", SAE

1шт.

103323

LOCK WASHER,1/2"

1шт.

16(b)

94272C1

BUSHING

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.
