(6-426) - DIFFERENTIAL LOCK, VERSION WITHOUT CAB

Запчасти Case IH 248 (6-426) - DIFFERENTIAL LOCK, VERSION WITHOUT CAB (06) - POWER TRAIN

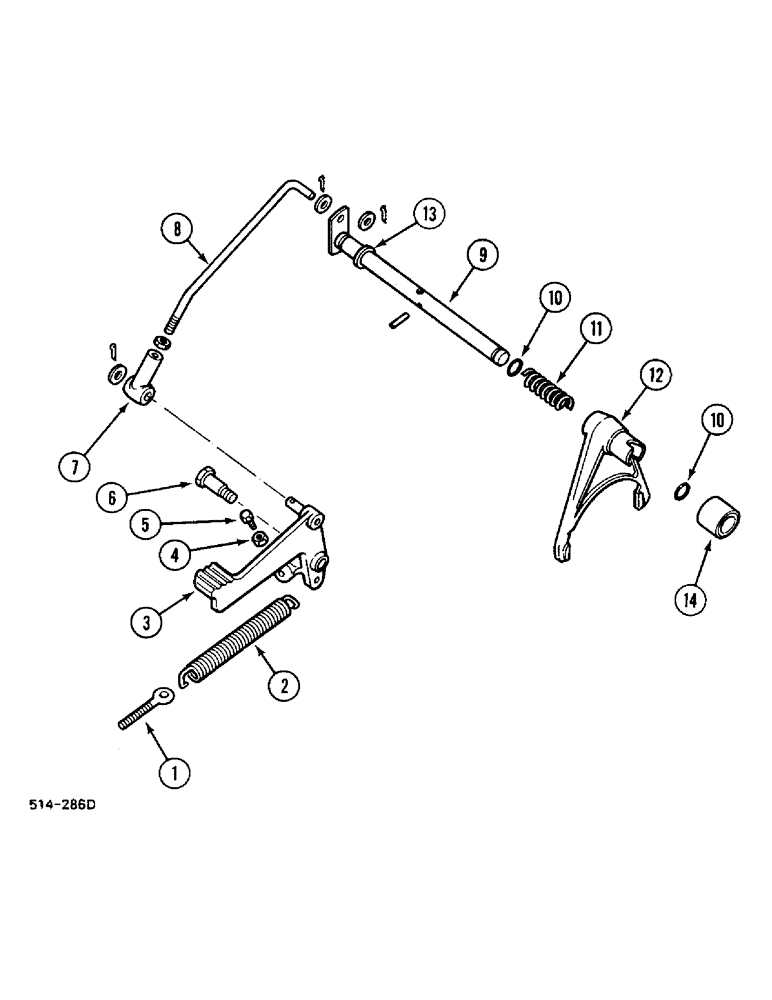

Схема запчастей Case IH 248 - (6-426) - DIFFERENTIAL LOCK, VERSION WITHOUT CAB (06) - POWER TRAIN
3
1
7
4
13
2
6
11
14
12
10
9
8
10
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3121850R1

EYEBOLT,3/8" - 16 x 3"

BOLT, EYE

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

3121849R2

SPRING

1шт.

3

66441C1

PEDAL

1шт.

11002VA

WASHER

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

4

109084

NUT,1/4"-20, G5

1шт.

5

1282707C1

BOLT,1/4" - 20 x 1", Full Thd

BOLT

1шт.

6

527885R1

BOLT

BOLT

1шт.

7

527880R1

END

1шт.

8

527879R1

ROD

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

9(a)

1289507C1

SHAFT

1шт.

1500388C2

PIN

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

Q3501

WASHER

1шт.

9(b)

1500384C1

SHAFT ASSY.

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.

1500388C2

PIN

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

Q3501

WASHER

1шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

11

527878R1

SPRING

1шт.

12

1500386C1

FORK

ASSEMBLY

1шт.

13

551658R1

WASHER

1шт.

Q3501

WASHER

1шт.

14(b)

94272C1

BUSHING

1шт.

For single acting with self sealing screwed coupling, first bank

1шт.
