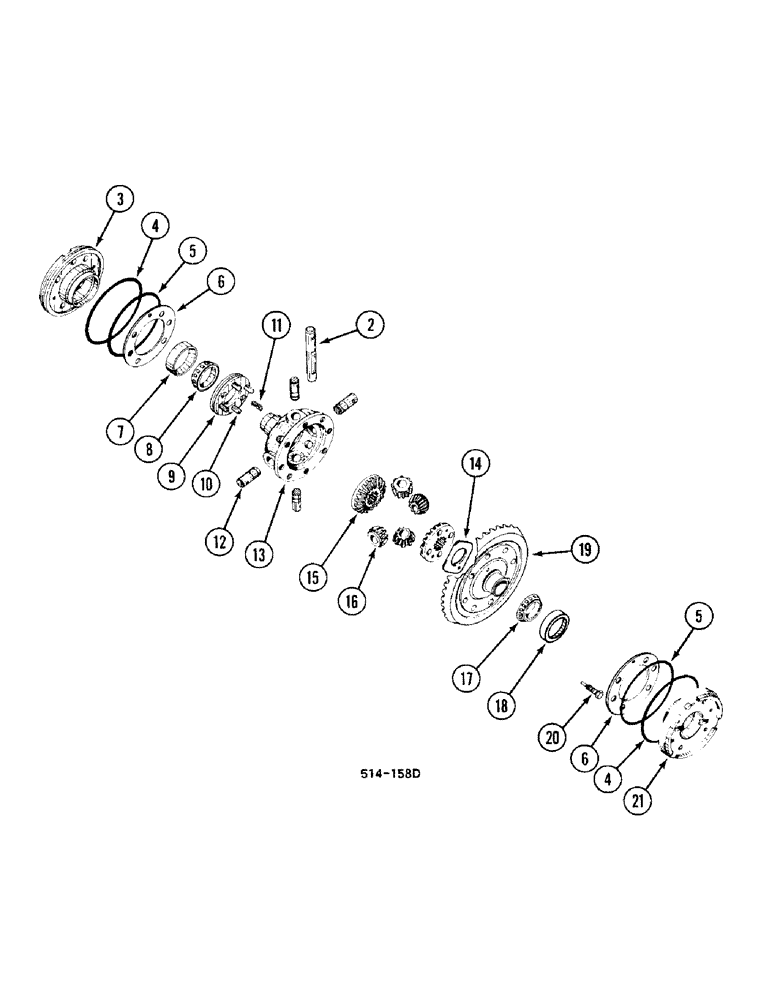

Запчасти Case IH 248 (6-422) - DIFFERENTIAL AND CONNECTIONS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
not used
1шт.
2
399775R1
SHAFT
models 248, 385, 485 tractor
1шт.
3
399770R1
BEARING CARRIER
CARRIER bearing, right
1шт.
340340R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
1/2 x 1-1/2 inch
4шт.
4
21472R1
O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro
bearing carrier
2шт.
5
289506R1
O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro
bearing carrier seal
2шт.
6
65419C1
BEARING CARRIER
1шт.
7
402353R91
BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"
ASSEMBLY
1шт.
7
105504H
TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm
ASSEMBLY
1шт.
7
1500909C91
TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.1 mm
ASSEMBLY, right, optional
1шт.
8
CONE bearing, order: P/N 105504H, 402353R91 or 1500909
1шт.
9
399764R11
LOCKING RING
1шт.
10
399765R1
PIN
4шт.
11
400867R1
SPRING
2шт.
12
399804R1
PIN
model 258 and 585 tractor
4шт.
13
399763R1
PINION CARRIER
GEAR CARRIER
1шт.
14
399778R1
THRUST WASHER
thrust, bevel gear
1шт.
15
404336R1
PINION
GEAR 20 T
2шт.
16
399776R1
PINION
GEAR 10 T, models 248, 385, 485 tractor
2шт.
16
399776R1
PINION
GEAR 10 T, model 258 and 585 tractor
4шт.
17
105502H
TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"
ASSEMBLY
1шт.
17
399766R91
ROLLER BEARING
BEARING ASSEMBLY
1шт.
1502182C91
TAPERED BEARING,57.163 mm ID x 97.655 mm OD x 24.808 mm
ASSEMBLY, left, optional
1шт.
18
CUP bearing, order: 105502H
1шт.
19
GEAR, see range transmission, in rear frame
1шт.
20
399779R2
BOLT,Hex, 1/2" - 13 x 2.12", Gr 8
BOLT, models 248, 385, 485 tractor
1шт.
20
399779R2
BOLT,Hex, 1/2" - 13 x 2.12", Gr 8
BOLT, model 258 and 585 tractor
4шт.
340340R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
1/2 x 1-1/2 inch, models 248, 385, 485 tractor
7шт.
340340R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
1/2 x 1-1/2 inch, model 258 and 585 tractor
4шт.
21
399769R2
BEARING CARRIER
CARRIER bearing, left
1шт.
340340R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
1/2 x 1-1/2 inch
4шт.
Выбрано товаров: 31
