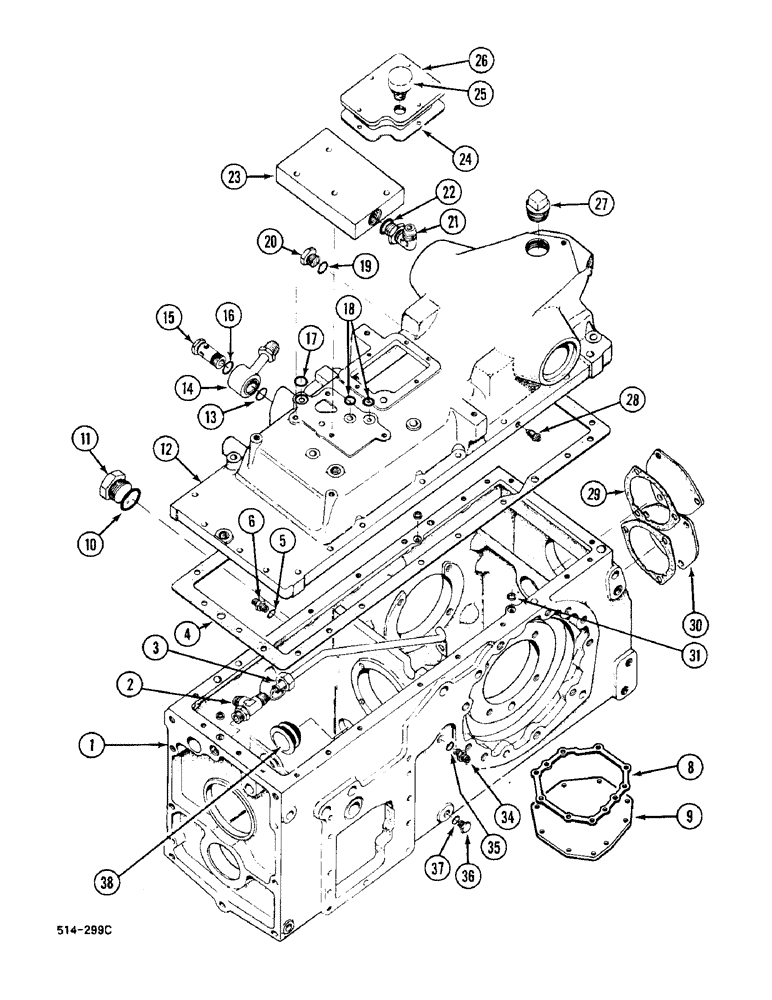

Запчасти Case IH 248 (6-408) - REAR FRAME, COVER AND CONNECTIONS (06) - POWER TRAIN

1(a)

82793C91

FRAME

ASSEMBLY

1шт.

1(b)

1289949C91

FRAME ASSY

1шт.

318300R1

PLUG,Cup, 1"

model 248 and 258 tractor

1шт.

327412R1

PLUG,Cup, 13/16"

21 mm

1шт.

3113103R1

PLUG

1шт.

444836

PLUG,Hex Hd, 3/4"-14

optional

1шт.

9409961

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

version with automatic hitch

2шт.

349373R1

PLUG

1шт.

19904R1

DOWEL,1/2" x 1"

2шт.

19875R1

DOWEL,5/8" x 1 1/2"

4шт.

386194R1

PLUG,Cup, 3/4"

models 248, 385, 485 tractor

2шт.

386194R1

PLUG,Cup, 3/4"

model 258 and 585 tractor

1шт.

512870R1

PLUG,Cup, 2 1/4"

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

1/2 x 1-1/4 inch

1шт.

28673R1

PLUG,Cup, 2 1/8"

1шт.

23828R1

PLUG,Cup, 2 1/2"

1шт.

151162R1

PLUG,Cup, 1 3/8"

2шт.

327413R1

PLUG

1шт.

3142063R1

PLUG

1шт.

2

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

pump outlet tube

1шт.

3(a)

86337C1

PIPE

TUBE ASSEMBLY

1шт.

3(b)

68393C1

TUBE ASSY.

oil return

1шт.

4(b)

538649R92

GASKET KIT

SET, with 31

1шт.

5

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

6

3129671R1

FITTING

ADAPTOR tube, RH brake

1шт.

7

not used

1шт.

8(a)

82632C2

GASKET

1шт.

8(b)

405739R2

GASKET

1шт.

9(a)

94293C1

COVER

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

9шт.

26273R1

WASHER

models 248, 385, 485 tractor

9шт.

9(b)

405738R1

COVER

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

11

9410363

PLUG

1шт.

12

529381R96

COVER ASSY

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

179846

LEVER

11шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

BOLT

2шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

BOLT

2шт.

179888

LEVER

BOLT

4шт.

444697

PLUG,Hex Soc, 3/8"-18

1шт.

444698

PLUG

optional

1шт.

386194R1

PLUG,Cup, 3/4"

1шт.

373553R1

PLUG,Cup, 7/8"

1шт.

41600D

PLUG,Cup, 1 1/8"

1шт.

24469R1

PLUG,Cup, 3 1/4"

2шт.

103321

LOCK WASHER,3/8"

14шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

3шт.

231-1408

LOCK NUT,1/2"-13, GB

3шт.

536855R1

PLUG

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

531144R1

STUD

2шт.

531143R2

STUD

2шт.

13

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

14

66762C1

PIPE,0.625" OD, 3.5" Length

TUBE ASSEMBLY

1шт.

15

66766C1

PLUG

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

auxiliary valve manifold

1шт.

18

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

auxiliary valve manifold

2шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

9410359

PLUG

1шт.

21

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

auxiliary valve manifold, 90°

1шт.

22

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

529382R1

MANIFOLD

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

24

399996R1

GASKET

1шт.

25

1954000C1

BREATHER

1шт.

26

99969C1

COVER

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

27

20953R1

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

28

82301R1

BLEEDER,3/8" - 24 x 117mm

2шт.

28

3068777R1

SCREW

brake bleed, optional

2шт.

29

399843R3

GASKET

2шт.

30

399842R1

COVER

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

31

406734R1

SEAL

3шт.

32

not used

1шт.

33

not used

1шт.

34

3129671R1

FITTING

ADAPTOR, LH brake tube

1шт.

35

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

36

9410356

PLUG

1шт.

37

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

38

527748R1

PLUG

1шт.
