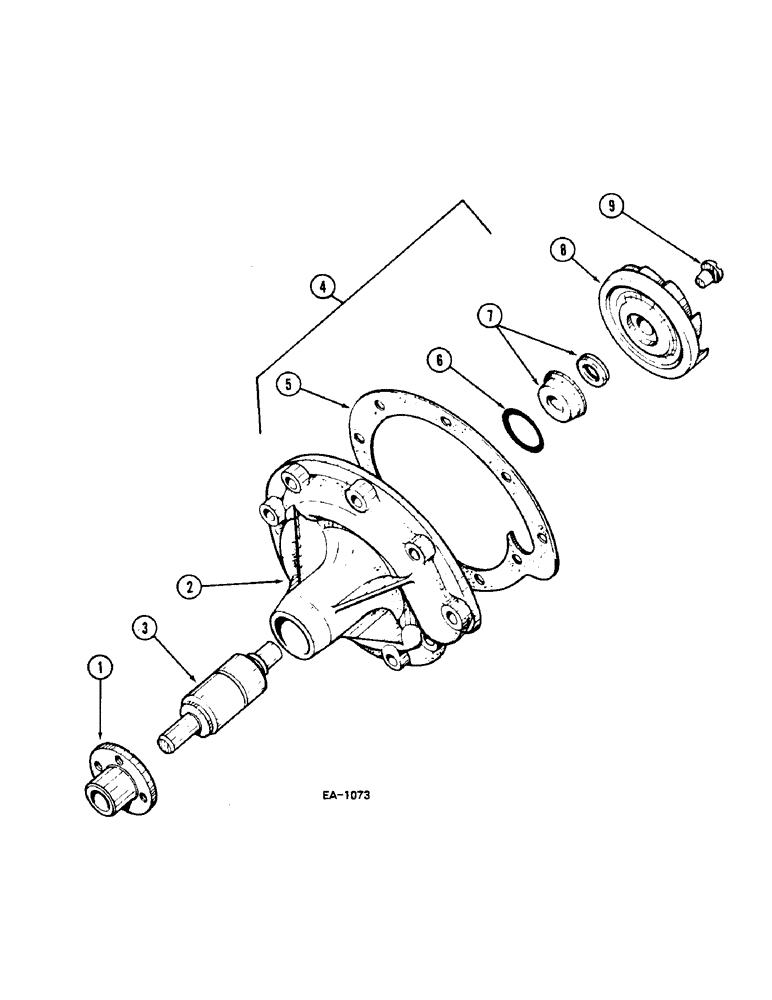

Запчасти Case IH 248 (2-030) - WATER PUMP (02) - ENGINE

3136053R92

PUMP, WATER

consists of: Ref. 1 thru 9

1шт.

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735102C91

REMAN-WATER PUMP

Reman for New PN 3136053R92

1шт.

1928123C1

CORE-WATER PUMP

Return Number

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

7шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

8шт.

28301R1

HEX SOC SCREW,5/16" - 18 x 1 3/8"

1шт.

1

3132146R1

HUB

1шт.

1

3132148R1

HUB

optional

1шт.

2

3132677R41

BODY

with Ref. 3

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

1шт.

4

3055285R93

GASKET KIT

PACKAGE service, consists of: Ref. 5, 6 and 7

1шт.

5

3055177R1

GASKET

1шт.

6

O-RING

1шт.

7

RING with packing

1шт.

8

3055211R2

IMPELLER

1шт.

9

3055308R1

PLUG

1шт.
