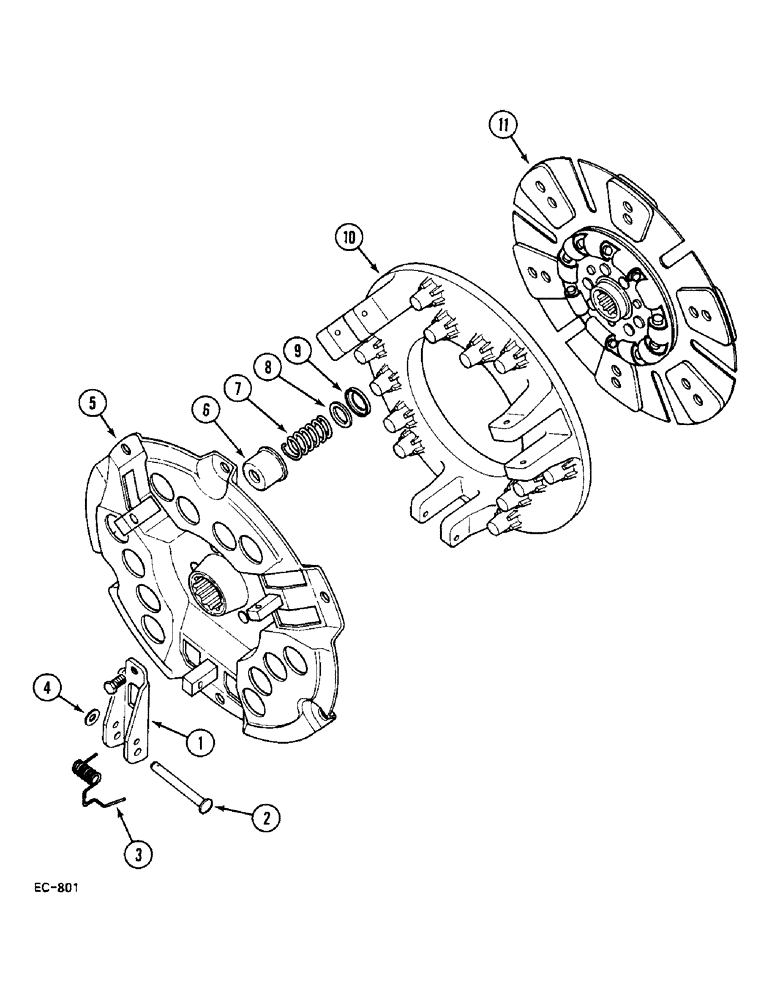

Запчасти Case IH 248 (6-406) - CLUTCH - HEAVY DUTY, 248, 485, 585 (06) - POWER TRAIN

85025C91

COVER ASSY

Rockford, consists of: Ref. 1 thru 10

1шт.

84342556R

REMAN-CLUTCH PLATE

248 (S/N 1591 & ON) (1/86-12/90), Reman For New PN 85025C91

1шт.

84342556C

CORE-CLUTCH PLATE

Return Part Number

1шт.

1944275C1

COVER ASSMEBLY, remanufactured

1шт.

1

85120C91

PACKAGE

consists of: 3 levers

1шт.

163479R3

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 0.545", Drilled

3шт.

2

149487R1

PIN

3шт.

107762

WASHER,3/32" x 5/8"

3шт.

3

375572R1

SPRING

3шт.

4

95-11034

WASHER,1/4"

3шт.

5

85148C1

PLATE

back

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

6шт.

6

353316R1

SPRING CUP

12шт.

7

349934C1

SPRING

12шт.

8

311291C1

INSULATING WASHER

12шт.

9

311292C1

WASHER

12шт.

10

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

1шт.

11

85026C1

CLUTCH DISC

CLUTCH DISK PLATE drive

1шт.

11

1944259C1

DRIVEN PLATE

Remanufactured

1шт.

11

85026C3R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 12 in., 10Tooth hub, 1 1/8 in. OD splines, 6 button

1шт.

11

85026C3C

CORE-CLUTCH DISC

Return Number, 12 in. clutch disc

1шт.
