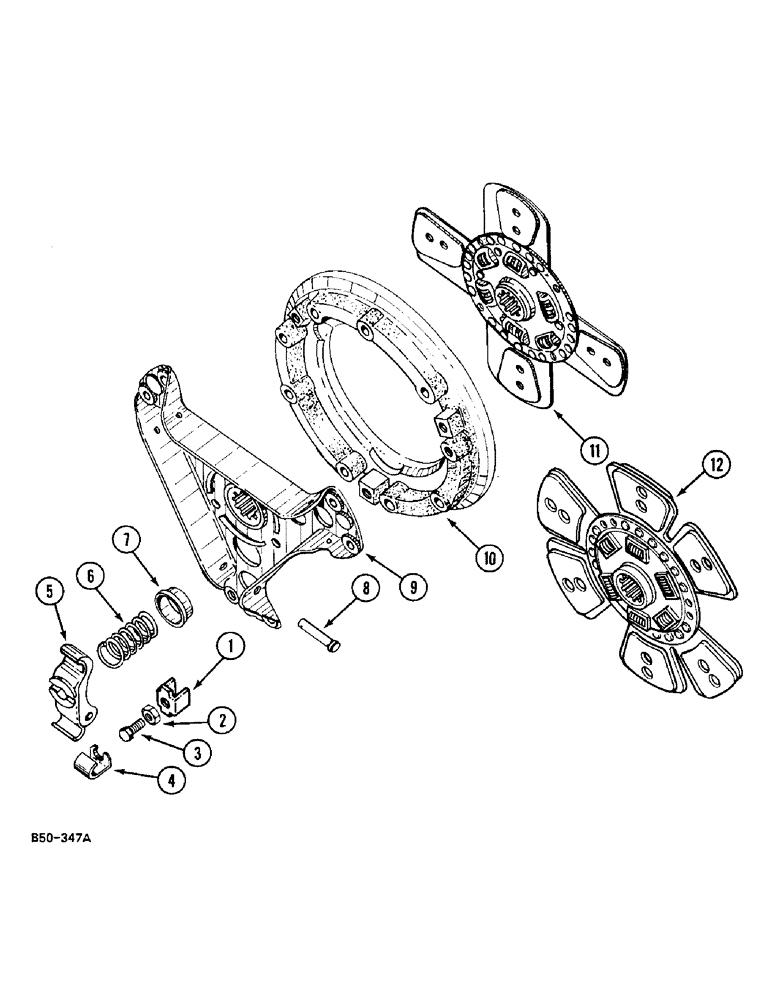

Запчасти Case IH 248 (6-402) - CLUTCH (06) - POWER TRAIN

1500655C92

CLUTCH ASSEMBLY

COVER, Laycock, model 385 tractor

1шт.

1944250C1

REMAN-CLUTCH PLATE

re-manufactured, models 248, 258, 485, 585 tractor

1шт.

92602C91

CLUTCH ASSEMBLY

COVER, Laycock, consists of: Ref. 1 thru 10, models 248, 258, 485, 585 tractor

1шт.

103320

LOCK WASHER,5/16"

6шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

1

CLIP, order: P/N 92607C1

3шт.

2

LOCKNUT, order: P/N 92607C1

3шт.

3

SCREW, order: P/N 92607C1

3шт.

4

CLIP, order: P/N 92607C1

3шт.

5

LEVER, order: P/N 69912C1

3шт.

6

SPRING, order: P/N 69910C2, model 385 tractor

3шт.

SPRING set of 2, order: P/N 2779018R91, set of 2, models 248, 258, 485, 585 tractor

3шт.

7

CUP spring, order: P/N 69910C2, model 385 tractor

3шт.

CUP spring, order: P/N 2779018R91, models 248, 258, 485, 585 tractor

3шт.

8

PIN pivot, order: P/N 69912C1

3шт.

9

BRACKET ASSEMBLY, order: P/N 1500655C92, model 385 tractor

1шт.

BRACKET ASSEMBLY, order: P/N 92602C91, model 248 tractor

1шт.

10

PLATE drive, order: P/N 92605C1

1шт.

11

3121506R92

CLUTCH & DISC ASSY

PLATE driven, model 385 tractor

1шт.

12

3121507R94

CLUTCH DISC

CLUTCH DISK PLATE driven

1шт.

12

1944263C1

REMAN-CLUTCH ASSY

PLATE driven

1шт.

92605C1

DISC

PACKAGE, consists of: 1 thru 4 and 10, not illustrated

1шт.

92607C1

PACKAGE

consists of: Ref. 1 thru 4, not illustrated

1шт.

69912C1

KIT

consists of: Ref. 5 and 8, not illustrated

1шт.

2779018R91

PACKAGE

consists of: Ref. 6 and 7, models 248, 258, 485, 585 tractor not illustrated

1шт.

69910C2

KIT

consists of: Ref. 6 and 7, model 385 tractor, not illustrated

1шт.

3129834R1

CLUTCH & DISC ASSY

for use with Cameron Gardner Loader, model 248 tractor, not illustrated

1шт.
