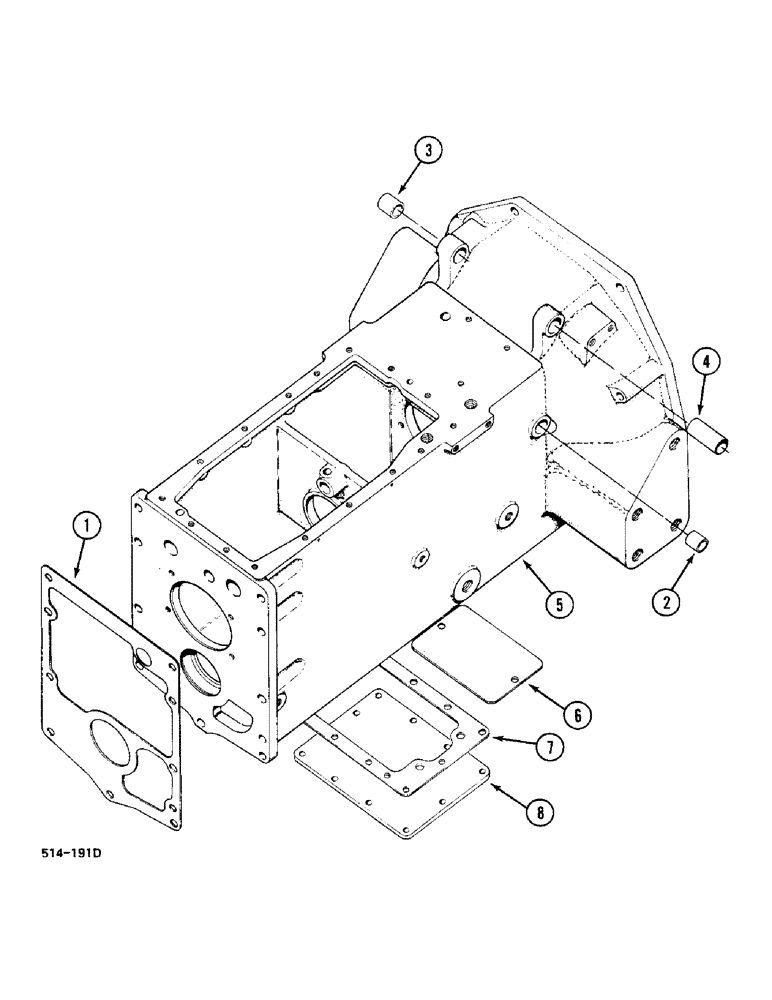

Запчасти Case IH 248 (6-400) - CLUTCH HOUSING AND CONNECTIONS (06) - POWER TRAIN

1

399814R4

GASKET

1шт.

2

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

3

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

4

537099R1

NO LONGER SERVICED

bushing

1шт.

4

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

optional

1шт.

5

94294C91

HOUSING

ASSEMBLY, with 2, 3 and 4

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

BOLT, 1/2 x 1-1/2 inch

9шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 inch

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

BOLT

1шт.

103323

LOCK WASHER,1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

Model 248, 385, 485 tractor

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

Model 258 and 585 tractor

3шт.

187238

BOLT,Hex, 1/2" - 13 x 6", Gr 5

BOLT

1шт.

19962R1

DOWEL,3/8" x 3/4"

1шт.

3113103R1

PLUG

1шт.

444836

PLUG,Hex Hd, 3/4"-14

optional

1шт.

327411R1

PLUG,Cup, 5/8"

1шт.

9410359

PLUG

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20556R1

DOWEL,1/2" x 3/4"

1шт.

19904R1

DOWEL,1/2" x 1"

2шт.

6

399817R1

COVER

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

7

402556R2

GASKET

1шт.

8

402182R1

COVER

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

11шт.
