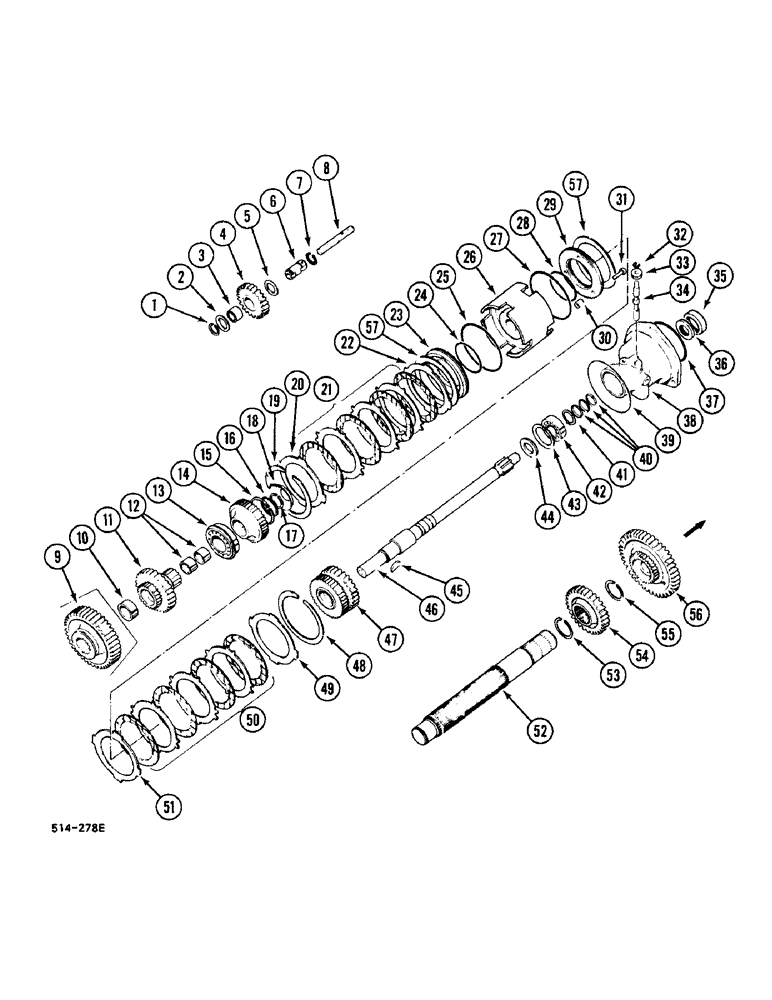

Запчасти Case IH 248 (6-390) - FORWARD AND REVERSE - SYNCHROMESH DRIVE, 248, 258 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
362260R1
RING, SNAP
RING SNAP retaining
1шт.
2
527772R1
WASHER
1шт.
3
529930R91
BEARING
needle
1шт.
3
551139R91
BEARING, NEEDLE
optional
1шт.
4
527776R1
PINION
GEAR forward/reverse idler, 23 T
1шт.
5
527772R1
WASHER
1шт.
6
527775R2
SLEEVE
1шт.
18543R1
LOCK PIN,7/32" x 1", Slotted
1шт.
7
362260R1
RING, SNAP
RING SNAP retaining
1шт.
591184R1
PIN,3/16" x 1 1/4", Coiled
3/16" x 1 1/4", Coiled
1шт.
8
527774R1
SHAFT
1шт.
9
527779R2
GEAR
high-low, speed train type A and D, 40 T
1шт.
9
527773R2
GEAR
high-low, speed train type B, E, 42 T
1шт.
10
531168R91
BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W
clutch shaft
1шт.
11
404200R3
PINION
GEAR direct drive, 28 T
1шт.
12
531436R91
NEEDLE BEARING
bearing, needle
2шт.
12
550839R91
BEARING, NEEDLE
clutch shaft, optional
2шт.
13
3067617R91
BEARING, BALL
1шт.
13
ST243
BEARING, BALL,45 mm ID x 85 mm OD x 19 mm
1шт.
13
42347D
BALL BEARING
BEARING ball
1шт.
13
3066860R91
BALL BEARING
BEARING ball
1шт.
13
3066862R91
BALL BEARING
BEARING ball
1шт.
13
398323R91
BALL BEARING
BEARING ball, direct drive, optional
1шт.
14
404199R3
SPROCKET ASSY.
carrier, clutch disc
1шт.
15
70244C1
RING, SNAP
RING SNAP retaining
1шт.
16
336000R1
SNAP RING,#175, 1.640", Ext
retaining
1шт.
17
583976R1
SNAP RING,#125, 1.179", Ext
RING retaining
1шт.
18
70020C1
SLINGER
SLINGER
1шт.
19
401720R1
CIRCLIP
retaining
1шт.
20
70016C1
PLATE
clutch backing
1шт.
21
534937R92
PACKAGE, REPAIR
clutch, consists of: 8 plates, 6 plates
1шт.
22
402572R1
PLATE
piston backing
1шт.
23
70017C1
PISTON
1шт.
24
401723R1
O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk
sealing, inner
1шт.
25
401724R1
SEAL,0.551" ID x 0.07" Width
sealing, outer
1шт.
26
CUP clutch, order: P/N 70014C2
1шт.
27
401724R1
SEAL,0.551" ID x 0.07" Width
sealing, outer
1шт.
28
401723R1
O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk
sealing, inner
1шт.
29
70017C1
PISTON
1шт.
30
527769R2
SPACER
3шт.
31
527768R1
BOLT (SPREADER),Skt Hd, 1/4" - 28 x 1"
3шт.
114530C1
BOLT
optional
3шт.
65240C1
SQUARE NUT
3шт.
32
896045R1
SNAP RING,#37, Ext
1шт.
33
531539R1
COLLAR
1шт.
34
536974R1
STEM
1шт.
35
not used
1шт.
36
SEAL oil, clutch shaft, order: P/N 1277488C2
1шт.
37
355740R1
O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro
1шт.
38
527761R4
CAGE
1шт.
39
343942R1
O-RING,5.359" ID x 0.139" Width
1шт.
40(a)
85038C1
SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk
3шт.
40(b)
406275R1
RING
3шт.
41
3112664R1
SNAP RING
retaining, outer
1шт.
42
70125C91
BEARING, BALL
1шт.
42
ST213
BALL BEARING,30 mm ID x 62 mm OD x 16 mm
ball
1шт.
42
86276H
BALL BEARING
ball
1шт.
42
704771R92
BEARING, BALL,30 mm ID x 62 mm OD x 16"
optional
1шт.
43
T17410
SNAP RING,M62 x 1.58mm Thk, Int
1шт.
44
527767R1
THRUST WASHER
1шт.
45
88907
WOODRUFF KEY,#B, 5/16" x 1", HT
1шт.
46(a)
92758C91
PACKAGE
repair
1шт.
46(b)
70014C2
PACKAGE, REPAIR
shaft and clutch cup, consists of: 1 shaft and 1 cup
1шт.
583976R1
SNAP RING,#125, 1.179", Ext
RING retaining
1шт.
70020C1
SLINGER
SLINGER
1шт.
222386
CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt
2шт.
47
527763R3
PINION
GEAR ASSEMBLY, drive
1шт.
48
401720R1
CIRCLIP
retaining
1шт.
49
70016C1
PLATE
clutch backing
1шт.
50
534937R92
PACKAGE, REPAIR
1шт.
51
402572R1
PLATE
piston backing
1шт.
52
404104R3
SHAFT
COUNTER
1шт.
53
381486R1
SNAP RING,#187, 1.759", Ext
retaining
2шт.
54
527771R1
PINION
GEAR driven, 31 T
1шт.
55
381486R1
SNAP RING,#187, 1.759", Ext
retaining
1шт.
56
527770R1
GEAR
46/33 T
1шт.
57
70039C1
SHIM KIT
consists of: 2, 0.356 mm, 2, 0.610 mm, 2, 0.914 mm and 1 manual
1шт.
1277488C2
SEAL KIT
consists of: 2 sleeves and 1 clutch shaft oil seal
1шт.
355740R1
O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro
1шт.
3129030R2
SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk
1шт.
Выбрано товаров: 81
