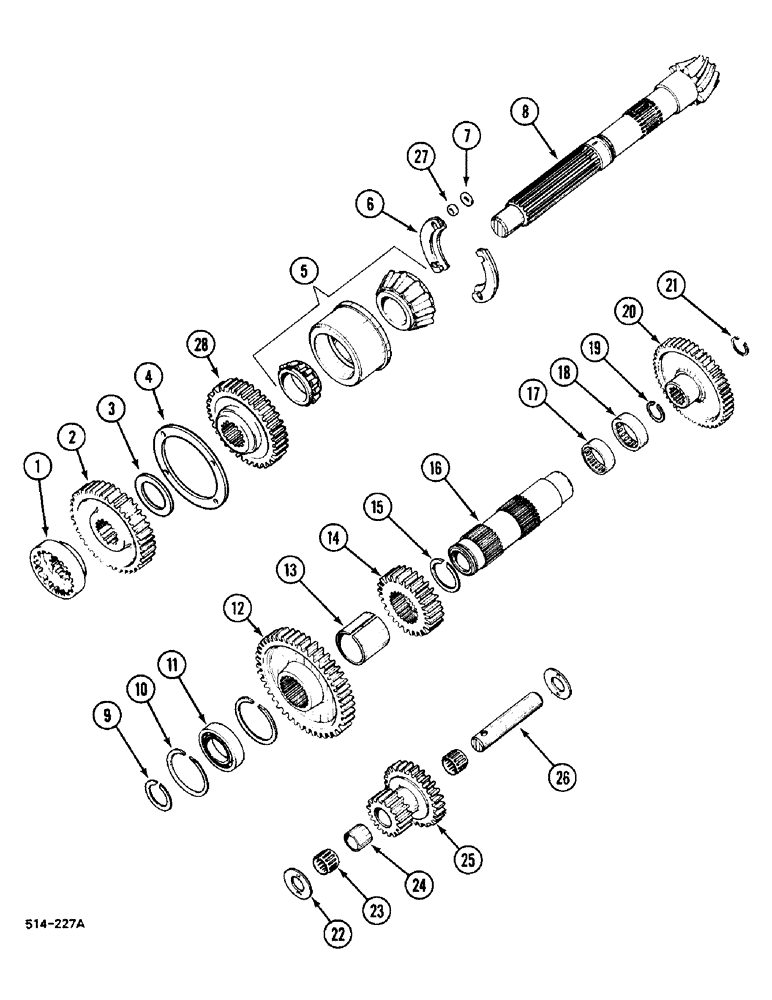

Запчасти Case IH 248 (6-384) - RANGE TRANSMISSION - IN REAR FRAME, FOR 4 WHEEL DRIVE, 258, 485, 585 (06) - POWER TRAIN

1

1277137C1

COLLAR ASSY.

1шт.

2

1277141C1

GEAR

forward-reverse, speed train type A and D, 41 T

1шт.

2

1286470C1

GEAR

forward-reverse, speed train type B and E, 42 T

1шт.

3

65788C1

WASHER

1шт.

4

65423C1

SHIM KIT

1шт.

5(a)

1289706C91

BEARING,52.4mm ID x 116.84mm OD x 66.67mm W

ASSEMBLY

1шт.

5(b)

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

ASSEMBLY, model 485 and 585 tractor

1шт.

6(a)

83299C1

RETAINER

ASSEMBLY, model 485 and 585 ractor

2шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

6(b)

65784C2

RETAINER

ASSEMBLY, model 485 and 585 tractor

2шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Model 485 and 585 tractor

4шт.

7(a)

65787C1

WASHER

3шт.

7(b)

65787C1

WASHER

4шт.

8

SHAFT, see bevel gear main shaft

1шт.

9

327068R1

RING, SNAP

RING SNAP retaining

1шт.

10

399832R1

RING, SNAP

RING SNAP retaining

2шт.

11

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

1шт.

G10418

BEARING, BALL

1шт.

360635R91

BEARING, BALL

1шт.

528101R91

BEARING, BALL

1шт.

528102R91

BEARING, BALL

1шт.

3047867R91

BEARING, BALL

1шт.

3069304R91

BALL BEARING

optional

1шт.

12

404097R1

GEAR

46 T

1шт.

13

399835R1

BUSHING

1шт.

14

404100R1

PINION

GEAR low range, speed train type A and D, 27 T

1шт.

14

103150C1

PINION

GEAR low range, speed train type B and E, 24 T

1шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

retaining

1шт.

16(a)

94403C1

SHAFT

1шт.

16(b)

404096R1

SHAFT

model 485 and 585 tractor

1шт.

17(a)

94376C91

NEEDLE BEARING,47.625 mm ID x 57.162 mm OD x 25.4 mm

needle

1шт.

17(b)

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

model 485 and 585 tractor

1шт.

17(b)

527746R91

BEARING, NEEDLE

optional, model 485 and 585 tractor

1шт.

18

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

1шт.

527747R91

BEARING, NEEDLE

optional, pump drive gear

1шт.

19

399837R1

SNAP RING,#118, 1.121", Ext

retaining

1шт.

20

94404C1

PINION

GEAR, pump drive, 55 T

1шт.

21

533266R1

RING, SNAP

RING SNAP retaining

1шт.

22

3112846R1

THRUST WASHER

2шт.

23

3112844R91

BEARING, NEEDLE

2шт.

3113041R91

ROLLER CAGE BEARING

needle, optional

2шт.

24

3112845R1

SPACER

1шт.

25

3112843R1

GEAR

reverse idler, speed train A and D, 18/27 T

1шт.

25

70298C1

PINION

reverse idler, speed train type B and E, 20/24 T

1шт.

26

399838R3

SHAFT

1шт.

366281R1

PIN,3/8" x 2", Coiled

Model 485 and 585 tractor

1шт.

27(a)

94323C1

BUSHING

1шт.

28(b)

82354C1

GEAR

1шт.
