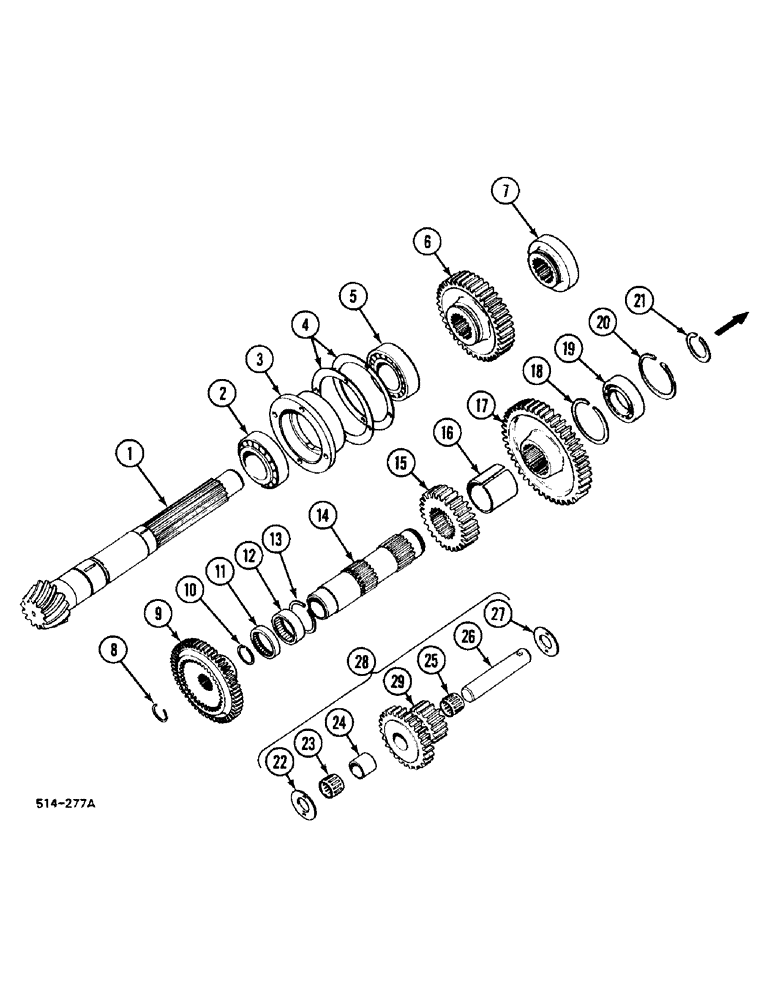

Запчасти Case IH 248 (6-370) - RANGE TRANSMISSION - IN REAR FRAME (06) - POWER TRAIN

1(a)

94252C1

GEAR, BEVEL

BEVEL GEAR SHAFT 11 T, drive bevel gear 53 T, model 585 tractor, for Switzerland

1шт.

(a)

99449C1

GEAR, BEVEL

BEVEL GEAR SHAFT 12 T, with drive bevel gear 53 T, drive train AR/BR

1шт.

1(a)

99450C1

GEAR-SET

with drive bevel gear 51 T, drive train AS, model 385 and 485 tractor

1шт.

1(b)

1954073C1

GEAR

with drive bevel gear 53 T

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSEMBLY

1шт.

2

399824R91

ROLLER BEARING

BEARING ASSEMBLY

1шт.

2

1502181C91

BALL BEARING

ASSEMBLY, main shaft rear, optional

1шт.

3

399825R1

BEARING CUP

CAGE

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

4

65423C1

SHIM KIT

1шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSEMBLY

1шт.

5

399822R91

ROLLER BEARING

BEARING ASSEMBLY

1шт.

5

1502180C91

BALL BEARING

ASSEMBLY main shaft front, optional

1шт.

6

1286469C1

GEAR

forward-reverse, speed train type A and D, 40 T

1шт.

6

1286470C1

GEAR

forward-reverse, speed train type B and E, 42 T

1шт.

7

1277137C1

COLLAR ASSY.

1шт.

8

533266R1

RING, SNAP

RING SNAP retaining

1шт.

9

94404C1

PINION

GEAR pump drive, 55 T

1шт.

10

399837R1

SNAP RING,#118, 1.121", Ext

retaining

1шт.

11

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

1шт.

11

527747R91

BEARING, NEEDLE

optional

1шт.

12(a)

94376C91

NEEDLE BEARING,47.625 mm ID x 57.162 mm OD x 25.4 mm

needle

1шт.

12(b)

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

1шт.

12(b)

527746R91

BEARING, NEEDLE

1шт.

13

398264R1

SNAP RING,#215, 2.026", Ext

retaining

1шт.

14(a)

99403C1

SHAFT

1шт.

14(b)

404096R1

SHAFT

1шт.

15

404100R1

PINION

GEAR low range, speed train type A and D, 27 T

1шт.

15

103150C1

PINION

GEAR low range, speed train type B and E, 24 T

1шт.

16

399835R1

BUSHING

1шт.

17

404097R1

GEAR

constant mesh, 46 T

1шт.

18

399832R1

RING, SNAP

RING SNAP retaining

1шт.

19

G10418

BEARING, BALL

1шт.

19

360635R91

BEARING, BALL

1шт.

19

528101R91

BEARING, BALL

1шт.

19

528102R91

BEARING, BALL

1шт.

19

3047867R91

BEARING, BALL

1шт.

19

3069304R91

BALL BEARING

1шт.

19

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

1шт.

19

71069C91

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

countershaft front, optional

1шт.

20

399832R1

RING, SNAP

RING SNAP retaining

1шт.

21

A27089

SNAP RING,2.36mm Thk, Ext

RING retaining

1шт.

22

3112846R1

THRUST WASHER

1шт.

23

3112844R91

BEARING, NEEDLE

1шт.

23

3113041R91

ROLLER CAGE BEARING

needle, reverse idler, optional

1шт.

24

3112845R1

SPACER

1шт.

25

3112844R91

BEARING, NEEDLE

1шт.

25

3113041R91

ROLLER CAGE BEARING

needle, reverse idler, optional

1шт.

26

399838R3

SHAFT

reverse, idler

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

27

3112846R1

THRUST WASHER

1шт.

28

3112847R91

KIT

PACKAGE repair, reverse idler, speed train type A and D

1шт.

3112843R1

GEAR

18/27 T

1шт.

3112844R91

BEARING, NEEDLE

2шт.

3113041R91

ROLLER CAGE BEARING

needle, optional

2шт.

3112845R1

SPACER

1шт.

3112846R1

THRUST WASHER

2шт.

399838R3

SHAFT

1шт.

28

3112848R92

10 NEEDLE BRG KIT

PACKAGE repair, reverse, idler, speed train type B and E

1шт.

70298C1

PINION

GEAR 20/24 T

1шт.

3112844R91

BEARING, NEEDLE

2шт.

3113041R91

ROLLER CAGE BEARING

needle, optional

2шт.

3112845R1

SPACER

1шт.

3112846R1

THRUST WASHER

2шт.

399838R3

SHAFT

1шт.

29

70298C1

PINION

GEAR 20/24 T, reverse idler, speed train type B and E

1шт.

29

3112843R1

GEAR

18/27 T, reverse idler, speed train type A and D

1шт.
