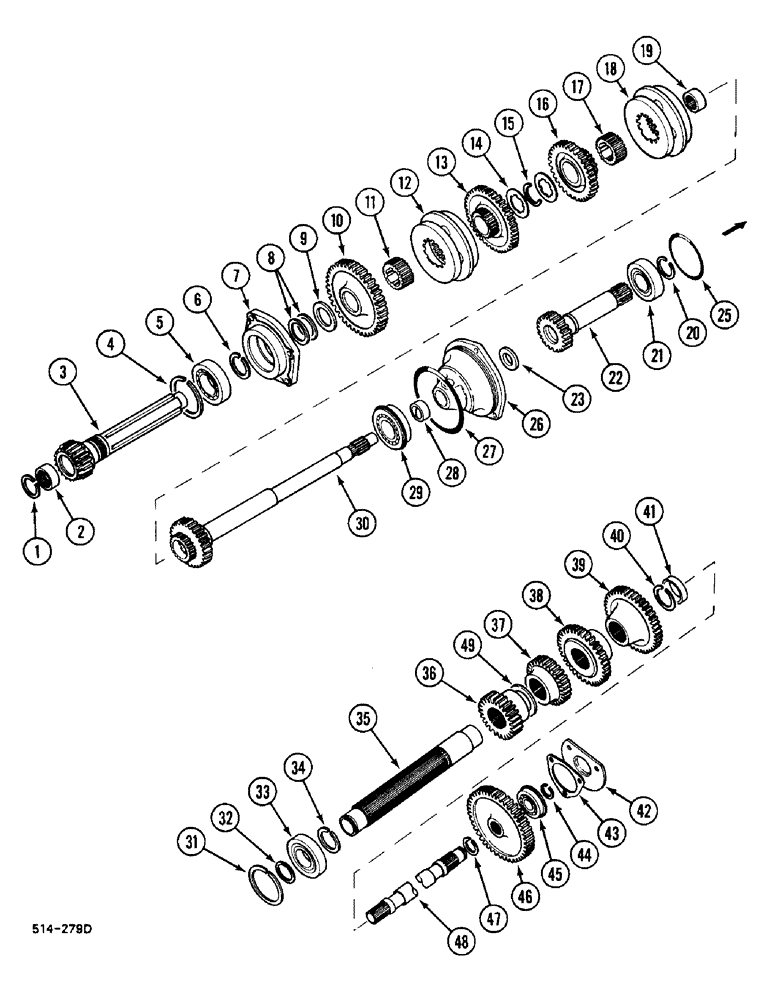

Запчасти Case IH 248 (6-358) - SPEED TRANSMISSION - IN CLUTCH HOUSING (06) - POWER TRAIN

1

66014C1

SNAP RING

retaining

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

needle

1шт.

3

65258C1

SHAFT

1шт.

3

3118323R1

SHAFT

version with torque amplifier

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING retaining

1шт.

5

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

5

3048701R91

BALL BEARING

BEARING ball

1шт.

5

704234R91

BALL BEARING

BEARING ball

1шт.

5

71271C91

BALL BEARING

BEARING ball, optional

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING retaining

1шт.

7

534411R1

BEARING ASSY

CAGE ASSEMBLY

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

sealing

2шт.

9

398332R1

WASHER

1шт.

10

66153C2

PINION

GEAR 45 T, model 258 and 585 tractor

1шт.

10

398269R2

GEAR

speed train type A and D, 44 T

1шт.

10

398331R2

PINION

GEAR 1st speed, speed train type Band E, 41 T

1шт.

11

398325R1

HUB

1st and 2nd speed

1шт.

12

65793C2

SYNCHRONIZER

PACKAGE service

1шт.

13

398270R3

PINION

GEAR 2nd speed, speed train type A and D, 39 T

1шт.

13

398330R3

PINION

GEAR 2nd speed, speed train type B and E, 33 T

1шт.

14

398328R2

THRUST WASHER

2шт.

15

398329R1

CIRCLIP

retaining

1шт.

16

398330R3

PINION

GEAR 3rd speed, speed train type A and D, 33 T

1шт.

16

398327R3

PINION

GEAR 4th speed, speed train type B and E, 24 T

1шт.

17

398325R1

HUB

3rd and 4th speed

1шт.

18

65793C2

SYNCHRONIZER

PACKAGE service

1шт.

19

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

1шт.

20

379511R1

SNAP RING,#177, 1.657", Ext

retaining

1шт.

21

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

21

65354C91

BALL BEARING

BEARING ball

1шт.

21

67653C91

BEARING

ball

1шт.

1502094C91

BALL BEARING,44.9945 mm ID x 84.9945 mm OD x 18.94 mm

ball, optional

1шт.

22

92713C1

SHAFT

PTO drive, 21 T

1шт.

23

SEAL, order: P/N 1277488C2

1шт.

25

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

26

398318R41

CAGE ASSY.

with Ref. 28

1шт.

27

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

28

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

clutch, shaft

1шт.

29

70126C91

BALL BEARING

BEARING ball

1шт.

29

398323R91

BALL BEARING

BEARING ball

1шт.

29

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

29

42347D

BALL BEARING

BEARING ball

1шт.

29

3066862R91

BALL BEARING

BEARING ball

1шт.

29

3067617R91

BEARING, BALL

1шт.

29

3066860R91

BALL BEARING

BEARING ball, optional

1шт.

30

92717C1

SHAFT

clutch

1шт.

31

574964R1

RING, SNAP

RING SNAP retaining

1шт.

32

379511R1

SNAP RING,#177, 1.657", Ext

retaining

1шт.

33

452883R91

BALL BEARING

BEARING ball

1шт.

33

13176D

BALL BEARING,2.257" ID x 3.3465" OD x 0.748"

BEARING ball

1шт.

33

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

33

67646C91

BALL BEARING

BEARING ball

1шт.

33

114577C91

BEARING, BALL,44.994 mm ID x 84.9925 mm OD x 18.94 mm

optional

1шт.

34

398264R1

SNAP RING,#215, 2.026", Ext

retaining

1шт.

35

404089R2

SHAFT

speed transmission

1шт.

36

66152C1

PINION

GEAR, 22 T

1шт.

404095R1

GEAR

speed train type A and D, 23 T

1шт.

36

404093R1

GEAR

GEAR 1st speed, speed train type B and E, 26T

1шт.

37

404094R1

PINION

GEAR 2nd speed, speed train type A and D, 28T

1шт.

37

404092R1

PINION

GEAR 2nd speed, speed train type B and E, 34 T

1шт.

38

404092R1

PINION

GEAR 3rd speed, speed train type A and D, 34 T

1шт.

38

404091R1

PINION

GEAR 4th speed, speed train type B and E, 43 T

1шт.

39

404090R1

PINION

GEAR constant mesh, 39 T

1шт.

40

398264R1

SNAP RING,#215, 2.026", Ext

retaining

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

1шт.

41

527746R91

BEARING, NEEDLE

optional

1шт.

42

398259R1

LARGE PLATE

PLATE, LARGE RETAINER

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

43

92648C1

GASKET,0.5mm Thk

1шт.

44

A32438

SNAP RING

RING retaining

1шт.

45

69384C91

BALL BEARING

BEARING ball

1шт.

45

65353C91

BALL BEARING

BEARING ball

1шт.

45

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

1шт.

45

67654C91

BALL BEARING

BEARING ball

1шт.

45

1502192C91

BALL BEARING,25 mm ID x 67.7 mm OD x 17 mm

BEARING ball

1шт.

45

80491C91

BEARING ASSY

ball, optional

1шт.

46

404214R1

GEAR

PTO driven, 46 T

1шт.

47

399837R1

SNAP RING,#118, 1.121", Ext

retaining

1шт.

48(a)

99439C1

SHAFT

1шт.

48(b)

536748R1

SHAFT ASSY.

PTO driven

1шт.

49

1954075C1

SPACER

speed train type D, model 585 tractor

1шт.

1277488C2

SEAL KIT

PACKAGE seals, consists of: 1 sleeve, 1 oil seal, clutch shaft, not illustrated

1шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

not illustrated

1шт.

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

not illustrated

1шт.
