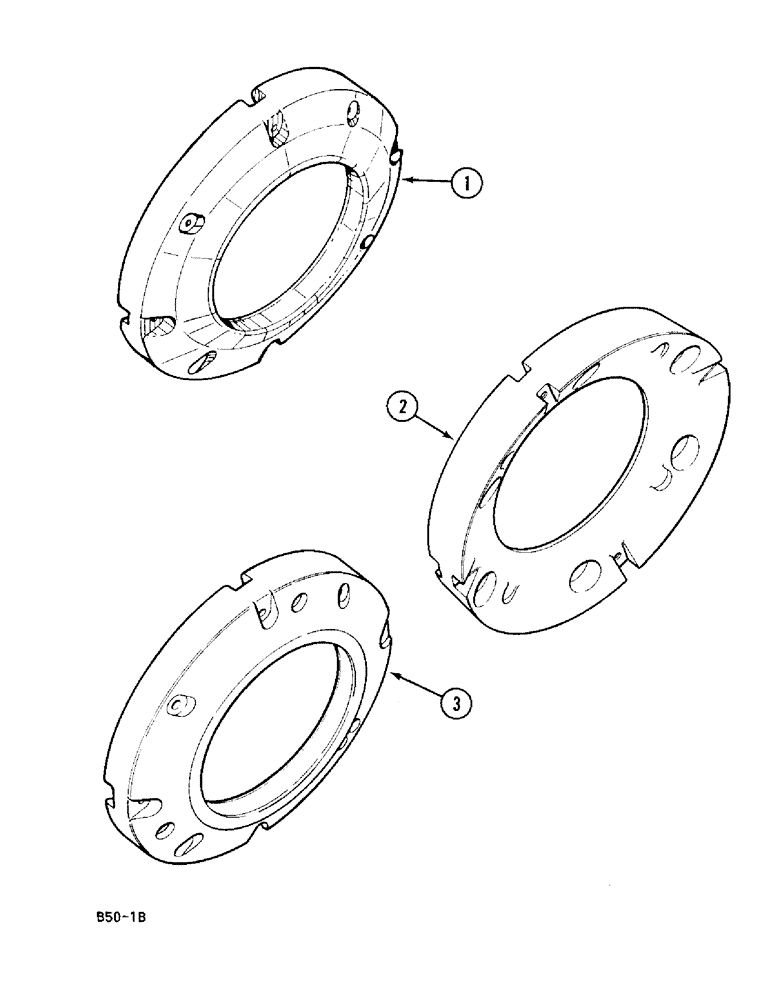

Запчасти Case IH 248 (6-356) - REAR WHEEL WEIGHT (06) - POWER TRAIN

1

406857R5

WEIGHT

120 lbs, used with wheels greater than 32 inch, models 248, 385, 485 tractor

2шт.

3123374R1

SPACER

models 248, 385, 485 tractor

8шт.

180163

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

BOLT, models 248, 385, 485 tractor

8шт.

21029R1

WASHER

models 248, 385, 485 tractor

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

Models 248, 385, 485 tractor

8шт.

271501

SOCKET

models 248, 385, 485 tractor

8шт.

1

406857R5

WEIGHT

120 lbs, used with wheels greater than 36, 38 inch, models 258, 385, 485, 585 tractor

2шт.

180163

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

BOLT, models 258, 385, 485, 585 tractor

8шт.

1265250C1

SPACER

models 258, 385, 485, 585 tractor

8шт.

21029R1

WASHER

models 258, 385, 485, 585 tractor

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

Models 258, 385, 485, 585 tractor

8шт.

NLS

NO LONGER SERVICED

models 258, 385, 485, 585 tractor

8шт.

1

406857R5

WEIGHT

120 lbs, used with wheels greater than 32, 36, 38 inch

4шт.

272406

PLUNGER,Hex, 7/16" - 14 x 5", Gr 5

8шт.

21029R1

WASHER

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

271501

SOCKET

8шт.

2

not used

1шт.

3

not used

1шт.
