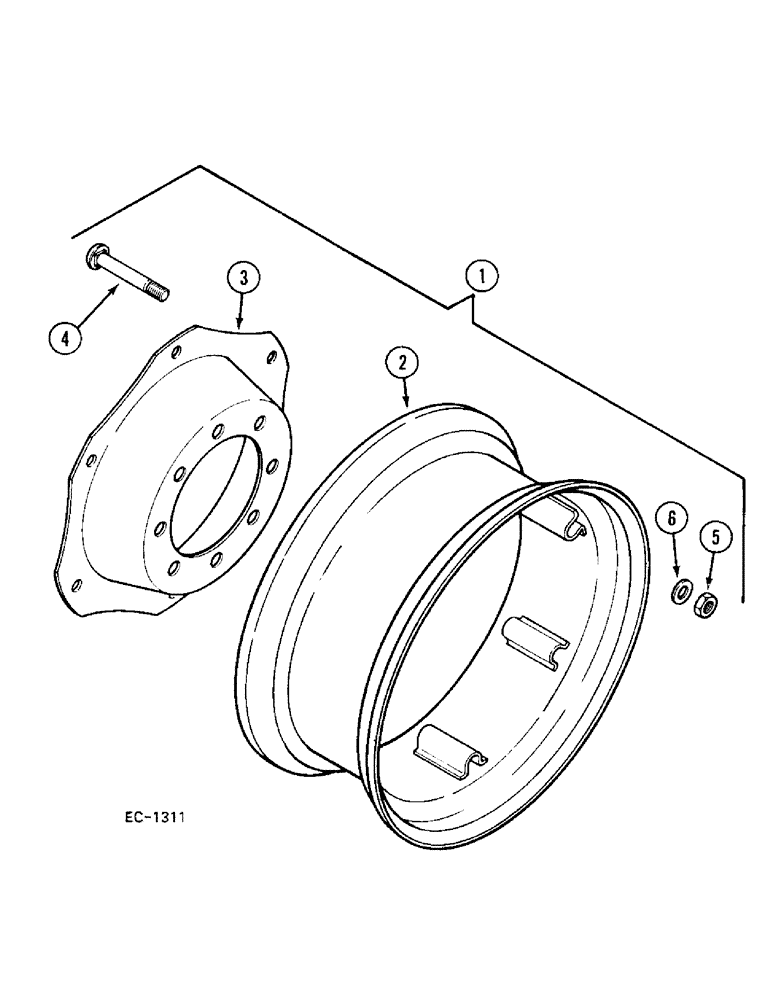

Запчасти Case IH 248 (5-348) - FRONT WHEELS - 4 WHEEL DRIVE TRACTOR,485, 585: 18001- (06) - POWER TRAIN

1(a)

89768C91

WHEEL ASSY.

Lemmerz, W10 x 24

2шт.

1(b)

89773C91

WHEEL ASSY.

Nagbol, W10 x 24

2шт.

1(c)

89771C91

WHEEL ASSY.

Delachaux, W10 x 24

2шт.

1(d)

99816C91

WHEEL ASSEMBLY, Delachaux, W7- 24, model 485

2шт.

1(e)

99804C91

WHEEL ASSEMBLY, NAGBOL, W7- 24, model 485

2шт.

2(a)

89769C1

RIM

WHEEL

2шт.

2(b)

89774C1

RIM

WHEEL

2шт.

2(c)

89772C1

RIM

WHEEL

2шт.

2(d)

99807C1

RIM

WHEEL model 485

2шт.

2(e)

99805C1

RIM

WHEEL model 485

2шт.

3(a)

89737C1

DISC, WHEEL

24 inch

2шт.

3(b)

89743C1

DISC, WHEEL

24 inch

2шт.

3(c)

89740C1

DISC, WHEEL

24 inch

2шт.

3(d)

89740C1

DISC, WHEEL

24 inch, model 485

2шт.

3(e)

89743C1

DISC, WHEEL

24 inch, model 485

2шт.

4(a)

3404231R1

BOLT

M16 x 120 mm

12шт.

4(b)

89744C2

BOLT

BOLT

12шт.

4(c)

3404145R1

SCREW

BOLT, M16

12шт.

4(d)

3404145R1

SCREW

BOLT, M16, model 485

12шт.

4(e)

89744C2

BOLT

BOLT, model 485

12шт.

5(a)

3404233R1

NUT

M16

12шт.

5(b)

89745C2

NUT

12шт.

5(c)

3404144R1

NUT

12шт.

5(d)

3404144R1

NUT

model 485

12шт.

5(e)

89745C2

NUT

model 485

12шт.

6(a)

3404232R1

WASHER

17 mm

12шт.

6(b)

89746C2

WASHER

12шт.

6(c)

89669C1

WASHER

12шт.

6(d)

89669C1

WASHER

model 485

12шт.

6(e)

89746C2

WASHER

model 485

12шт.
