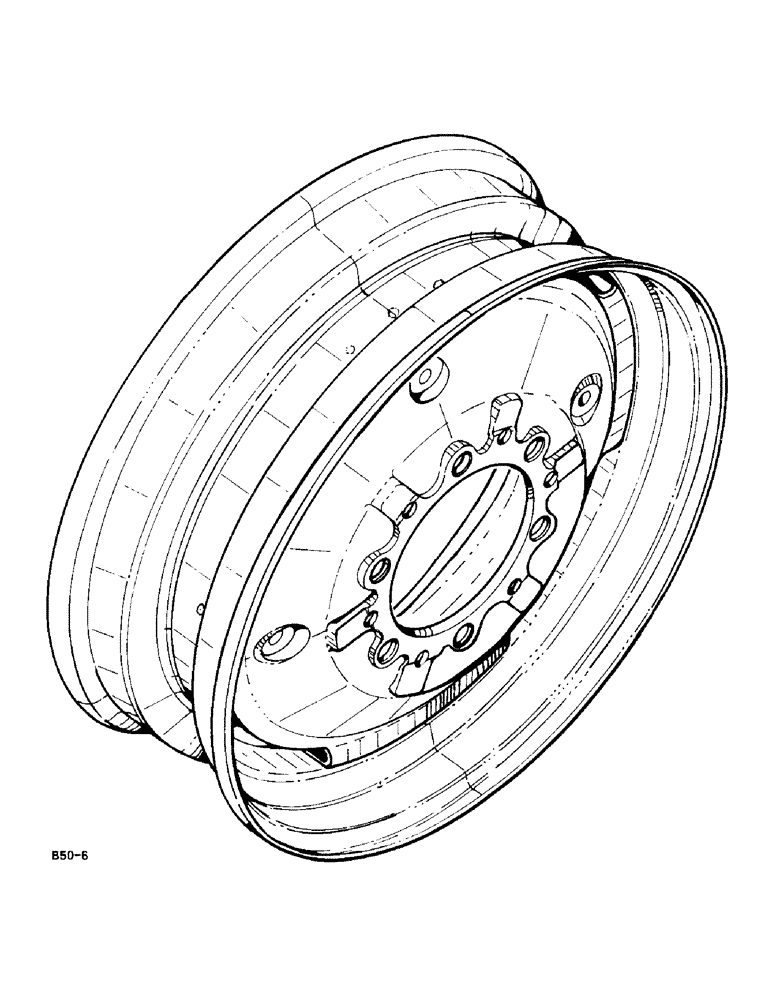

Запчасти Case IH 248 (5-344) - FRONT WHEELS (06) - POWER TRAIN

704675R91

RIM

WHEEL ASSEMBLY, 4.50F x 16, for tires 5.50 x 16/6.00 x 16

2шт.

3048866R91

WHEEL

WHEEL ASSEMBLY, 4.50F x 16, for tires 5.50 x 16/6.00 x 16

2шт.

751734R91

WHEEL ASSY.

5.50F x 16, for tires 5.50 x 16

2шт.

3114166R91

WHEEL ASSY.

5.50F x 16, for tires 7.50 x 16

2шт.

99939C1

WHEEL

ASSEMBLY, 6.50F x 16, for use with cameron gardner loader, model 248 tractor

2шт.

3121425R91

WHEEL ASSY.

5.50 x 18, for tires 7.50 x 18, model 258 and 585 tractor

2шт.

3121426R91

WHEEL ASSY.

5.50 x 18, for tires 7.50 x 18, model 258 and 585 tractor

2шт.

1282560C1

WHEEL ASSY.

9.00 x 16, for tires 10.00 x 16, models 248, 258, 485, 585 tractor

2шт.

3125942R91

WHEEL ASSY.

W7-24 Nagbol, model 258: -957, 585: -12313 for 4 wheel drive, includes all P/N's not illustrated

2шт.

1500205C1

RIM

WHEEL model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

3125943R91

WHEEL ASSY

W8-24 Nagbol, model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

1500206C1

RIM

WHEEL model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

3125944R91

WHEEL ASSY.

W9-24, model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

1500207C1

RIM

WHEEL model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

1500208C1

DISC

model 258 and 585 tractor, not illustrated, for 4 wheel drive tractors

2шт.

1500209C2

BOLT

model 258 and 585 tractor, not illustrated, for 4 wheel drive tractors

12шт.

1500211C1

WASHER

model 258 and 585 tractor, for 4 wheel drive, not illustrated

12шт.

1500210C1

NUT

model 258 and 585 tractor, for 4 wheel drive, not illustrated

12шт.

3147863R91

RIM

WHEEL ASSEMBLY, W10-24, model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

3147865R1

DISC, WHEEL

W10 x 24, model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

114-614

BOLT,Hex, 5/8" - 18 x 3", Gr 5

76 mm, model 258 and 585 tractor, for 4 wheel drive, not illustrated

12шт.

425-1110

NUT,5/8"-18, G5

model 258 and 585 tractor, for 4 wheel drive, not illustrated

12шт.

492-11062

BEARING WASHER,5/8"

Model 258 and 585 tractor, for 4WD, Not illustrated

12шт.

1502033C91

WHEEL

WHEEL ASSEMBLY, W10-24, model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

1502034C1

DISC, WHEEL

model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

1502035C1

RIM

WHEEL ASSEMBLY, model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

1500210C1

NUT

model 258 and 585 tractor, for 4 wheel drive, not illustrated

12шт.

1500209C1

BOLT

model 258 and 585 tractor, for 4 wheel drive, not illustrated

12шт.

1502036C1

WASHER

model 258 and 585 tractor, for 4 wheel drive, not illustrated

12шт.

1500774C92

WHEEL ASSY.

model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

1500206C1

RIM

WHEEL model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

1502034C1

DISC, WHEEL

model 258 and 585 tractor, for 4 wheel drive, not illustrated

2шт.

1500209C1

BOLT

model 258 and 585 tractor, for 4 wheel drive, not illustrated

12шт.

1500210C1

NUT

model 258 and 585 tractor, for 4 wheel drive, not illustrated

12шт.

1502036C1

WASHER

model 258 and 585 tractor, for 4 wheel drive, not illustrated

12шт.
