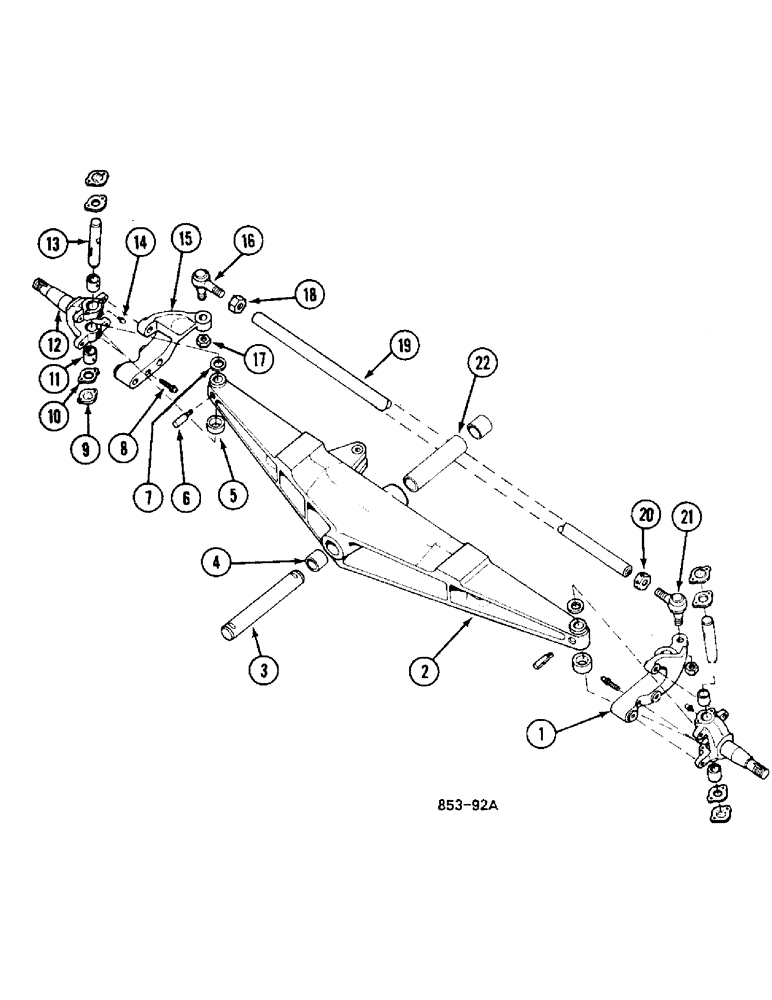

Запчасти Case IH 248 (5-328) - FRONT AXLE, 248 (06) - POWER TRAIN

1

99940C1

ARM

left

1шт.

271749

PLATE,Hex, 5/8" - 18 x 2 1/4", Gr 5

BOLT

1шт.

414-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

BOLT

2шт.

425-1110

NUT,5/8"-18, G5

3шт.

2

99936C1

CENTER AXLE

ASSEMBLY

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

2шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

2шт.

3

85999C1

PIN

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

1шт.

4

378813R1

BUSHING

2шт.

5

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

2шт.

6

62798H

KEY

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

7

61554R1

WASHER

SHIM

1шт.

7

70586R1

SHIM

1шт.

8

219-7

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

9

70590R1

CAP

4шт.

51124V

SCREW

8шт.

116120

LOCK WASHER,5/16"

8шт.

10

70591R1

GASKET

4шт.

11

70589R1

BRONZE BUSHING,31.37mm ID x 34.66mm OD x 40.21mm L

4шт.

12

112775R11

STEERING KNUCKLE

ASSEMBLY

2шт.

12

1213434C91

KNUCKLE

ASSY. with 11, optional

2шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

2шт.

13

70594R1

FITTING

PIN

2шт.

14

NLS

NO LONGER SERVICED

LUBRICATOR

2шт.

15

99941C1

ARM

right

1шт.

414-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

BOLT

1шт.

414-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

BOLT

2шт.

425-1110

NUT,5/8"-18, G5

3шт.

16

99945C1

END

JOINT ball, right

1шт.

1332991C1

SEAL

NUT

1шт.

17

425-1910

SLOTTED NUT,5/8"-18, G5, Thk

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

2шт.

18

374062C1

NUT

RH thread

1шт.

19

81472C1

TUBE

1шт.

20

374061C1

NUT

LH thread

1шт.

21

99944C1

END

JOINT ball, left

1шт.

1332991C1

SEAL

NUT

1шт.

22

530975R2

SPACER

1шт.

518505R1

HEADED PIN,3/4" x 3"

not illustrated

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

(6 x 45 mm), Not illustrated

1шт.
