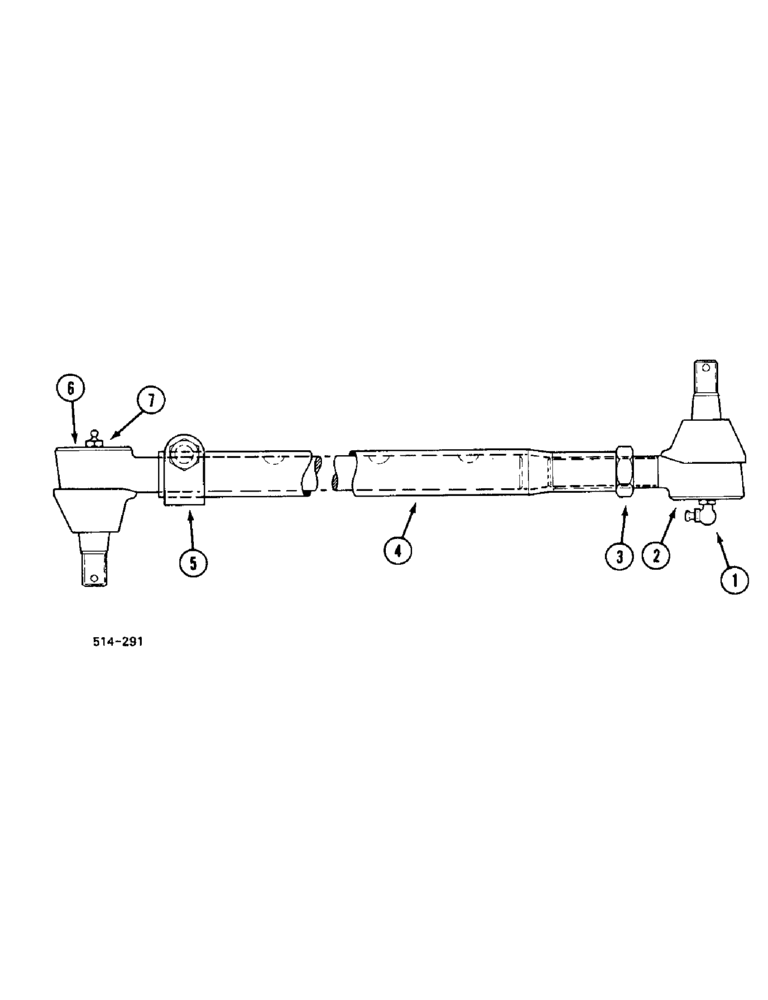

Запчасти Case IH 248 (5-326) - TIE ROD (06) - POWER TRAIN

67528C91

ROD

ROD ASSEMBLY, I.H., service parts are Ref. 1 thru 7, not available separately

2шт.

1

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

2

527658R91

BALL JOINT

right

1шт.

2

527658R91GV

TIE-ROD

Value, Tie Rod End

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

1шт.

358900R1

SEAL

BOOT

1шт.

3

390686R1

JAM NUT

1шт.

4

67529C1

TUBE,0.766" ID, 1.005" OD, 16.21" Length

1шт.

5

43747D

CLAMP

1шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

1шт.

9421096

LOCK WASHER,7/16"

1шт.

271505

BODY

1шт.

6

65079C91

END

JOINT ball, left

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

1шт.

358900R1

SEAL

BOOT

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
