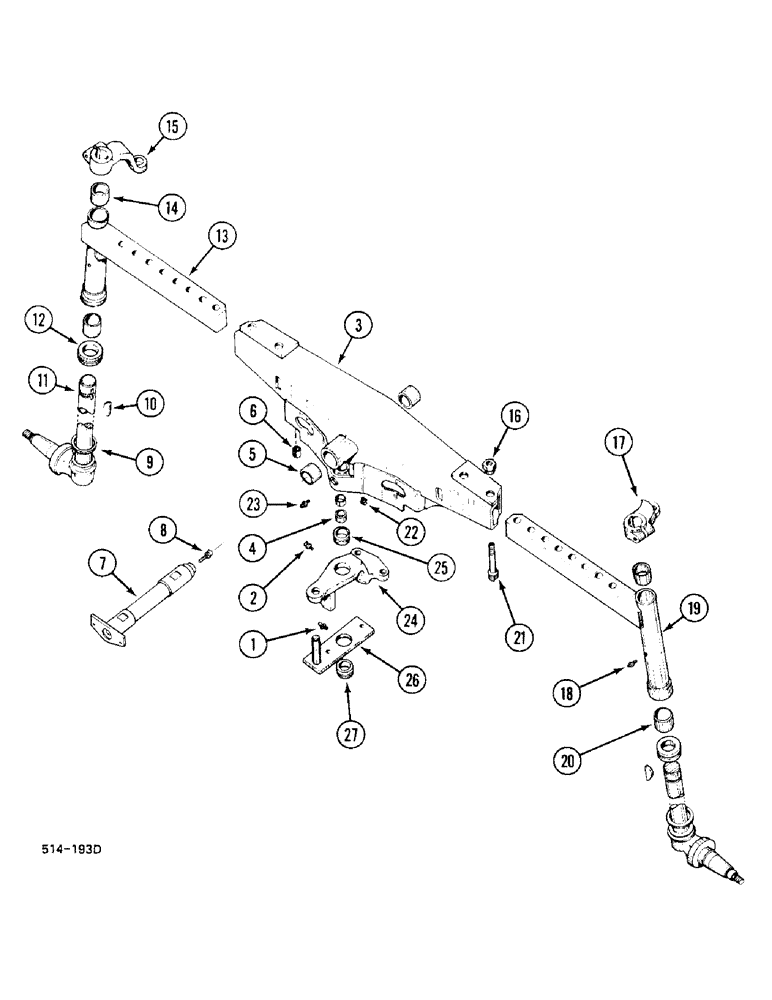

Запчасти Case IH 248 (5-318) - ADJUSTABLE FRONT AXLE - STRAIGHT (06) - POWER TRAIN

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

69881C92

FRONT AXLE

ASSEMBLY

1шт.

4

405574R1

BUSHING

2шт.

4

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

optional

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

2шт.

6

3125304R1

BUSHING

1шт.

7

539128R1

SHAFT ASSY.

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

8

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

67535C91

KNUCKLE

ASSY. model 248 and 258 tractor

2шт.

11

405840R12

KNUCKLE

ASSY. low spindle, models 385, 485, 585 tractor

2шт.

11

67526C91

KNUCKLE

ASSY. model 258 tractor

2шт.

11

527292R92

STEERING KNUCKLE

high spindle, models 385, 485, 585 tractor

2шт.

11

534288R92

KNUCKLE

ASSY. low / low spindle, models 248, 258, 385, 485 tractor

2шт.

12

405831R91

BEARING

2шт.

12

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

2шт.

12

369131R91

THRUST BEARING

optional

2шт.

13

67502C91

EXTENSION ASSY.

right, high spindle, models 258, 385, 485, 585 tractor

1шт.

13

67533C91

EXTENSION ASSY.

right, low spindle

1шт.

13

3116476R91

EXTENSION ASSY.

right, low /low spindle, models 248, 258, 385, 485 tractor

1шт.

14

376099R1

BUSHING

2шт.

15

67525C1

ARM

right

1шт.

102637

NUT,1/2"-13, G5

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405576R1

NUT

4шт.

17

67524C1

ARM

left

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

18

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

2шт.

19

67501C91

EXTENSION ASSY.

left, high spindle, models 258, 385, 485, 585 tractor

1шт.

19

67532C91

EXTENSION ASSY.

left, low spindle

1шт.

19

3116475R91

EXTENSION ASSY.

left, low / low spindle, models 248, 258, 385, 485 tractor

1шт.

20

376099R1

BUSHING

2шт.

21

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

22

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

23

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

1шт.

24

67499C91

ARM ASSY.

1шт.

25

379748R1

BUSHING

1шт.

26

405580R11

BAR ASSY.

1шт.

67976C1

PLATE, LOCKING

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

27

379748R1

BUSHING

1шт.
