Запчасти Case IH 248 (6-590) - STEERING CYLINDER - 4 WHEEL DRIVE (05) - STEERING

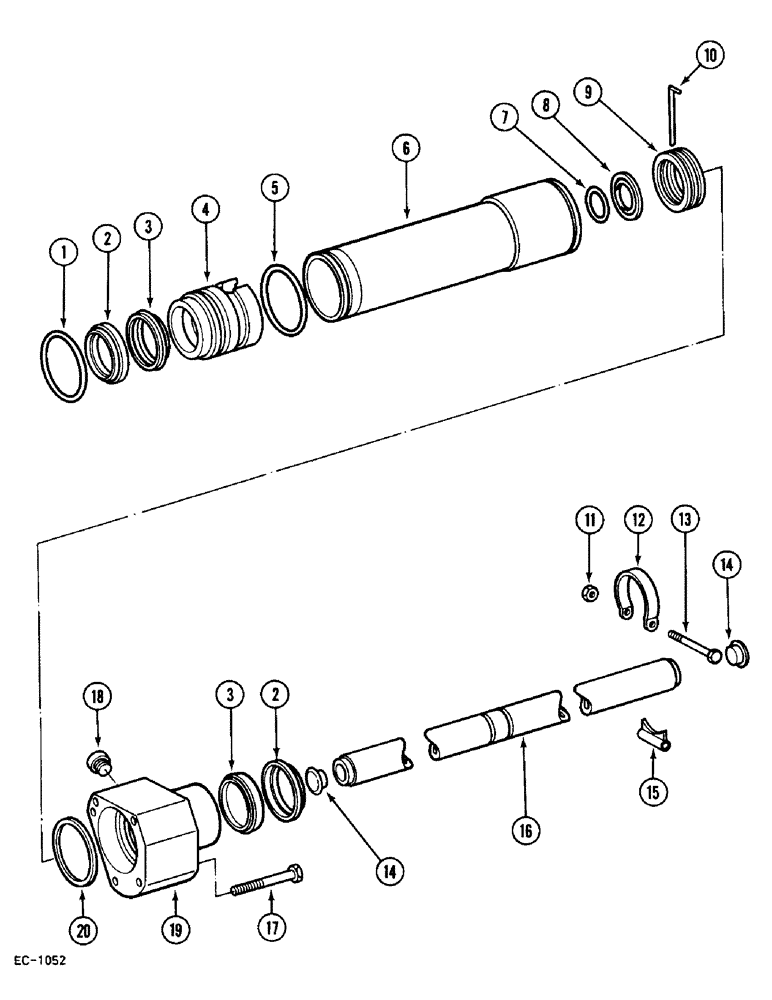

Схема запчастей Case IH 248 - (6-590) - STEERING CYLINDER - 4 WHEEL DRIVE (05) - STEERING
8
10
12
11
20
3
2
5
17
9
14
15
3
4
14
16
6
7
19
1
18
13
2

Артикул

Название

Примечание

Количество

81438C91

CYLINDER

ASSEMBLY, APL 330, consists of: Ref. 1 - 20, model 485 tractor

1шт.

81456C91

CYLINDER

ASSEMBLY, APL 325, consists of: Ref. 1 thru 20, model 485 and 585 tractord

1шт.

81446C91

STEERING CYLINDER

ASSEMBLY, APL 330, model 258 and 585 tractor

1шт.

81335C91

STEERING CYLINDER

ASSEMBLY, APL 335, consists of: Ref. 1 thru 20, model 258 tractor

1шт.

1

81339C1

O-RING,62mm ID x 3mm Width

1шт.

2

81340C1

SCRAPER RING

2шт.

3

81341C1

RING,32mm ID x 40mm OD x 6mm Thk

2шт.

4

81338C1

GUIDE

1шт.

5

81337C1

O-RING,3mm Thk x 64mm ID

2шт.

6

81336C1

HYD CYL SLEEVE

1шт.

7

81345C1

O-RING,32mm ID x 3mm Width

1шт.

8

81346C1

GASKET

1шт.

9

81343C1

PISTON

1шт.

10

81344C1

ELECTRICAL WIRE

WIRE

1шт.

11

43362

NUT,M8 x 1.25, Cl 10

2шт.

12

99094C1

PLATE

STOP

2шт.

13

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

BOLT

2шт.

14

81359C1

PLUG

2шт.

15

81361C1

LOCKING PLATE

STOP

2шт.

16

81342C1

ROD

1шт.

17

30031R1

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

5шт.

18

81362C1

PLUG

SPARE PART

1шт.

19

81358C1

BLOCK

GUIDE

1шт.

20

81348C1

SHIM

DISK, 1.0 mm

1шт.

81349C1

SHIM

DISK, 1.1 mm

1шт.

81350C1

SHIM

DISK, 1.2 mm

1шт.

81351C1

SHIM

DISK, 1.3 mm

1шт.

81352C1

SHIM

DISK, 1.4 mm

1шт.

81353C1

SHIM

DISK, 1.5 mm

1шт.

81354C1

SHIM

DISK, 1.6 mm

1шт.

81355C1

SHIM

DISK, 1.7 mm

1шт.

81356C1

SHIM

DISK, 1.8 mm

1шт.

81357C1

SHIM

DISK, 0.9 mm

1шт.

81363C1

BREATHER ASSY.

PACKAGE, not illustrated

1шт.

81347C1

RING

not illustrated

1шт.

Выбрано товаров: 35
