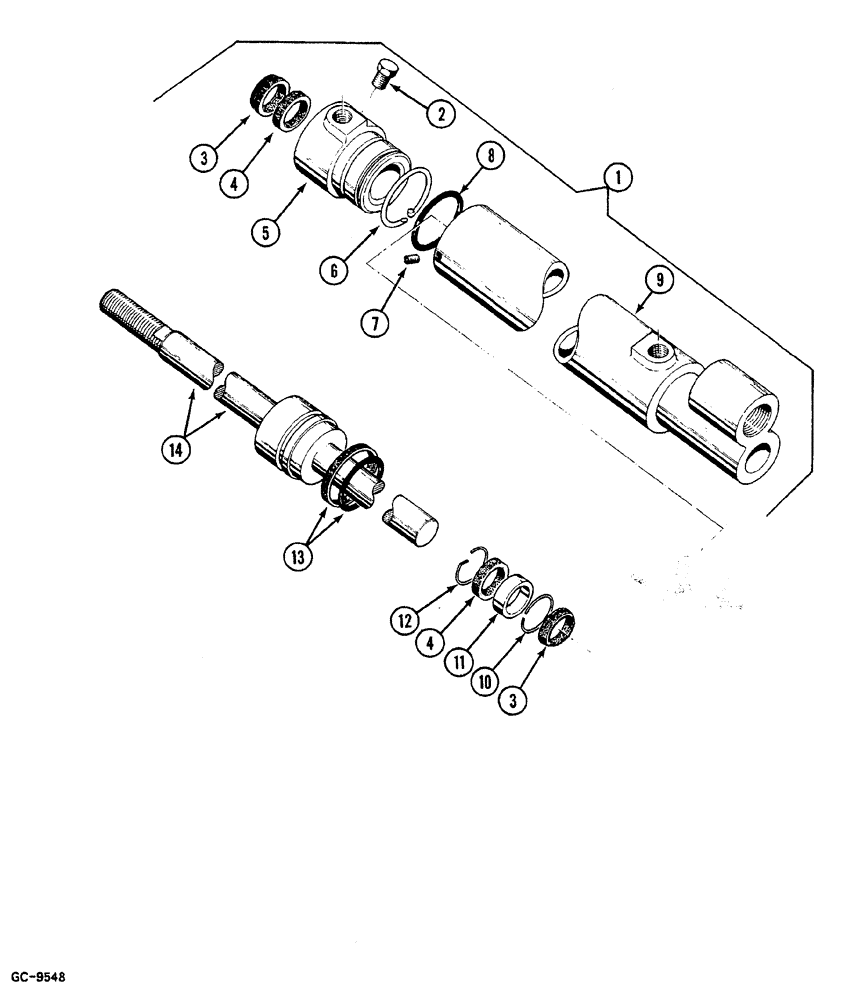

Запчасти Case IH 248 (5-316) - STEERING CYLINDER (4 WHEEL DRIVE TRACTOR), FOR 4 WHEEL DRIVE, 485, 585 (05) - STEERING

1

742967C91

STEERING CYLINDER

ASSEMBLY

1шт.

PACKAGE seals, consists of: Ref. 3, 4, 8 and 13

1шт.

2

FOR444613

PLUG

1шт.

3

SEAL

2шт.

4

SEAL

2шт.

5

3229430R1

END

1шт.

6

3147624R1

WIRE

WIRE

1шт.

7

934724R1

SET SCREW,Hex Skt, M5 x 6mm, Dog Pt

1шт.

8

O-RING

1шт.

9

3217433R1

CYLINDER

1шт.

10

3147620R1

RING, SNAP

RING SNAP retaining

1шт.

11

3147619R1

THRUST RING

1шт.

12

3217744R1

RING, SNAP

RING SNAP retaining

1шт.

13

SEAL

1шт.

14

742969C91

ROD ASSY.

1шт.
