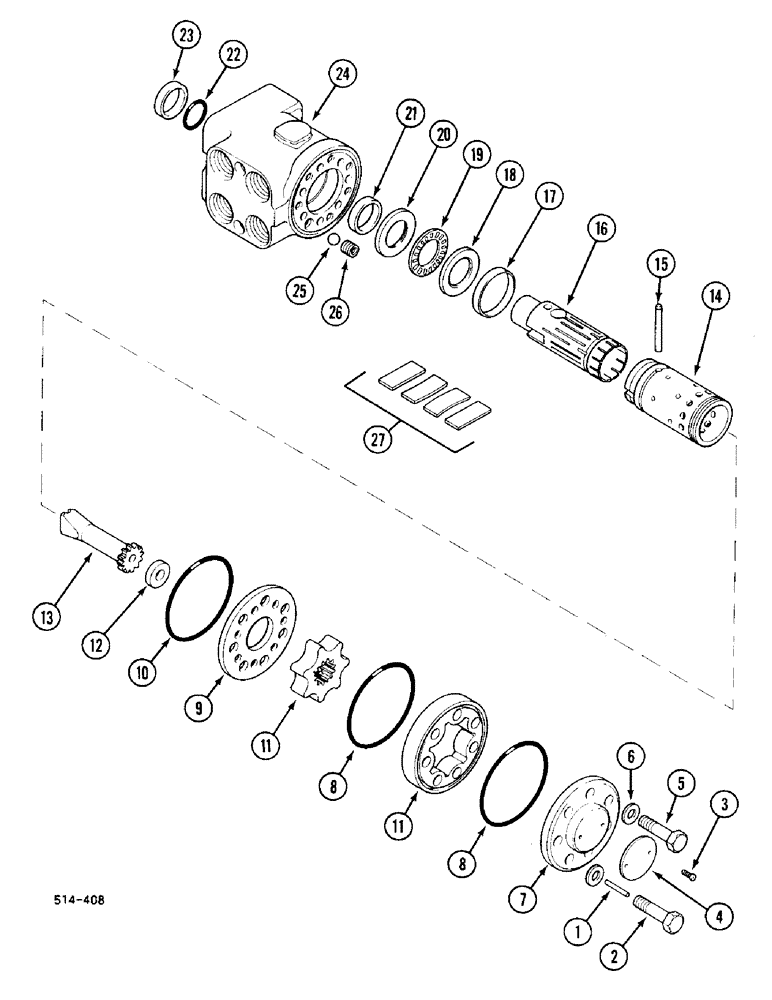

Запчасти Case IH 248 (5-308) - INTEGRAL HYDROSTATIC STEERING VALVE (05) - STEERING

(a)

88107C91

PUMP

VALVE ASSEMBLY

1шт.

1500443C91

SEAL KIT

PACKAGE

1шт.

(b)

67698C93

VALVE

ASSEMBLY, consists of: Ref.1 thru 27

1шт.

1(b)

3112271R1

PIN, ROLL

1шт.

2(b)

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

1шт.

3(b)

SCREW

1шт.

4(b)

PLATE, order: P/N 67698C93

1шт.

5(b)

3146908R1

BOLT,M8 x 1 x 35mm

6шт.

6(b)

WASHER, order: P/N 1500443C91

1шт.

7(b)

1500444C1

CAP

1шт.

8(b)

O-RING, order: P/N 1500443C91

1шт.

9(b)

3112276R1

PLATE

1шт.

10(b)

O-RING, order: P/N 1500443C91

1шт.

11(b)

538918R1

ROTOR ASSY.

1шт.

12(b)

538916R1

SPACER

1шт.

13(b)

538915R1

DRIVE SHAFT

1шт.

14

SLEEVE, order: P/N 67698C93

1шт.

15(b)

3112269R1

PIN

1шт.

16

SLEEVE, order: P/N 67698C93

1шт.

17(b)

3112246R1

RING

1шт.

18

BEARING needle, order: P/N 3234338R91

1шт.

19

BEARING needle, order: P/N 3234338R91

1шт.

20

WASHER, order: P/N 3234338R91

1шт.

21

RING, order: P/N 1500443C91

1шт.

22

O-RING, order: P/N 1500443C91

1шт.

23

RING sealing, order: P/N 1500443C91

1шт.

24

HOUSING, order: P/N 67698C93

1шт.

25(b)

3112270R1

BALL

1шт.

26(b)

3112273R1

COVER

BUSHING

1шт.

27(b)

SPRING leaf, order: P/N 1500443C91

1шт.

3234338R91

BEARING SET

ASSEMBLY, consists of: Ref. 18 thru 20, not illustrated

1шт.

1500443C91

SEAL KIT

PACKAGE, consists of: Ref. 6, 8, 11, 21 thru 23 and 27, not illustrated

1шт.
