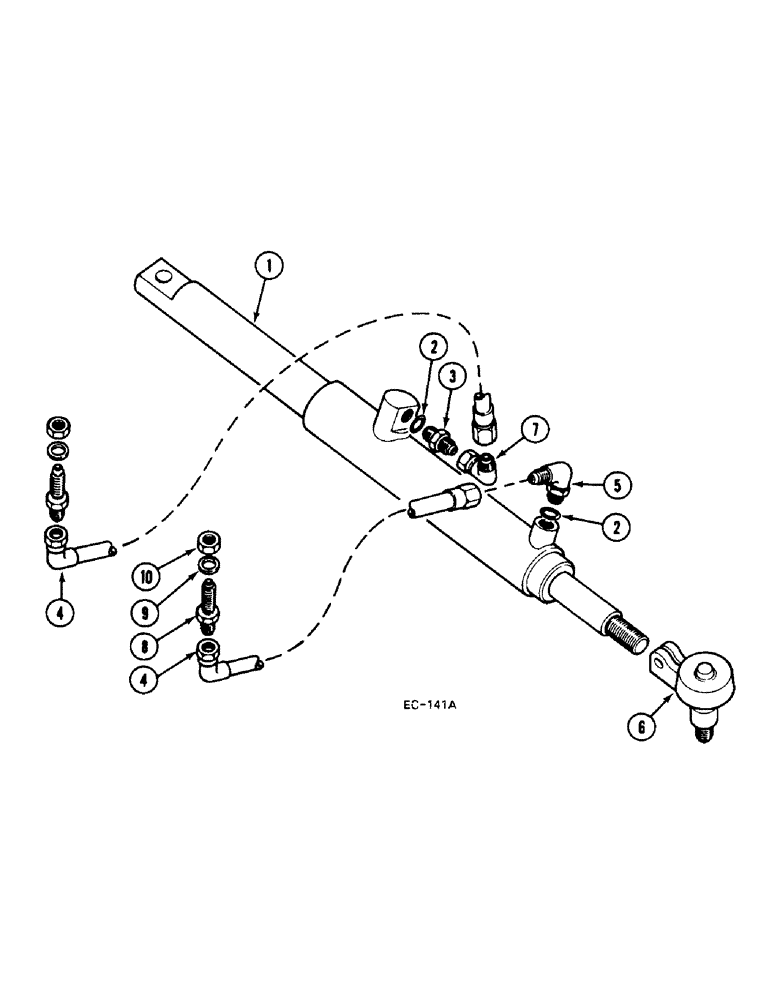

Запчасти Case IH 248 (5-306) - POWER STEERING TUBES AND HOSES, FOR USE WITH CAMERON GARDNER, 248 (05) - STEERING

1

3118502R92

CYLINDER

1шт.

536314R92

SERVICE KIT

PACKAGE

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

4

3121235R1

HOSE

ASSEMBLY

2шт.

5

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

6

378817R91

BALL JOINT

1шт.

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

BOLT

1шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

1шт.

7

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

8

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

9

115553

LOCK WASHER,Int Tooth, 5/8"

2шт.

10

9403293

LOCK NUT,Blkhd, 9/16"-18

2шт.
