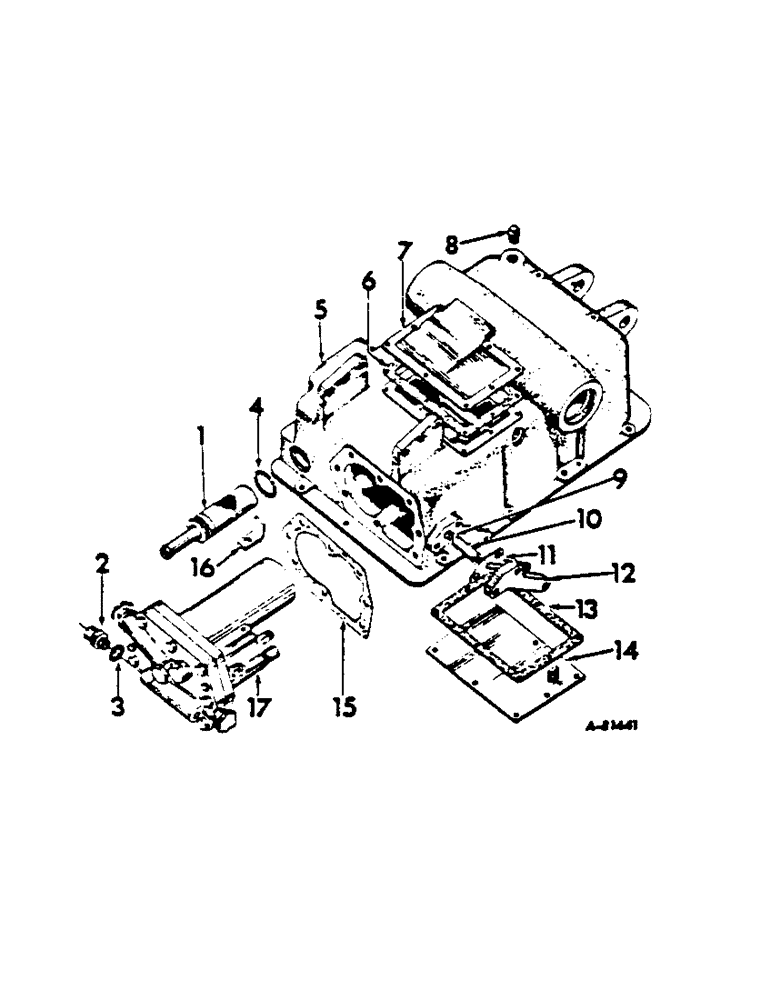

Запчасти Case IH 2444 (F-07) - HYDRAULICS SYSTEM, HYDRAULIC LIFT HOUSING AND CONNECTIONS (07) - HYDRAULIC SYSTEM

1

3069239R91

FILTER

ASSY. suction

1шт.

2

3069347R2

CONNECTOR, ELEC

CONNECTOR return tube

1шт.

3

704337R1

SEALING WASHER

WASHER coupling

1шт.

4

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

O rear tube, hitch return

1шт.

5

3044365R4

HOUSING

HOUSING hydraulic lift

1шт.

58997DB

PLUG

drain, magnetic, lift housing, 3/4"

1шт.

172570

PLUG,Exp, 1 3/8"

expansion, 1-3/8"

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex head, 3/8"-16 x 1-3/8"

10шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW cap, hex head, 3/8"-16 x 3-3/4"

1шт.

103321

LOCK WASHER,3/8"

11шт.

6

3044367R2

GASKET

plate, top cover

1шт.

7

3044366R1

PLATE

top cover

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

8шт.

8

217-442

PLUG,3/4" - 14

PLUG pipe, square head, 3/4"

1шт.

9

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

connection, valve return, 9/16" x 3/4" x 3/32"

1шт.

10

751540R1

CONNECTOR, ELEC

CONNECTOR valve return

1шт.

11

3061055R2

GASKET

cover plate, auxiliary valve

1шт.

12

751541R1

PLATE

cover, auxiliary valve

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

13

751499R2

GASKET

cover plate, lift housing

1шт.

14

751497R11

PLATE

ASSY. cover, lift housing

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

8шт.

15

3044437R2

GASKET

control valve

1шт.

16

379681R1

SPARE PART STOP rear tube, hitch return

1шт.

17

3069236R94

LOCK VALVE

ASSY. control, for components see list of parts under details of control valve

1шт.

179891

SHAFT

cap, hex head, 1/2"-13 x 2-1/2"

6шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

cap, hex head, 1/2"-13 x 2-1/4"

2шт.

704743R91

SEALING WASHER

WASHER dowty, 1/4"

1шт.

103323

LOCK WASHER,1/2"

6шт.
