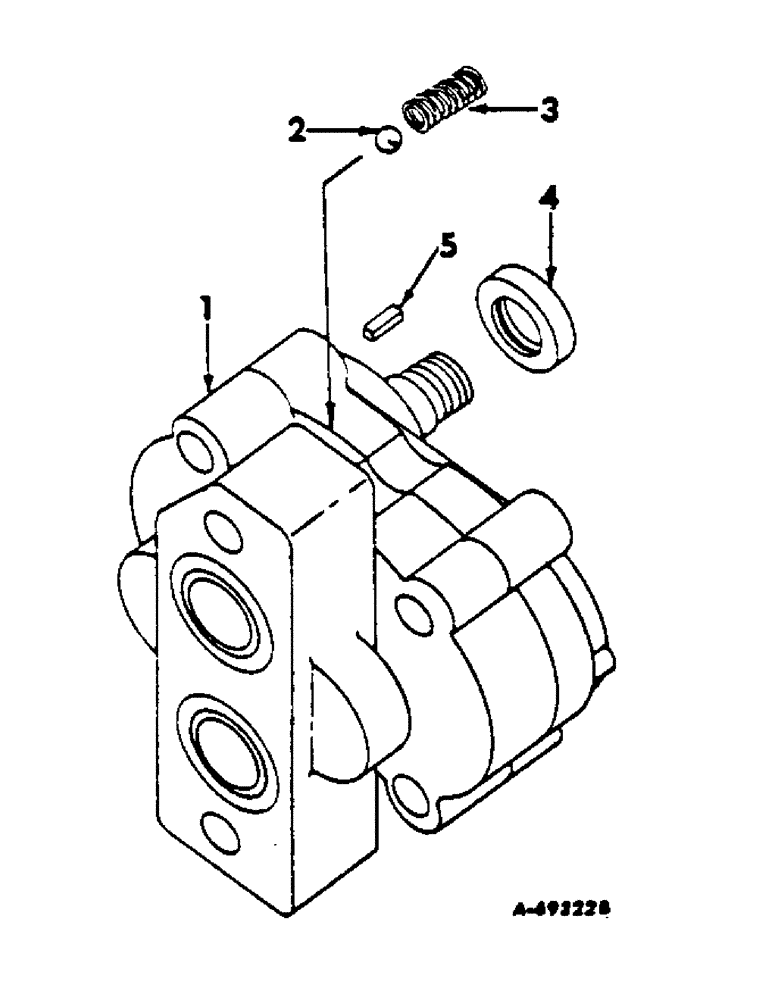

Запчасти Case IH 2444 (F-05) - HYDRAULICS SYSTEM, HYDRAULIC PUMP, CESSNA, GASOLINE ENGINE TRACTORS (07) - HYDRAULIC SYSTEM

1

377033R94

PUMP, HYDRAULIC

ASSY., 4.5 GPM, optional with 397130R91, composed of: (1) ball 16007R1, (1) housing assy. (NSS), (1) key 384507R1, (1) oil seal 596548R91, (1) package 381002R93, (1) spring 371523R1

1шт.

1

1949254C1

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

1949255C1

CORE-HYDRAULIC PUMP

Return Number, Hydraulic Pump

1шт.

1

376993R94

PUMP, HYDRAULIC

ASSY., 9 GPM, optional with 368633R92, composed of: (1) ball 16007R1, (1) housing assy (NSS), (1) key 396949R1, (1) oil seal 596548R91, (1) package 381002R93, (1) spring 381523R1

1шт.

1

1949256C1

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

1949257C1

CORE-HYDRAULIC PUMP

Return Number, Hydraulic Pump

1шт.

2

16007R1

BALL

BALL steel, cr.pltd., 7/32" diameter

1шт.

3

371523R1

SPRING

ball check

1шт.

4

596548R91

SEAL

oil, pump shaft

1шт.

5

384507R1

KEY

pump shaft, used with pump assy. 377033R94

1шт.

5

396949R1

KEY

pump shaft, used with pump assy. 376993R94

1шт.

381002R93

PUMP

PACKAGE service, hydraulic O-ring and gasket

1шт.

Composed of: (1) diaphragm 381003R1 (NSS), (1) gasket 350708R1, (1) gasket 531617 R1 (NSS), (1) gasket 381005R2 (NSS), (1) oil seal 596548R91, (2) O-ring 381884R1, (1) plate 396948R1 (NSS), (1) seal 381004R2 (NSS)

1шт.
