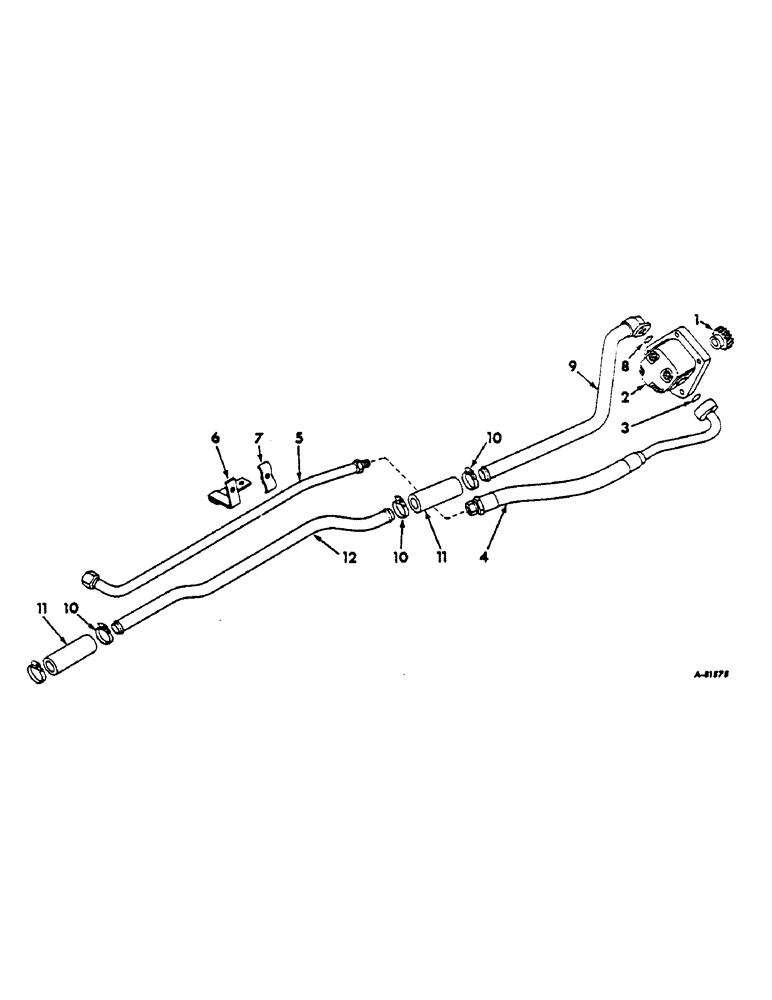

Запчасти Case IH 2444 (F-04) - HYDRAULICS SYSTEM, HYDRAULIC POWER SUPPLY, DIESEL ENGINE TRACTORS (07) - HYDRAULIC SYSTEM

1

3064087R1

SPARE PART drive, hydraulic pump

1шт.

2

3072694R91

PUMP

ASSY. hydraulic, 7.6 GPM, for components see list of parts under details of hydraulic pump, tractors without power steering

1шт.

2

3072695R91

PUMP

ASSY. hydraulic, 10 GPM, for components see list of parts under details of hydraulic pump, tractors with power steering

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

3шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

3063375R1

SPARE PART hex head, 5/16"-18 x 3-3/4"

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

3

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

pressure pipe, 9/16" x 3/4" x 3/32"

1шт.

4

388851R91

HYDRAULIC HOSE,19.05mm ID x 641.35mm L, SAE 100R2

PIPE pressure

1шт.

20743R1

SPARE PART cap, hex socket head, 1/4"-20 x 1-1/8"

2шт.

103319

LOCK WASHER,1/4"

2шт.

5

388850R11

SPARE PART ASSY. pressure

1шт.

6

388858R11

SPARE PART ASSY. pipe

1шт.

179852

BOLT

SCREW cap, hex head, 7/16"-14 x 1/2"

1шт.

103322

LOCK WASHER,7/16"

1шт.

7

388857R1

SPARE PART pipe

1шт.

109084

NUT,1/4"-20, G5

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

8

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

suction pipe, 13/16" x 1" x 3/32"

1шт.

9

388834R11

SPARE PART PIPE ASSY. suction 16.2, 5.1" Length

1шт.

217907

SUPPORT

SCREW cap, hex socket head, 5/16"-18 x 5/8"

2шт.

10

274086R91

HOSE CLAMP,0.94/1.63 Type F Worm

CLAMP suction hose

4шт.

11

389250R1

HOSE,1.13" ID x 5.00", SAE 100R5

Suction

2шт.

12

388833R1

SPARE PART PIPE suction 1.062" OD, 32, 2.5" Length

1шт.
