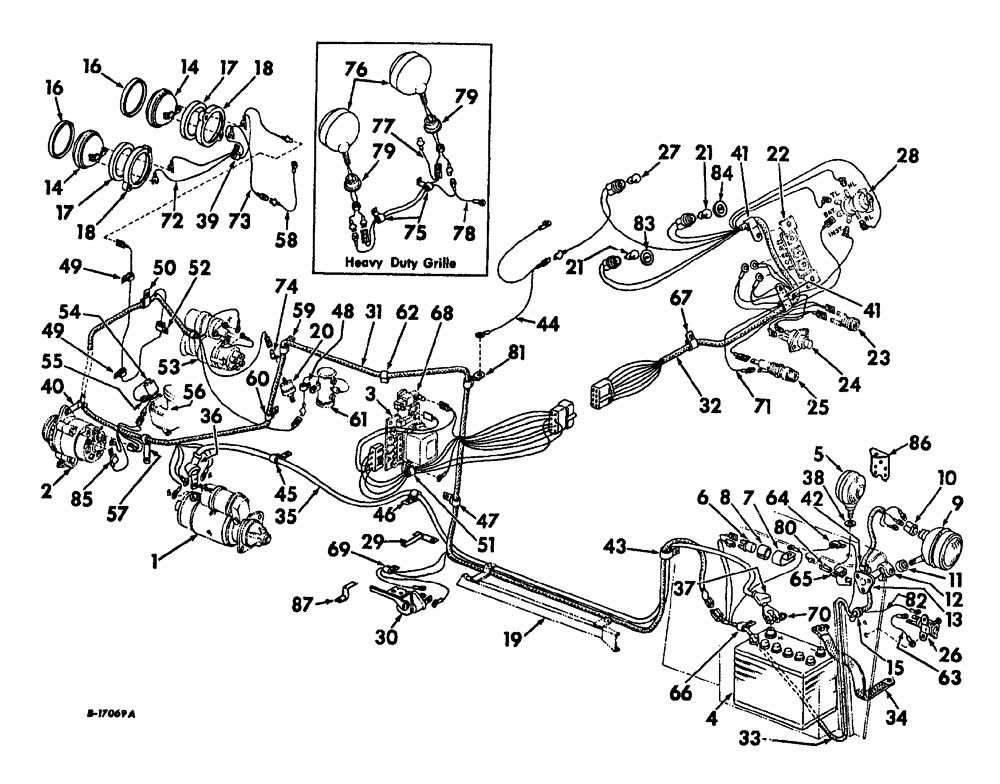

Запчасти Case IH 2444 (G-11) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

527379R91

SPARE PART PARTS ACCESSORY breakaway connector, electric, consists of: Ref. 26, 63 and 82

1шт.

1

MOTOR cranking, refer to cranking motor listing, Figure G-05

1шт.

2

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

3

REGULATOR voltage, refer to voltage regulator listing, Figure G-02

1шт.

4

395595R1

SPARE PART Prestolite, 22NF-A9Z, 12 volt

1шт.

5

394129R91

LIGHT

ASSY. warning, flashing, only serviceable items are lamp, 9417866 lens, amber, guide, 396585R1 or lens, red, guide, 397442R1 or lens, amber, Dietz, 899280R1 or lens, red, Dietz, 899279R1

1шт.

120371

NUT,1/2"-20, G5

1шт.

135629

GATHERING CHAIN

lock, external tooth, 1/2" C-Z

1шт.

6

394132R91

FLASHER UNIT

ASSY. light, warning

1шт.

7

394133R1

FASTENER

CLAMP mounting, flasher

1шт.

8

394134R1

SEAL

HOSE absorber, flasher mounting

1шт.

9

377102R91

NO LONGER SERVICED

LIGHT ASSY. combination, sealed beam, rear and tail, only serviceable items are sealed beam, 371461R91 and bulb, 455490

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

1шт.

10

377105R1

CONNECTOR, ELEC

CONNECTOR rear and tail light, combination

1шт.

11

365503R1

SPACER

rear and tail light, combination

1шт.

12

350920R1

CLAMP

rear and tail light, combination

1шт.

13

401471R1

POST

ASSY. rear and tail light, combination

1шт.

102635

NUT,3/8"-16, G5

3шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

3шт.

14

373662R91

LAMP

UNIT ASSY. sealed beam, headlight

2шт.

15

144227

SPIDER, REEL

cable harness, rear lamp

1шт.

16

377303R1

RING

front retaining, headlight

2шт.

17

377304R1

SPECIAL RING

RING rear retaining, headlight

2шт.

155148

SPARE PART machine, cross recess round head, 10-24 x 1-3/4"

4шт.

18

377305R1

RING

rear clamping, headlight

2шт.

19

388700R11

SPARE PART ASSY. cables, battery and rear light

1шт.

20

SWITCH oil pressure, refer to eng-1 parts catalog

1шт.

21

9412348

BULB,C2B, #257, 14V

LAMP flasher, oil and amp Tellite, No. 257, 14 volt

2шт.

22

BLOCK junction, refer to engine controls and instruments, Figure H-02

1шт.

23

SWITCH ignition, refer to engine controls and instruments, Figure H-02

1шт.

24

SWITCH push-button, refer to engine controls and instruments, Figure H-02

1шт.

25

HOUSING fuse, refer to engine controls and instruments, Figure H-02

1шт.

26

362002R92

SOCKET

ASSY. connection, electric breakaway

1шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

2шт.

27

127934

BELT, TRANSMISSION

LAMP instrument light, No. 57, 12 volt

1шт.

28

SWITCH lighting, refer to engine controls and instruments, Figure H-02

1шт.

29

405891R1

SPARE PART switch, safety starting, Replaces: 392268R2

1шт.

451634

SCREW machine, slt. fil. head, 10-32 x 7/16" C-Z, with lockwasher

2шт.

392269R1

SPARE PART cap, 5/8"-11 x 1", 12 PT

1шт.

30

375477R91

SWITCH

ASSY. safety starting

1шт.

31

404377R1

HARNESS

ASSY. main cable, Replaces: 401666R1

1шт.

32

404378R1

HARNESS

ASSY. instrument panel, Replaces: 401667R1

1шт.

33

404382R1

SPARE PART ASSY. combination rear light

1шт.

33

527377R1

SPARE PART ASSY. combination rear light

1шт.

34

378760R91

CABLE

STRAP ASSY., Serial Range: battery-ground

1шт.

35

388817R91

CABLE

ASSY. battery to solenoid switch

1шт.

36

364910R1

BOOT

COVER terminal, battery cable

1шт.

37

383618R1

COVER

terminal, battery cable, small

1шт.

38

394262R1

WASHER

flashing warning light

1шт.

39

362121R1

CLIP

harness, headlamp

1шт.

40

362123R1

CLIP

cable harness, alternator brace

1шт.

41

405890R1

SPARE PART cable, panel junction block, Replaces: 384557R1

2шт.

42

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

cable, combination rear light

1шт.

43

400505R1

CLAMP

CLIP mounting bolt, L.H. side cover, hydraulic lift housing

1шт.

44

404423R1

SPARE PART ASSY. ground, instrument light and fuel gauge, Replaces: 401673R1

1шт.

45

362123R1

CLIP

battery cable, solenoid

1шт.

46

362123R1

CLIP

battery cable, clutch return spring

1шт.

47

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

cable harness, balance spring bracket

1шт.

48

370535R1

CLIP

cable, fuel pump

1шт.

49

366460R1

CABLE CLIP

harness to head lamp junction

2шт.

50

362123R1

CLIP

housing, engine thermostat

1шт.

51

370535R1

CLIP

cable harness, voltage regulator

1шт.

52

365584R1

CLIP

R.H. mounting bolt, governor housing

1шт.

53

UNIT battery ignition, refer to eng-1 parts catalog

1шт.

54

SHUT-OFF ASSY. fuel solenoid, refer to eng-1 parts catalog

1шт.

55

370535R1

CLIP

carburetor

1шт.

56

CARBURETOR, refer to eng-1 parts catalog

1шт.

57

362126R1

CLIP

cable harness, alternator

1шт.

58

404421R1

CABLE

SPARE PART ASSY. ground, headlight, Replaces: 401671R1

1шт.

59

363660R1

CLIP

mounting bolt, L.H. front, fuel tank

1шт.

60

362126R1

CLIP

cable harness, left front, fuel tank

1шт.

61

UNIT sending, electrical fuel gauge, refer to fuel tank, supports and piping, Figure E-05

1шт.

62

370383R1

CLIP

cable harness, left rear, fuel tank

1шт.

63

404395R1

CABLE

ASSY. breakaway connector, Serial Range: socket-ground

1шт.

64

394763R1

CLIP,ELECTRICAL

cable, flashing safety light

1шт.

65

358986R1

CABLE CLIP

flashing safety light

1шт.

66

362123R1

CLIP

housing, hydraulic lift

1шт.

67

384557R1

CLIP

cable harness, tachometer

3шт.

68

UNIT resistance, refer to alternator generator and connections, Figure G-02

1шт.

69

362121R1

CLIP

starting switch, safety

1шт.

70

356062R91

BOLT

BOLT ASSY. terminal

1шт.

71

404419R1

SPARE PART ASSY. fuse to light switch, Replaces: 401669R1

1шт.

72

404420R1

SPARE PART ASSY. headlight junction, Replaces: 401670R1

1шт.

73

404422R1

CABLE

SPARE PART ASSY. headlight junction and ground, Replaces: 401672R1

1шт.

74

365501R1

TERMINAL CONNECTOR

line

1шт.

75

370383R1

CLIP

cable, headlight

2шт.

76

377866R91

LIGHT

ASSY. sealed beam head, only serviceable item is sealed beam unit 371443R91

2шт.

25-118

NUT,1/2"-20, G5

hex, 1/2"-20

2шт.

103323

LOCK WASHER,1/2"

2шт.

77

388897R91

SPARE PART ASSY. harness to headlight junction

1шт.

78

388896R91

SPARE PART ASSY., headlight, Serial Range: junction-ground

1шт.

79

370307R1

SEAT

mounting ball, headlight

2шт.

80

376749R1

BODY

CONNECTOR flashing warning light

1шт.

81

363660R1

CLIP

cable harness, steering wheel support

1шт.

82

527378R1

SPARE PART ASSY. socket, breakaway connector

1шт.

83

401392R1

SPARE PART indicator, oil Tellite

1шт.

84

401393R1

SPARE PART indicator, amp Tellite

1шт.

85

399470R1

BOOT

INSULATOR terminal cover

1шт.

86

394330R1

SPARE PART BRACKET warning light, flashing

1шт.

87

405894R1

SPARE PART BRACKET lever, safety switch

1шт.
