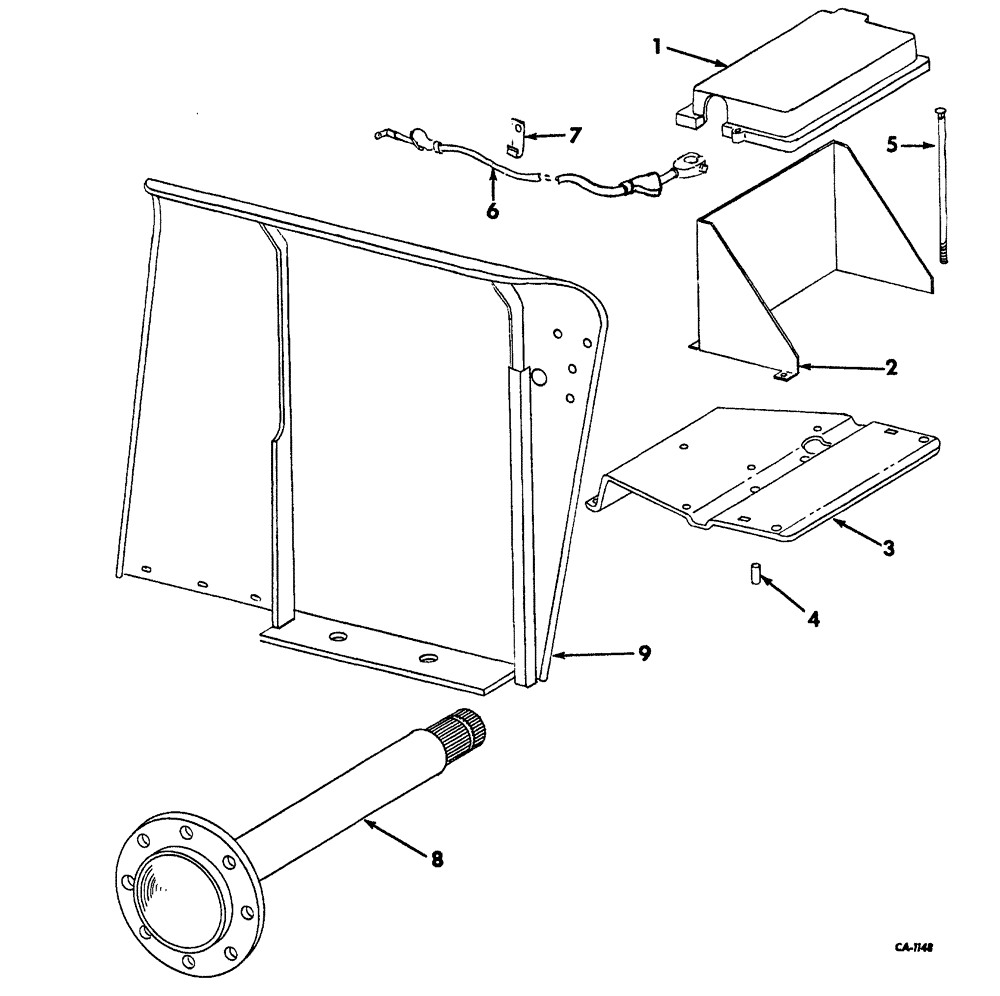

Запчасти Case IH 2444 (G-09) - ELECTRICAL SYSTEM, NARROW TREAD REAR AXLE AND BATTERY SUPPORT (06) - ELECTRICAL SYSTEMS

1

392927R1

SPARE PART hold down, battery, diesel engine tractors

1шт.

1

392933R1

SPARE PART hold down, battery, gasoline engine tractors

1шт.

2

392928R11

SPARE PART ASSY. battery, diesel engine tractors

1шт.

2

392934R11

SPARE PART ASSY. battery, gasoline engine tractors

1шт.

3

392929R1

SPARE PART battery, diesel engine tractors

1шт.

3

392935R1

SPARE PART battery, gasoline engine tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

80682

LOCK WASHER,1/4"

4шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

4

364002R1

SPACER,3/8" Pipe x 1"

pipe, standard, 3/8" x 1", diesel engine tractors

2шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

cap, hex head, 3/8"-16 x 1-5/8"

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

2шт.

5

392931R1

SPARE PART hold down, battery, diesel engine tractors

2шт.

112526

SPARE PART cotter, 1/16" x 3/8"

2шт.

388697R1

NUT

wing, hold down, battery

2шт.

6

392932R91

SPARE PART ASSY. battery to solenoid switch, diesel engine tractors

1шт.

6

392936R91

SPARE PART ASSY. battery to solenoid switch, gasoline engine tractors

1шт.

7

362123R1

CLIP

cable, battery

1шт.

8

393969R1

SPARE PART AXLE rear

2шт.

9

401678R1

SPARE PART ASSY., L.H.

1шт.

321563

SCREW cap, hex head, 5/8"-11 x 2-1/4"

2шт.

103325

LOCK WASHER,5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

9

401679R1

SPARE PART ASSY., R.H.

1шт.
