Запчасти Case IH 2444 (G-06) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, DIESEL ENGINETRACTORS (06) - ELECTRICAL SYSTEMS

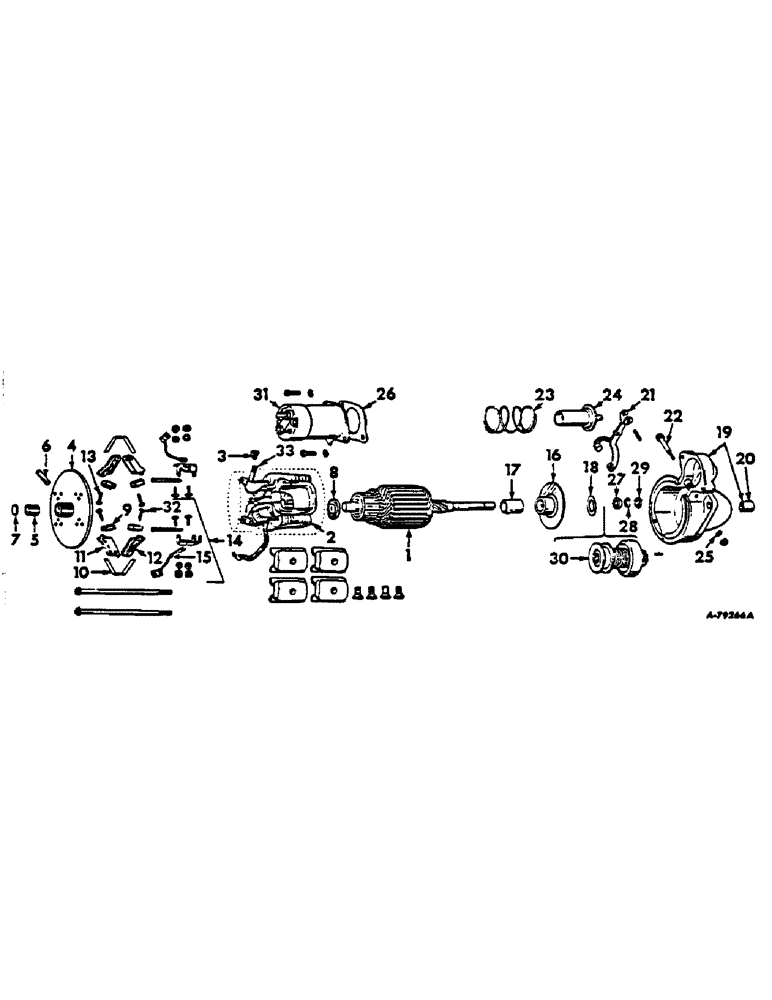

Схема запчастей Case IH 2444 - (G-06) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, DIESEL ENGINETRACTORS (06) - ELECTRICAL SYSTEMS
12
31
20
13
18
19
29
30
7
14
10
8
32
9
25
4
16
3
5
11
17
33
6
23
21
24
1
26
15
22
28
27
2

Артикул

Название

Примечание

Количество

1107585

SPARE PART ASSY. cranking, 388813R92, 12 volt

1шт.

102635

NUT,3/8"-16, G5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120622

NUT,#8-32

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

2шт.

103321

LOCK WASHER,3/8"

3шт.

121841

LOCK WASHER,#8

1шт.

110730

LOCK WASHER

WASHER lock, light, 3/8"

1шт.

1

1957607

ARMATURE

1шт.

2

1955951

COIL

ASSY. field

1шт.

3

1955946

GROMMET

in field frame

1шт.

4

1940385

FUNNEL

end, commutator, Includes: Ref. 5, 6 and 7

1шт.

5

1872678

BUSHING

end, commutator

1шт.

Part of Ref. 4 P/N 1940385 Commutator End Frame

1шт.

6

1919851

WICK

end, commutator

1шт.

Part of Ref. 4 P/N 1940385 Commutator End Frame

1шт.

7

810819

PLUG

expansion

1шт.

Part of Ref. 4 P/N 1940385 Commutator End Frame

1шт.

8

1914842

WASHER

end brake, commutator

1шт.

9

1946434

BRUSH, COMMUTATOR

BRUSH

4шт.

10

1926622

VALVE SPRING

brush

2шт.

11

1940477

HOLDER

brush, ground

2шт.

12

1926618

HOLDER

brush, insulated

2шт.

13

1959514

SCREW

SCREW attaching, brush

4шт.

14

1928015

BRACKET

PACKAGE support, brush holder

2шт.

15

1926605

ELECTRICAL WIRE

WIRE LEAD brush ground

2шт.

16

820149

PLATE

bearing, center

1шт.

17

1938596

BUSHING

bearing, center

1шт.

18

R15043

WASHER

brake, between center bearing and motor drive

1шт.

19

1987705

HOUSING

drive

1шт.

20

1862383

BUSHING

drive end

1шт.

21

1951567

LEVER

shift

1шт.

22

1932197

SCREW

STUD shift lever

1шт.

23

1958679

SPRING

return, plunger

1шт.

24

1941113

PLUNGER

switch, solenoid

1шт.

25

9421424

LOCK WASHER

lock, shift lever stud

1шт.

26

1952427

GASKET

between switch and housing

1шт.

27

1928021

COLLAR

pinion stop, drive end

1шт.

28

1928022

SNAP RING

retainer, pinion stop, drive end

1шт.

29

1928023

WASHER

thrust, drive end

1шт.

30

1959500

DRIVE

ASSY. motor

1шт.

31

1114356

SOLENOID,Starter

ASSY. solenoid

1шт.

120622

NUT,#8-32

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

121841

LOCK WASHER,#8

1шт.

110730

LOCK WASHER

WASHER lock, light, 3/8"

1шт.

32

1960908

BOLT (SPREADER)

thru

2шт.

33

not used in this application

1шт.

Выбрано товаров: 48
