Запчасти Case IH 2444 (G-05) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

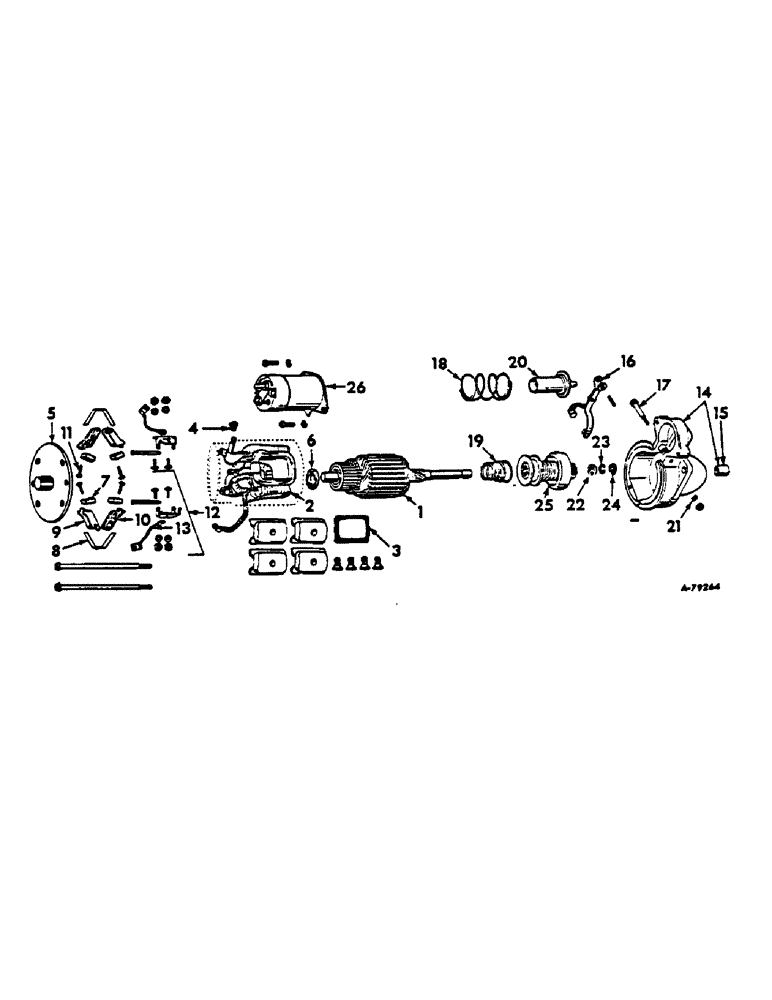

Схема запчастей Case IH 2444 - (G-05) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS
3
2
26
18
10
13
11
5
8
6
1
21
16
19
14
12
23
4
17
7
22
20
9
24
15
25

Артикул

Название

Примечание

Количество

1108323

SPARE PART ASSY. cranking, 396587R91, 12 volt

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120622

NUT,#8-32

2шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW cap, hex head, 1/2"-20 x 1"

2шт.

103323

LOCK WASHER,1/2"

2шт.

110730

LOCK WASHER

WASHER lock, light, 3/8"

1шт.

121841

LOCK WASHER,#8

2шт.

1

1958949

SPARE PART

1шт.

2

1933761

SPARE PART ASSY. field, 4 coils

1шт.

3

1927853

FOAM INSULATION

INSULATION field coil

4шт.

4

1966391

GROMMET

in field frame

1шт.

5

1928966

FRAME

FRAME end, commutator

1шт.

6

818265

WASHER

end brake, commutator

1шт.

7

1906945

COMMUTATOR BRUSH

4шт.

8

1926622

VALVE SPRING

brush

2шт.

9

1940477

HOLDER

brush, ground

2шт.

10

1926618

HOLDER

brush, insulated

2шт.

11

1967747

SCREW

SPARE PART attaching, brush

4шт.

12

1928015

BRACKET

PACKAGE support, brush holder

2шт.

13

1926605

ELECTRICAL WIRE

WIRE LEAD brush ground

2шт.

14

1968324

HOUSING

ASSY. drive

1шт.

15

1839345

BUSHING

drive end

1шт.

16

1951567

LEVER

shift

1шт.

17

1932197

SCREW

STUD shift lever

1шт.

9635082

NUT,5/16" - 18, Gr 5

Stud, shift lever

1шт.

18

1958679

SPRING

return, plunger

1шт.

19

not used in this application

1шт.

20

1941113

PLUNGER

switch, solenoid

1шт.

21

9421424

LOCK WASHER

lock, stud sealing, shift lever

1шт.

22

1928021

COLLAR

pinion stop, drive end

1шт.

23

1928022

SNAP RING

retainer, pinion stop, drive end

1шт.

24

1928023

WASHER

thrust, drive end

1шт.

25

A45617

DRIVE

DRIVE ASSY. motor

1шт.

26

1114356

SOLENOID,Starter

ASSY. solenoid

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120622

NUT,#8-32

2шт.

120614

NUT,Hex, #10 - 32

1шт.

121841

LOCK WASHER,#8

2шт.

120217

LOCK WASHER,#10

1шт.

110730

LOCK WASHER

WASHER lock, light, 3/8"

1шт.

1952427

GASKET

between switch and housing

1шт.

1949653

SPARE PART field lead to switch attaching

1шт.

Выбрано товаров: 42
