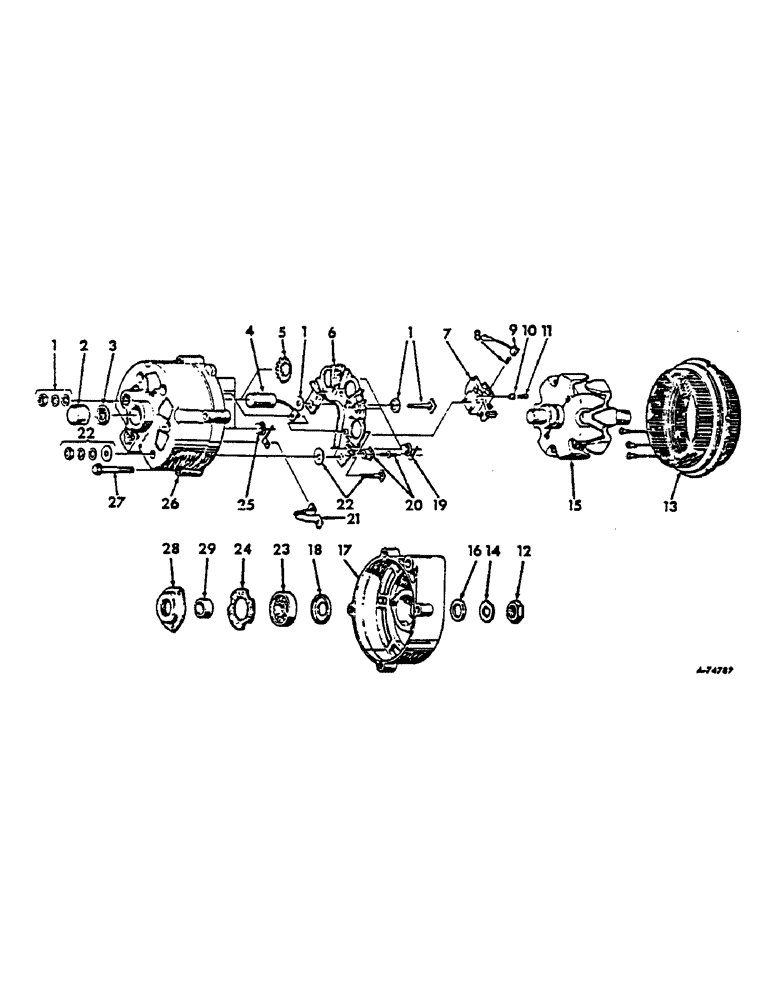

Запчасти Case IH 2444 (G-04) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, DELCO REMY (06) - ELECTRICAL SYSTEMS

1100805

GENERATOR

ALTERNATOR ASSY., 702337C91

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1959833

TERMINAL CONNECTOR

PACKAGE ground

1шт.

2

7451763

BEARING

end, slip ring

1шт.

3

1961323

SEAL

RETAINER end, slip ring, with felt

1шт.

4

1959455

CAPACITOR

1шт.

5

1960750

VALVE SPRING

capacitor

1шт.

6

1959828

PACKAGE

SINK ASSY. heat

1шт.

1959523

SPARE PART screw insulator, heat sink

1шт.

1959389

INSULATOR

screw, heat sink

1шт.

7

1964682

HOLDER

ASSY. brush and spring

1шт.

8

1955519

SPRING

BRUSH

2шт.

9

not used in this application

1шт.

10

not used in this application

1шт.

11

1957501

SCREW

attaching, brush holder

2шт.

12

1911324

NUT

NUT shaft, drive end

1шт.

13

1959381

COIL

STATOR ASSY.

1шт.

14

1941978

WASHER

shaft, drive end

1шт.

15

1958565

ROTOR

ASSY.

1шт.

16

1959991

COLLAR

outside spacer, drive end

1шт.

17

1959917

FUNNEL

drive end

1шт.

18

not used in this application

1шт.

19

1964353

DIODE

DIODE positive

3шт.

20

1959834

TERMINAL STRIP

PACKAGE diode junction

3шт.

21

not used in this application

1шт.

22

1959832

TERMINAL STRIP

PACKAGE battery

1шт.

23

904751

BEARING

ball, drive end

1шт.

24

1912008

FELT

GASKET plate, bearing retainer

1шт.

25

1964354

DIODE

negative

3шт.

26

1969329

FUNNEL

FRAME with negative diode, bearing retainer and condenser

1шт.

27

1956975

BOLT

BOLT thru

4шт.

28

1955494

PLATE

RETAINER ASSY. bearing, drive end

1шт.

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

attaching

3шт.

29

1963139

COLLAR CLAMP

inside spacer, drive end

1шт.
