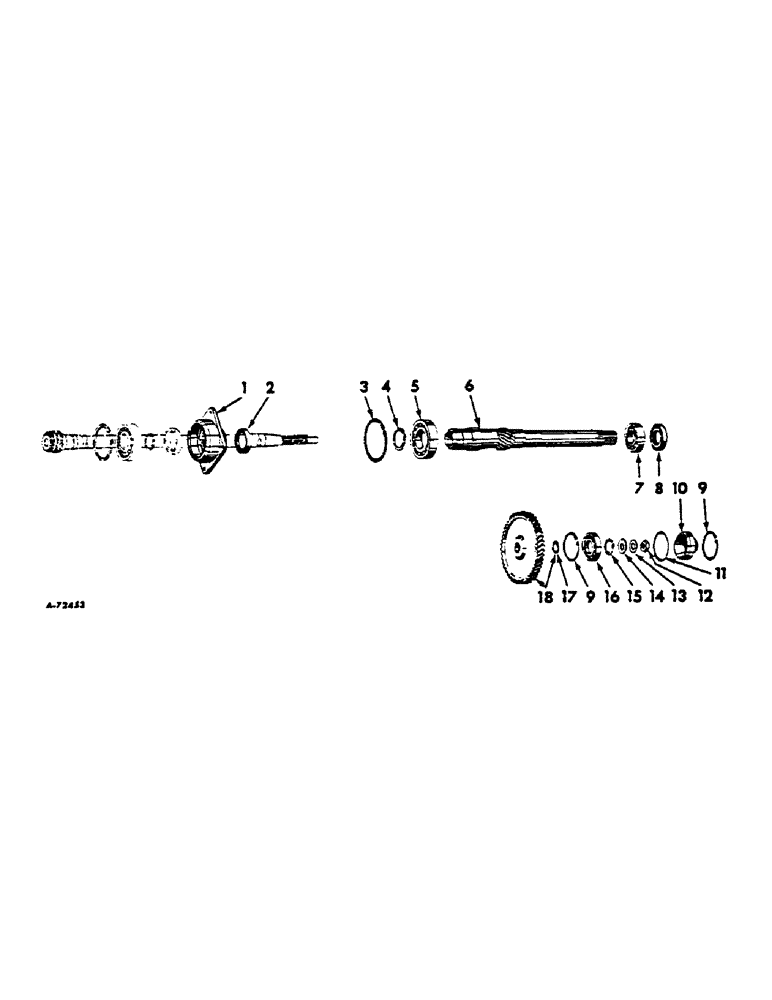

Запчасти Case IH 2444 (B-14) - POWER TRAIN, CONSTANT RUNNING PTO GEARS AND SHAFTS (03) - POWER TRAIN

1

751077R1

CAGE

bearing, transmission drive shaft

1шт.

2

751140R91

SEAL

oil, rear, PTO drive shaft

1шт.

3

703911R1

RING

CIRCLIP retaining, large, rear bearing, PTO drive shaft

1шт.

4

703696R1

RING

CIRCLIP retaining, small, rear bearing, PTO drive shaft

1шт.

5

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

rear, PTO drive shaft

1шт.

6

3044006R1

GEAR

SHAFT, PTO drive, 15 teeth

1шт.

7

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

front, PTO drive shaft

1шт.

8

704229R91

OIL SEAL

front, PTO drive shaft

1шт.

9

751149R1

RING

CIRCLIP retaining, PTO bearing

2шт.

10

751148R3

CAP

bearing, front, PTO

1шт.

11

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

bearing cap, front, PTO, 3-3/8" x 3-3/4" x 3/16"

1шт.

12

not used in this application

1шт.

13

103320

LOCK WASHER,5/16"

1шт.

14

751142R1

WASHER

bearing, front, PTO shaft

1шт.

15

751146R1

RING

CIRCLIP retaining, front bearing, PTO shaft

1шт.

16

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

front, PTO shaft

1шт.

17

751145R1

RING, SNAP

RING SNAP CIRCLIP gear, PTO driven

1шт.

18

3044007R11

GEAR

ASSY., PTO driven, 55 teeth

1шт.
