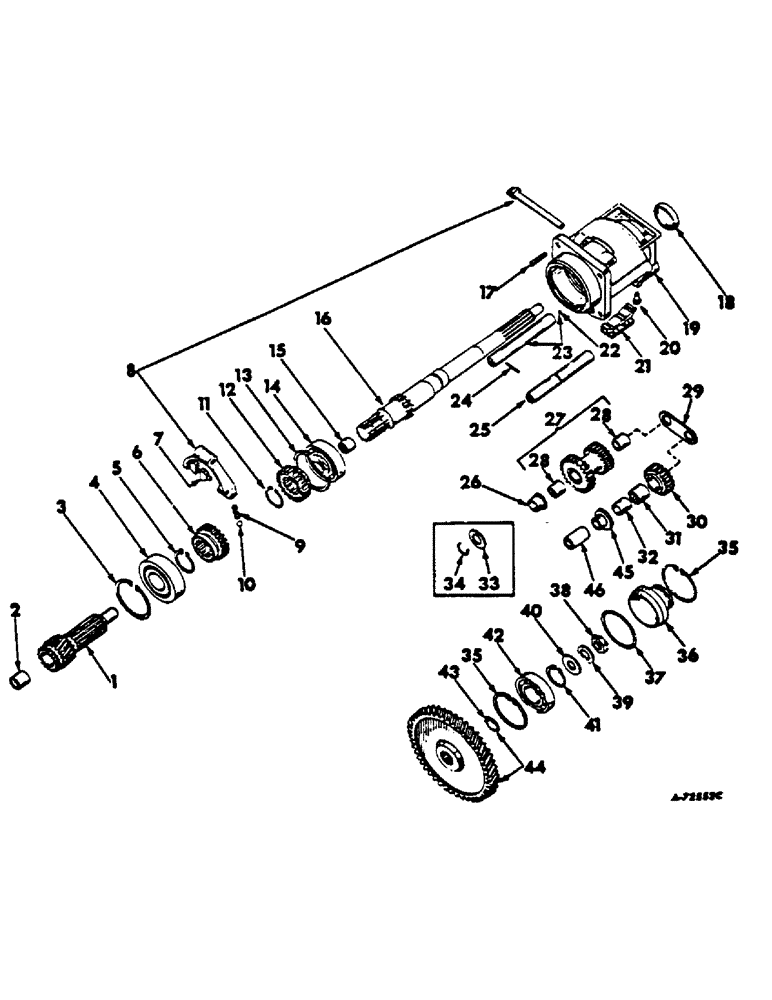

Запчасти Case IH 2444 (B-10) - POWER TRAIN, FORWARD AND REVERSE TRANSMISSION, TRACTORS WITH SINGLE CLUTCH (03) - POWER TRAIN

1

3073620R91

SHAFT

GEAR AND SHAFT transmission driving, with collar

1шт.

3073619R1

COLLAR

shaft

1шт.

2

321981R91

NEEDLE BEARING

needle, pilot

1шт.

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

bearing, pilot

1шт.

3

751149R1

RING

CIRCLIP retaining, driving shaft bearing, transmission

1шт.

4

ST353

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

ball, rear, driving shaft, transmission

1шт.

5

3048709R1

RING, SNAP

RING SNAP CIRCLIP retaining, driving shaft bearing, transmission

1шт.

6

3048714R3

GEAR

output

1шт.

7

3048731R1

SHOE

fork, gear shifter

2шт.

8

3067265R91

FORK

SHAFT gear shifter, with two pins 17132R1

1шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

roll, 3/16" x 1"

2шт.

9

3072000R1

SPRING

rail poppet, gear shifter

1шт.

10

16013R1

BALL

steel, 13/32" diameter

1шт.

11

3048709R1

RING, SNAP

RING SNAP CIRCLIP retainer, rear bearing, transmission and PTO shaft

1шт.

12

3048711R1

GEAR

input

1шт.

13

751149R1

RING

CIRCLIP retainer, rear bearing, forward and reverse and PTO shaft

1шт.

14

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

rear, forward and reverse and PTO shaft

1шт.

15

3062462R91

BEARING

driving shaft, forward and reverse and PTO

1шт.

3062461R1

SPACER

bearing

1шт.

16

3073617R1

SHAFT

SHAFT driving, forward and reverse and PTO

1шт.

17

703877R1

STUD

housing, gear carrier

3шт.

18

3049150R92

SEAL

SEAL oil, driving shaft, forward and reverse and PTO

2шт.

19

3067261R2

HOUSING

HOUSING gear carrier

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

3шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

4шт.

20

3048721R1

BOLT (SPREADER)

locking

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

21

3048730R2

RAIL

gear shifter

1шт.

141155

DOWEL,3/16" x 3/4"

dowel, 3/16" x 3/4"

2шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

cap, hex head, 1/4"-14 x 7/8"

2шт.

103319

LOCK WASHER,1/4"

2шт.

22

16008R1

BALL,1/4" Dia, Steel

steel, 1/4" diameter

1шт.

23

3048726R11

SHAFT

ASSY. counter

1шт.

24

443024

GROOVED PIN,3/16" x 1 1/4", Type F

3/16" x 1 1/4", Type F

1шт.

25

3070705R1

SHAFT

idler

1шт.

26

3048725R1

SPACER

countershaft

1шт.

27

3048722R21

GEAR

ASSY. countershaft cluster

1шт.

28

376918R91

NEEDLE BEARING

needle, cluster gear

2шт.

29

3048715R3

THRUST WASHER

WASHER thrust, idler and cluster gear

1шт.

30

3070703R1

GEAR

idler, 19 teeth

1шт.

31

3070729R91

BEARING

needle, idler gear

1шт.

32

3070704R1

SLEEVE

needle bearing, idler gear

1шт.

33

not used in this application

1шт.

34

not used in this application

1шт.

35

751149R1

RING

CIRCLIP retainer, bearing, PTO driven gear

2шт.

36

751148R3

CAP

front bearing, PTO

1шт.

37

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

cap, front bearing, PTO, 3-3/8" x 3-3/4" x 3/16"

1шт.

38

not used in this application

1шт.

39

not used in this application

1шт.

40

751142R1

WASHER

retaining, PTO front shaft

1шт.

41

751146R1

RING

CIRCLIP retainer, PTO driven gear

1шт.

42

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

PTO driven gear

1шт.

43

751145R1

RING, SNAP

RING SNAP CIRCLIP gear, PTO drive

1шт.

44

3044007R11

GEAR

ASSY., PTO drive

1шт.

45

3070707R1

SPACER

idler shaft

1шт.

443024

GROOVED PIN,3/16" x 1 1/4", Type F

3/16" x 1 1/4", Type F

1шт.

46

3070708R1

TUBE,0.828" ID, 1.604" Length

spacer, idler shaft

1шт.
