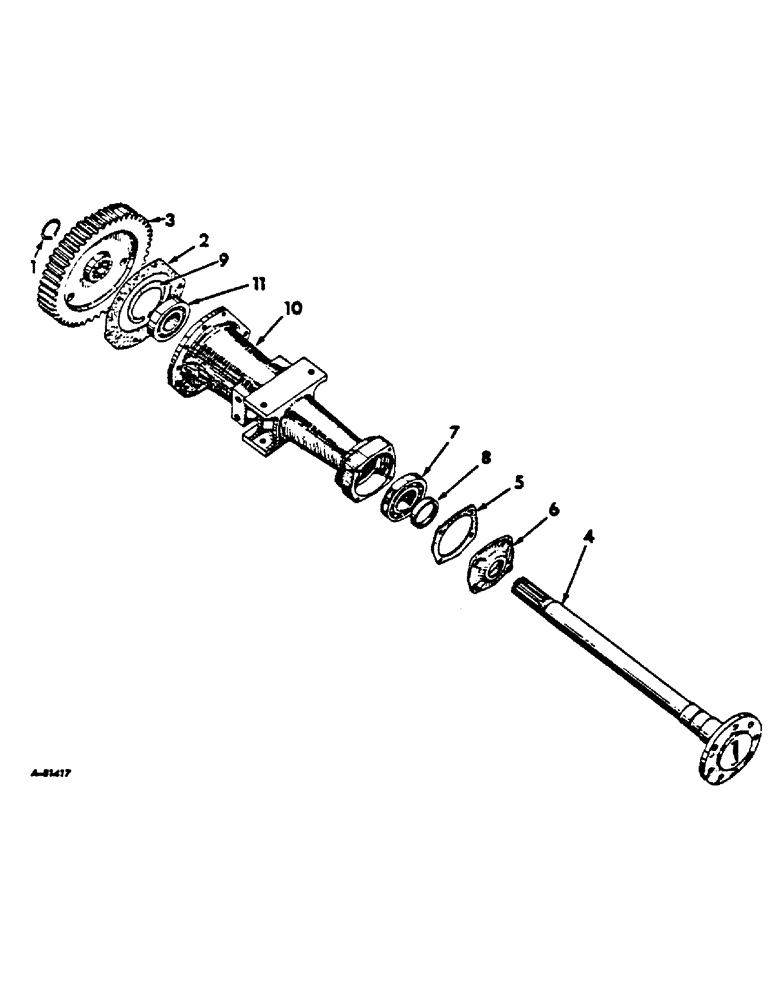

Запчасти Case IH 2444 (B-07) - POWER TRAIN, REAR AXLE (03) - POWER TRAIN

1

357194R1

RING

snap, bull gear

2шт.

2

388396R1

GASKET

carrier, rear axle

2шт.

3

3069953R1

GEAR

bull

2шт.

4

388395R1

SHAFT

AXLE rear

2шт.

5

388472R1

GASKET

bearing retainer, rear axle

2шт.

6

388473R1

SPARE PART RETAINER bearing, rear axle

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

8шт.

7

ST443

BALL BEARING,68mm ID x 120mm OD x 23mm W

ball, outer, rear axle

2шт.

8

383394R91

OIL SEAL

oil, outer, rear axle

2шт.

9

701067R1

RING

snap, inner bearing, rear axle

2шт.

10

3070322R1

AXLE CARRIER

CARRIER rear axle, L.H.

1шт.

10

3070323R1

AXLE CARRIER

CARRIER rear axle, R.H.

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

cap, hex head, 1/2"-13 x 1-3/8"

20шт.

103323

LOCK WASHER,1/2"

20шт.

11

3069356R91

BEARING, BALL

inner, rear axle

2шт.
