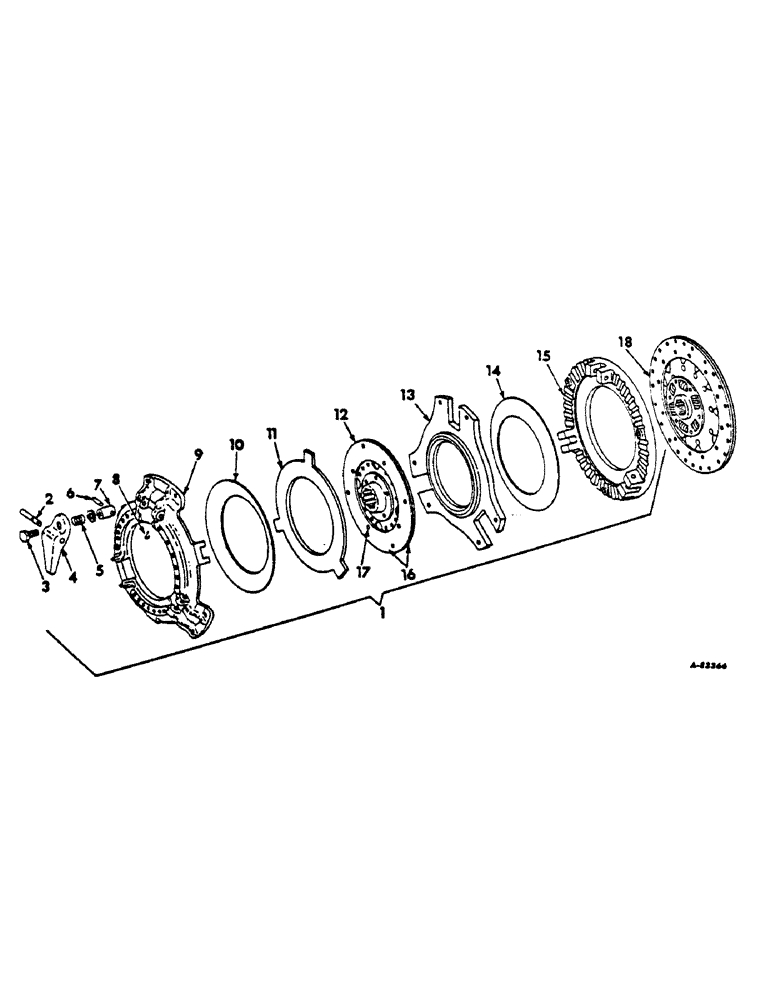

Запчасти Case IH 2444 (B-04) - POWER TRAIN, DUAL CLUTCH, TRACTORS WITH CONSTANT RUNNING PTO (03) - POWER TRAIN

1

390011R91

PLATE ASSY.

pressure, dual clutch

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

6шт.

103320

LOCK WASHER,5/16"

6шт.

2

392502R1

PIVOT PIN

pivot

3шт.

3

635495R1

SCREW

adjusting

3шт.

4

392499R1

FINGER

LEVER clutch

3шт.

5

635494R1

VALVE SPRING

retracting

3шт.

6

392503R1

PIN

stud rod

3шт.

7

635496R1

BLOCK

ROD stud

3шт.

8

392504R1

PIN

SPRING hair

3шт.

9

392497R1

SPARE PART PLATE back

1шт.

10

392500R1

SPRING

Belleville

1шт.

11

635491R1

PLATE

pressure

1шт.

12

392492R91

DISC

ASSY., PTO driven

1шт.

13

392498R1

PLATE

flywheel

1шт.

14

392501R1

SPRING

Belleville

1шт.

15

392496R1

PLATE

pressure

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

6шт.

355106R1

SPARE PART SCREW cap

3шт.

16

392493R91

PACKAGE

clutch facing, consists of two facings and eight rivets 392495R1

1шт.

17

392495R1

SPARE PART clutch facing

8шт.

18

399536R92

DISC

ASSY., clutch driven

1шт.
