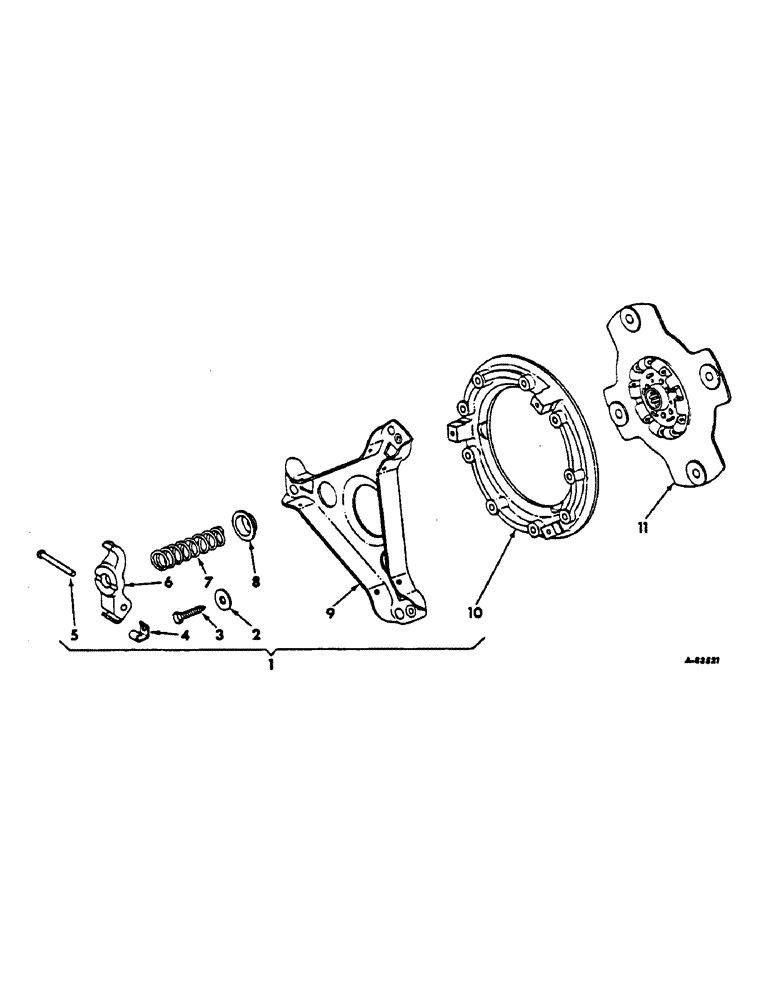

Запчасти Case IH 2444 (B-02) - POWER TRAIN, SINGLE CLUTCH (03) - POWER TRAIN

1

392077R91

PLATE

ASSY. pressure, single clutch

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

3шт.

2

355111R1

WASHER

3шт.

3

568189R1

SPARE PART,5/16" - 24

SCREW adjusting

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

4

355110R1

NO LONGER SERVICED

CABLE STRAP/Retired CLIP return

3шт.

5

355109R1

PIN

pivot

3шт.

6

355107R1

LEVER

3шт.

7

392514R1

SPARE PART pressure

3шт.

8

392515R1

SPARE PART CUP spring

3шт.

9

392510R1

SPARE PART PLATE back

1шт.

10

392511R1

SPARE PART pressure

1шт.

11

392076R91

DISC

ASSY. clutch driven, dyna-life

1шт.
