(E-06[01]) - FUEL SYSTEM, FUEL STRAINER, GASOLINE ENGINE TRACTORS

Запчасти Case IH 2444 (E-06[01]) - FUEL SYSTEM, FUEL STRAINER, GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM

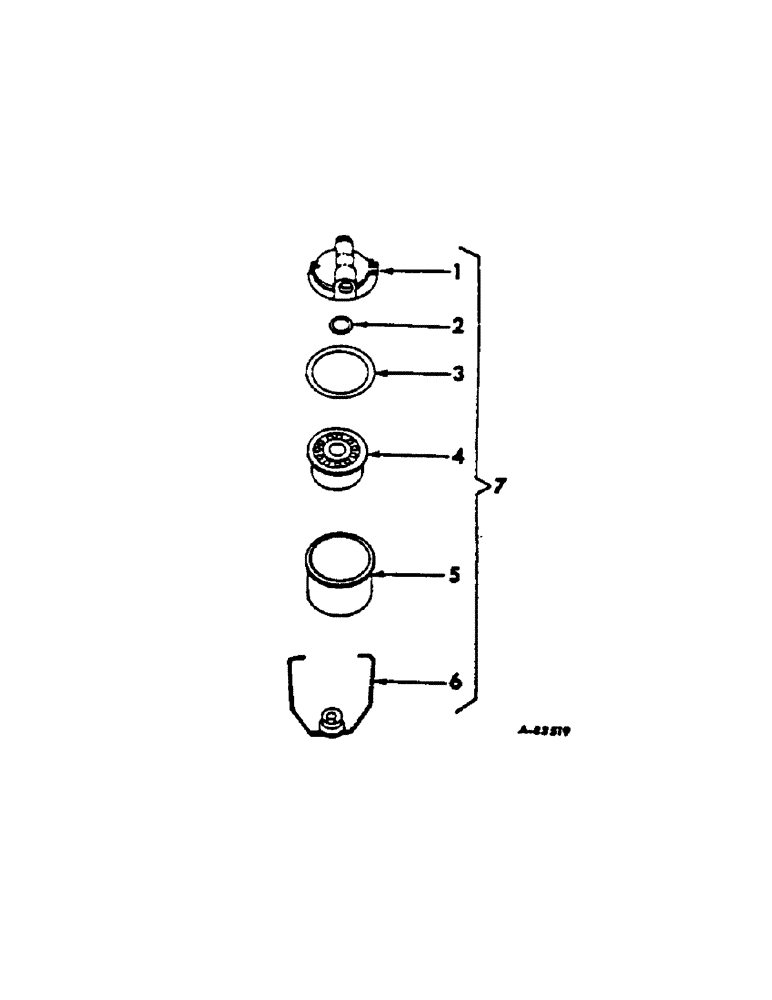

Схема запчастей Case IH 2444 - (E-06[01]) - FUEL SYSTEM, FUEL STRAINER, GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM
7
2
5
1
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

BODY ASSY. fuel strainer, order fuel strainer 614421R91

1шт.

2

614694R1

GASKET

sealing, element

1шт.

3

614695R1

GASKET

strainer, fuel

1шт.

4

614693R91

ELEMENT

strainer, fuel

1шт.

5

614696R1

BOWL

strainer, fuel

1шт.

6

98375R91

KIT

BAIL ASSY.

1шт.

7

614421R91

FILTER

STRAINER ASSY. fuel, composed of Ref. 1 thru 6, optional with 395809R91

1шт.

7

614421R91GV

BOWL

Value, Fuel Strainer

1шт.

Выбрано товаров: 8
