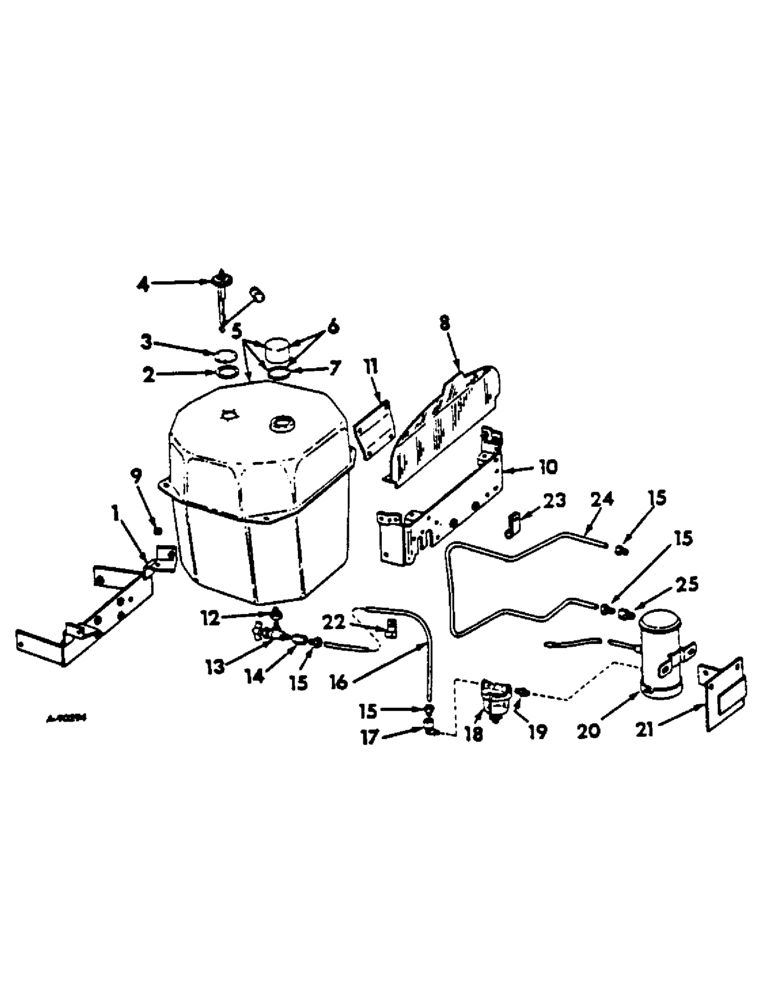

Запчасти Case IH 2444 (E-05) - FUEL SYSTEM, FUEL TANK, SUPPORTS AND PIPING, GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM

1

388712R91

SPARE PART ASSY. housing, rear, fuel tank and instrument panel

1шт.

102635

NUT,3/8"-16, G5

4шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

2шт.

103321

LOCK WASHER,3/8"

4шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

cap, hex head, 3/8"-16 x 1-3/4"

2шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x 0.65")

2шт.

2

369154R1

GASKET

sending unit and cover

1шт.

3

369155R1

SPARE PART opening, fuel gauge sending unit, tractors without electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

Mounting, Cover

5шт.

4

369608R92

SENDER UNIT

electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

Mounting, Sending unit

5шт.

5

388705R91

TANK

fuel, with filler cap

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

pipe, square head, 1/4"

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

pipe, auto. square head, 3/8"-18

1шт.

401468R1

SPARE PART external, cap, fuel tank

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x 0.65")

4шт.

6

361910R91

PLUG

CAP filler, fuel tank, with gasket

1шт.

213516

RIVET

SPARE PART ov. hd. tub. cd zn, 1/8" x 1/8"

2шт.

7

23977DB

GASKET

fuel cap

1шт.

8

388720R91

SPARE PART ASSY. heat

1шт.

9

60671DA

WASHER,11.94mm ID x 30.48mm OD x 8.13mm Thk

PAD insulating, fuel tank

8шт.

10

388708R21

SPARE PART ASSY. front, housing mounting, fuel tank and instrument panel

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

floating cage

4шт.

102635

NUT,3/8"-16, G5

2шт.

179842

SPACER

cap, hex head, 3/8"-16 x 1-3/8"

2шт.

103321

LOCK WASHER,3/8"

2шт.

11

388711R1

SPARE PART BRACKET fuel tank, front

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

12

444026

REDUCER,3/8"-18 NPTF x 1/8"-27 Fem NPTF

BUSHING reducing pipe, automotive, 3/8"-18 x 1/8"-27

1шт.

13

391587R91

VALVE

needle, angle type

1шт.

14

20688R1

CONNECTOR, ELEC

CONNECTOR fitting, hi-duty, female, 1/8" NPTF

1шт.

15

19985R1

TUBE NUT,1/2"-20

NUT tube fitting, hi-duty, 1/2"-20

4шт.

16

394385R1

SPARE PART PIPE fuel, Serial Range: tank-strainer

1шт.

17

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

tube fitting, hi-duty , 1/2"-20, male tube

1шт.

18

395809R91

STRAINER ASSY.

fuel, optional with 614421R91

1шт.

18

614421R91

FILTER

STRAINER ASSY. fuel, optional with 395809R91, for components see list of parts under details of fuel strainer

1шт.

18

614421R91GV

BOWL

Value, Fuel Strainer

1шт.

19

105404

PIPE,Nipple, 1/8" NPT x 3/4"

pipe, 1/8" x 3/4"

1шт.

20

394327R92

PUMP

ASSY. fuel

1шт.

109084

NUT,1/4"-20, G5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

cap, hex head, 1/4"-20 x 3/4"

2шт.

103319

LOCK WASHER,1/4"

2шт.

21

BRACKET ASSY. fuel pump, refer to eng.-1 parts catalog

1шт.

22

27307D

SPARE PART fuel tank to strainer tube

1шт.

23

270282C1

SPARE PART CLAMP union to carburetor pipe

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

24

394387R1

SPARE PART fuel, Serial Range: pump-carburetor

1шт.

25

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

fitting, hi-duty, male, 1/8" NPTF

1шт.
