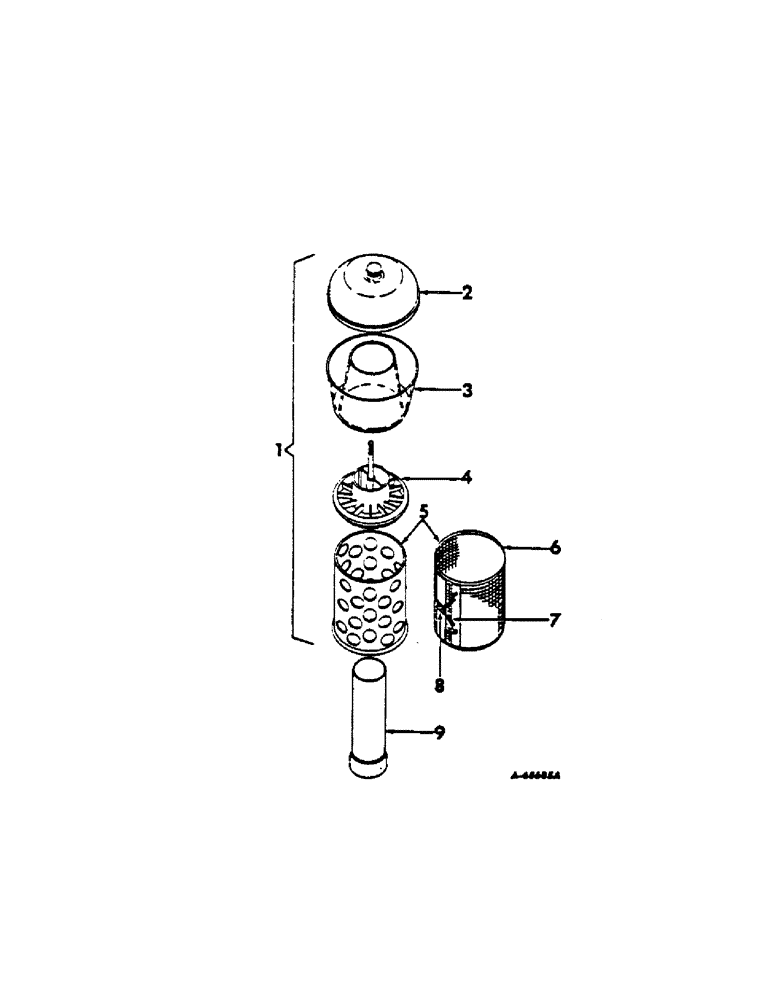

Запчасти Case IH 2444 (E-04) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER (02) - FUEL SYSTEM

379659R91

CLEANER

PARTS ACCESSORY pre-screener

1шт.

1

379660R91

CLEANER

PRE-SCREENER ASSY.

1шт.

2

362999R91

COVER

ASSY. pre-cleaner

1шт.

3

363000R1

BODY

pre-cleaner

1шт.

4

363003R91

SLEEVE

ASSY. pre-cleaner

1шт.

5

381602R91

SPARE PART PRE-SCREENER ASSY.

1шт.

120619

NUT

SPARE PART NUT square machine, znp, 10-24

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

machine, round head, 10-24 x 1-1/4"

1шт.

6

353637R91

SCREEN

with clip 353758R1 and two springs 353639R1

1шт.

7

353639R1

VALVE SPRING

tension, screen lock

2шт.

8

353758R1

CLIP

tension spring, screen lock

1шт.

9

379661R1

PIPE

EXTENSION air

1шт.
