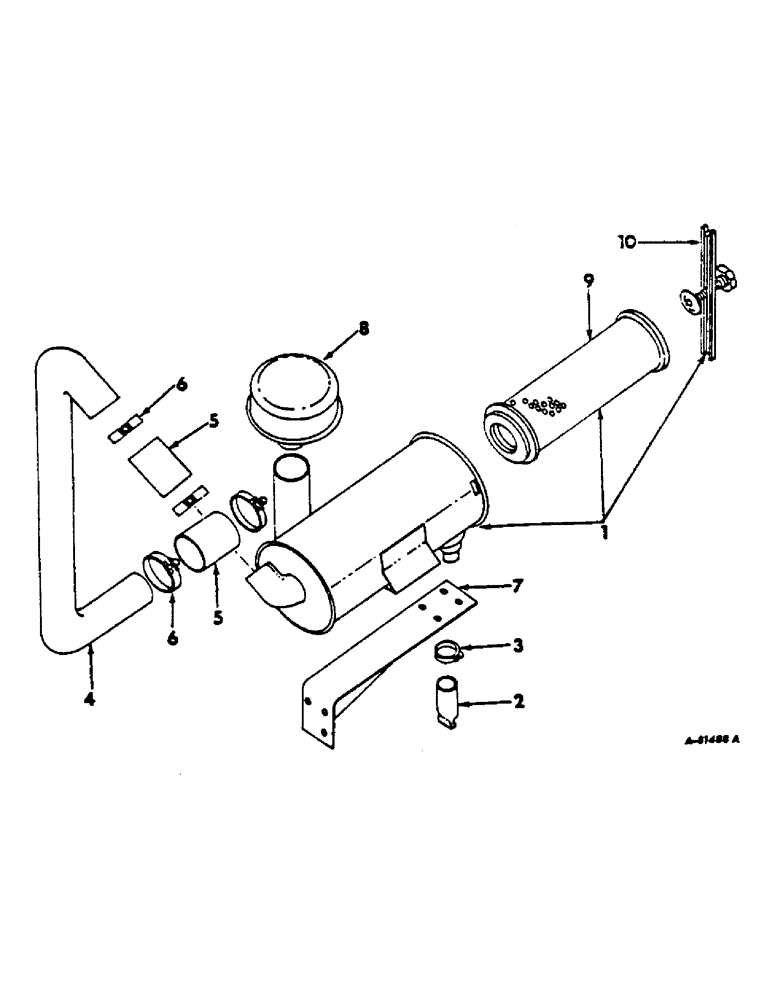

Запчасти Case IH 2444 (E-03) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, GASOLINE ENGINE TRACTORS (02) - FUEL SYSTEM

1

388471R91

SPARE PART ASSY. air

1шт.

2

324194R1

GROMMET

UNLOADER dust

1шт.

3

39107H

SPARE PART unloader, dust

1шт.

4

388389R1

SPARE PART PIPE ASSY. outlet, air cleaner

1шт.

103865

PLUG pipe, square head, 1/8"

1шт.

5

390862R1

SPARE PART connecting, air cleaner, 1-5/8" ID x 2-1/2" long

2шт.

6

39156H

CLAMP

hose, air cleaner

4шт.

7

388391R11

SPARE PART ASSY. mounting, air cleaner

1шт.

103026

NUT,3/8"-24, G5

3шт.

181354

BOLT

SCREW cap, hex head, 3/8"-24 x 1/2"

4шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

cap, hex head, 3/8"-24 x 3/4"

3шт.

103321

LOCK WASHER,3/8"

7шт.

8

353019R92

CYLINDER END CAP

pipe, air intake

1шт.

9

391852R91

ELEMENT

ASSY. air cleaner

1шт.

10

391851R91

BAR

ASSY. retainer

1шт.
