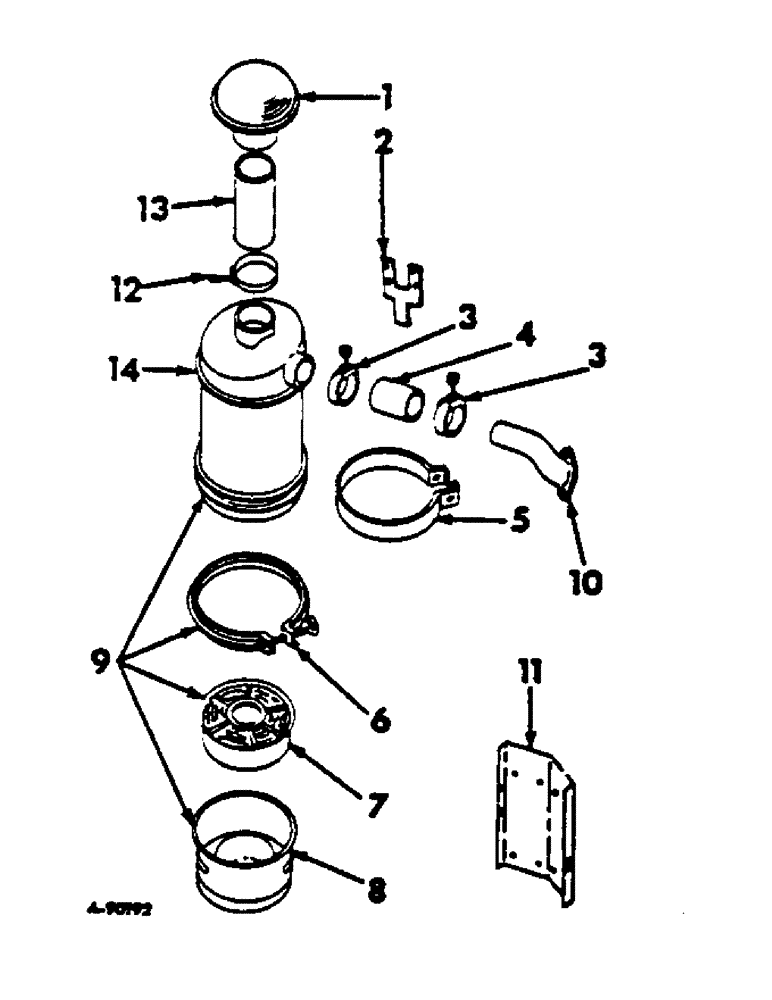

Запчасти Case IH 2444 (E-02) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, DIESEL ENGINE TRACTORS (02) - FUEL SYSTEM

1

353019R92

CYLINDER END CAP

pipe, air intake

1шт.

2

401964R1

SPARE PART BRACKET air cleaner

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

3

39205H

CLAMP

CLAMP hose, air cleaner

2шт.

4

362760R1

SPARE PART connecting, air cleaner, Replaces: 362759R1

1шт.

5

357816R1

SPARE PART mounting, air cleaner

1шт.

25-285

SQUARE NUT,Sq, 5/16"-18

reg. sq., 5/16"-18

1шт.

NLS

NO LONGER SERVICED

machine, slt. fil. head, 5/16"-18 x 1-3/4"

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

cap, hex head, 5/16"-18 x 1/2"

2шт.

103320

LOCK WASHER,5/16"

2шт.

6

3066899R91

CLAMP

ASSY.

1шт.

7

3066900R1

ELEMENT

lower

1шт.

3066898R1

GASKET

2шт.

8

3066896R91

SPARE PART BATH ASSY. oil

1шт.

9

3063241R91

AIR CLEANER

ASSY.

1шт.

10

3063372R1

PIPE

manifold, air intake

1шт.

11

3069243R21

SPARE PART ASSY. heat, air cleaner

1шт.

12

366323R1

CLAMP pipe, extension

1шт.

13

401963R1

SPARE PART PIPE extension, air cleaner

1шт.

14

3066897R91

SHELL

ELEMENT ASSY.

1шт.
