Запчасти Case IH 2444 (L-03) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS, LO-BOY TRACTORS Wheels & Wheel Weights

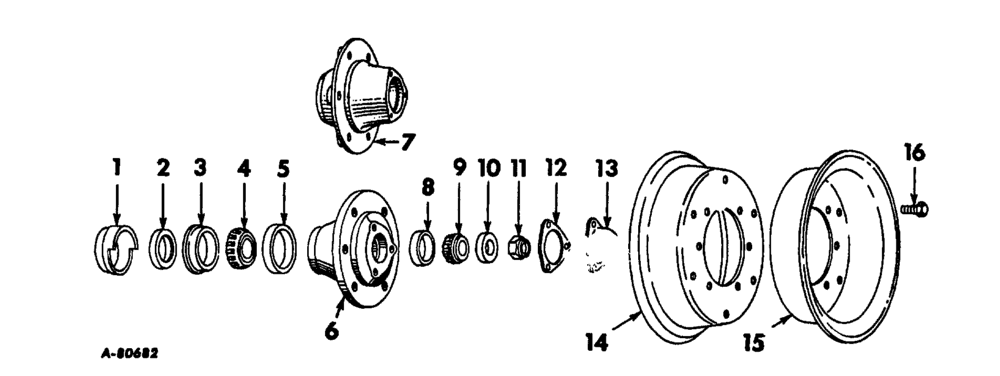

Схема запчастей Case IH 2444 - (L-03) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS, LO-BOY TRACTORS Wheels & Wheel Weights
16
14
15
9
10
8
1
7
13
3
2
12
5
4
11
6

Артикул

Название

Примечание

Количество

1

43462D

DEFLECTOR

dust, steering knuckle, service parts for tractors equipped with standard front axle

2шт.

1

48541D

SHIELD

DEFLECTOR dust, steering knuckle, service parts for tractors equipped with heavy duty front axle

2шт.

2

368629R91

SEAL

oil, dust, front wheel, service parts for tractors equipped with standard front axle

2шт.

2

48539DA

PACKING RING

SEAL oil, dust, front wheel, service parts for tractors equipped with heavy duty front axle

2шт.

3

49117D

CUP ASSY.

RING wear, oil seal, front wheel, service parts for tractors equipped with standard front axle

2шт.

3

48548D

WASHER

oil seal, front wheel, service parts for tractors equipped with heavy duty front axle

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

ASSY. inner, front wheel, service parts for tractors equipped with standard front axle

2шт.

4

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

ASSY.inner, front wheel, service parts for tractors equipped with heavy duty front axle

2шт.

5

651817R1

BEARING CUP

inner, front wheel, service parts for tractors equipped with standard front axle

2шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner, front wheel, service parts for tractors equipped with heavy duty front axle

2шт.

6

393862R11

SPARE PART ASSY. front wheel, service parts for tractors equipped with standard front axle

2шт.

7

399468R11

SPARE PART ASSY. front wheel, service parts for tractors equipped with heavy duty front axle

2шт.

8

651814R1

BEARING CUP

outer, front wheel, service parts for tractors equipped with standard front axle

2шт.

8

371883R1

BEARING CUP

Outer, front wheel, service parts for tractors equipped with heavy duty front axle

2шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

ASSY. outer, front wheel, service parts for tractors equipped with standard front axle

2шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

9

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, outer, front wheel, service parts for tractors equipped with heavy duty front axle

2шт.

10

369936R1

WASHER

retainer, outer bearing, front wheel, service parts for tractors equipped with standard front axle

2шт.

10

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

retainer, outer bearing, front wheel, service parts for tractors equipped with heavy duty front axle

2шт.

11

102649

SLOTTED NUT,5/8"-18, G5

Service parts for tractors equipped with standard front axle

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

2шт.

11

427639

SLOTTED NUT,3/4"-16, G5

slt. hex, 3/4"-16, service parts for tractors equipped with heavy duty front axle

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

2шт.

12

49116D

GASKET,0.79mm Thk

hub cap, front wheel, service parts for tractors equipped with standard front axle

2шт.

12

369860R1

GASKET,0.79mm Thk

hub cap, front wheel, service parts for tractors equipped with heavy duty front axle

2шт.

13

49115D

CYLINDER END CAP

hub, front wheel, service parts for tractors equipped with standard front axle

2шт.

13

369859R1

CAP

hub, front wheel, service parts for tractors equipped with heavy duty front axle

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

14

386081R1

WHEEL

HALF front, inner, service parts for tractors equipped with standard front axle or heavy duty front axle

2шт.

15

386082R1

WHEEL

HALF front, outer, service parts for tractors equipped with standard front axle or heavy duty front axle

2шт.

86837293

SHAFT

cap, hex head, cd. or zn. pltd., 1/2"-20 x 1"

12шт.

120371

NUT,1/2"-20, G5

12шт.

120384

WASHER,1/2"

12шт.

406823R1

SPARE PART SPACER front wheel, for 6.00 F x 10 double disk

2шт.

16

51485D

BOLT,9/16" - 18 x 1 7/32"

mounting, front wheel, service parts for tractors equipped with standard front axle or heavy duty front axle

12шт.

16

522067R2

BOLT,9/16" - 18 x 2 11/32", Grade 5

mounting, front wheel, service parts for tractors equipped with heavy duty front axle

12шт.

124634

NUT,9/16"-18, G5

12шт.

Выбрано товаров: 39
