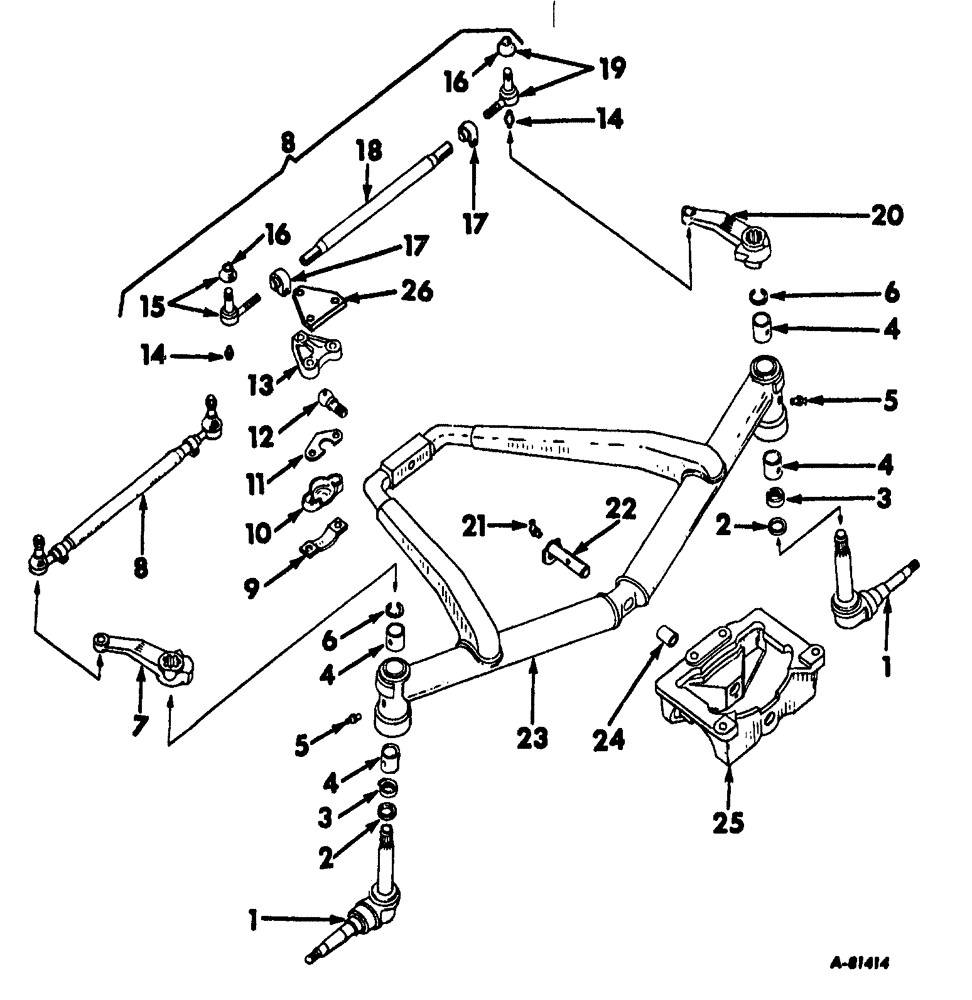

Запчасти Case IH 2444 (J-17) - STEERING MECHANISM, HEAVY DUTY FRONT AXLE Steering Mechanism

1

406847R91

KNUCKLE

ASSY. steering, Replaces: 378453R91

2шт.

427639

SLOTTED NUT,3/4"-16, G5

slt. hex, 3/4"-16

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

2шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

jam, hex, 1-3/8"

2шт.

Q326

WASHER

1-13/32" x 2-3/4" x 18 gauge

2шт.

2

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Felt, Pivot, Steering knuckle

2шт.

3

369131R91

THRUST BEARING

ASSY. pivot, steering knuckle

2шт.

4

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

pivot pin, steering knuckle

4шт.

5

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

2шт.

6

361850R1

RING

snap, steering knuckle arm

2шт.

S/N 3267 and below

1шт.

6

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING snap, steering knuckle arm

2шт.

S/N 3268 and above

1шт.

7

378456R1

ARM

steering knuckle, R.H.

1шт.

8

378457R91

SPARE PART ASSY. tie

2шт.

9

842391R1

PLATE

lock, ball socket

3шт.

10

842388R1

CAP

ball socket, stay rod

1шт.

11

842389R1

SHIM

ball socket, stay rod, or as required

1шт.

12

391408R92

PACKAGE

ball, front axle socket

1шт.

13

3043920R1

CUP

SOCKET ball, stay rod

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Tie rod

4шт.

15

356540R91

END

ASSY. tie rod, R.H. thread

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

2шт.

16

358209R1

COVER

dust, tie rod end

4шт.

17

356543R1

CLAMP

tube, tie rod

4шт.

102635

NUT,3/8"-16, G5

4шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

cap, hex head, 3/8"-16 x 1-5/8"

4шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

4шт.

18

378458R1

SPARE PART tie rod 0.766" ID, 0.865 - 1.003" OD, 1816" Length

2шт.

19

356541R91

END

ASSY. tie rod, L.H. thread

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

2шт.

20

378455R1

ARM

steering knuckle, L.H.

1шт.

21

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

Front axle pivot pin

1шт.

21

19628R1

FITTING lub., drive, pivot pin, front axle, 1/8"-27 taper thread, for tractors with front end weights for backhoes

1шт.

22

368604R11

PIN ASSY.,31.55mm OD x 116.84mm L

pivot, front axle

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

23

388892R93

SPARE PART ASSY. front, with bushings

1шт.

24

368608R1

BUSHING,31.76mm ID x 34.95mm OD x 53.34mm L

pivot, front axle

1шт.

25

369008R5

BOLSTER

lower

1шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

cap, hex head, 5/8"-11 x 1-7/8"

4шт.

103325

LOCK WASHER,5/8"

4шт.

26

388480R1

SPARE PART ball socket, stay rod

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

cap, hex head, 5/8"-11 x 2"

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

cap, hex head, 5/8"-11 x 3-1/4"

2шт.
