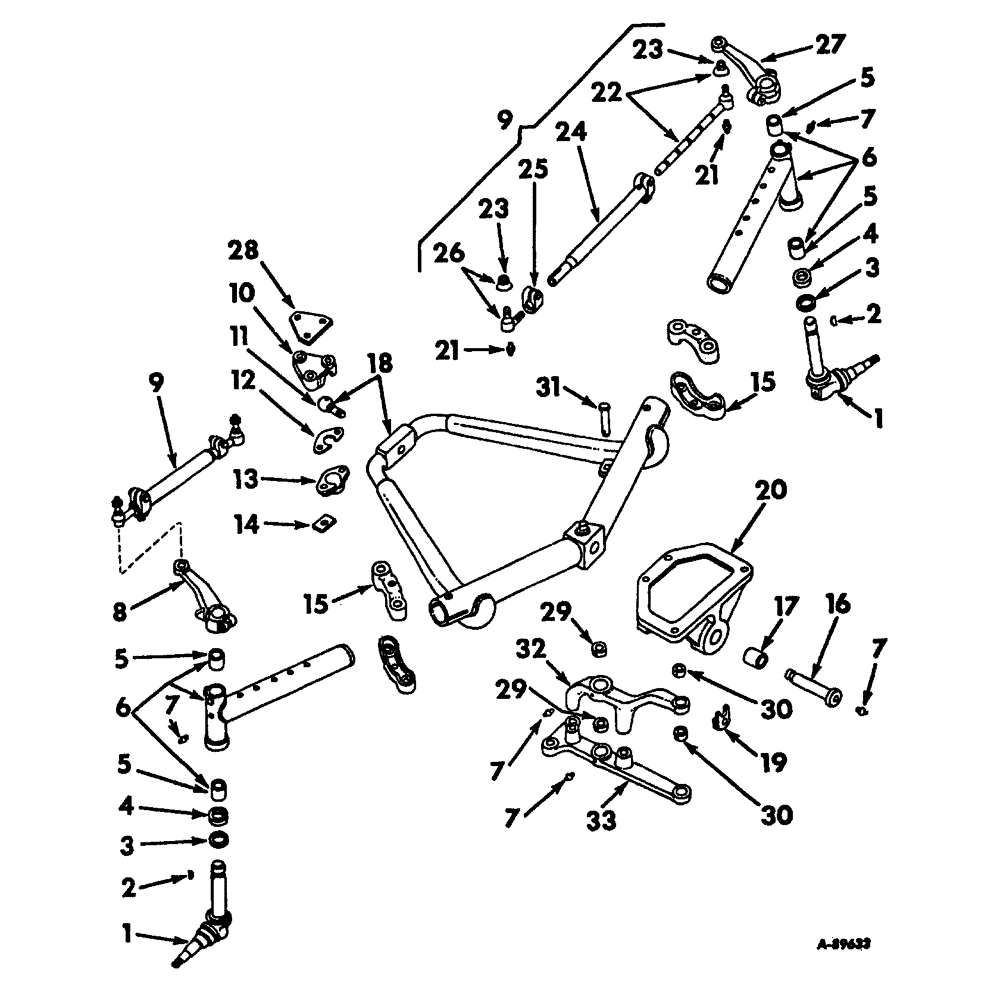

Запчасти Case IH 2444 (J-13) - STEER MECH, FRT AXLE & LOWER BOLSTER, 45-61" NARROW TREAD AXLE, TRACTORS W/ HYDROSTATIC POWER STEER Steering Mechanism

1

371705R91

KNUCKLE

ASSY. steering, 17" ground clearance, composed of: (1) deflector 43462D, (1) key 117997, (1) knuckle 368624R1 (NSS), (1) post 369005R1 (NSS), (1) seal 368629R91

2шт.

1

373890R91

SPARE PART ASSY. steering, 20" ground clearance, composed of: (2) knuckle 368624R1 (NSS), (2) key 117997, (2) deflector 43462D, (2) post 373891R1 (NSS), (2) seal 368629R91

2шт.

2

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

3

368627R1

WASHER

felt, steering knuckle

2шт.

4

365317R91

THRUST BEARING,36.51mm ID x 2.48mm OD x 16.51mm W

thrust, steering knuckle

2шт.

5

368621R1

BUSHING,36.2mm ID x 39.47mm OD x 38.35mm L

post, steering knuckle

4шт.

6

393225R11

SPARE PART ASSY. front axle, 17" ground clearance

2шт.

6

393506R91

SPARE PART ASSY. front axle, 20" ground clearance

2шт.

7

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

5шт.

8

376348R1

ARM

steering knuckle, R.H., 17" ground clearance

1шт.

8

379226R1

SPARE PART steering knuckle, R.H., 20" ground clearance

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

cap, hex head, 1/2"-13 x 3"

1шт.

9

393226R91

ROD

ASSY. tie, adjustable

2шт.

10

3043920R1

CUP

SOCKET ball, stay rod

1шт.

11

391408R92

PACKAGE

ball, stay rod socket

1шт.

12

842389R1

SHIM

ball socket, stay rod, or as required

1шт.

13

842388R1

CAP

ball socket, stay rod

1шт.

14

842391R1

PLATE

lock, ball socket

3шт.

15

368615R1

SPARE PART extension, front axle

4шт.

102639

NUT,5/8"-11, G5

6шт.

NLS

NO LONGER SERVICED

SCREW cap, hex head, 5/8"-11 x 3-1/2"

4шт.

271574

BEARING ASSY

SCREW cap, hex head, 5/8"-11 x 5"

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

6шт.

16

379532R2

HITCH PIN

pivot, front axle

1шт.

17

379531R1

BUSHING,44.48mm ID x 47.65mm OD x 50.8mm L

pivot, front axle

1шт.

18

398185R1

SPARE PART ASSY. front

1шт.

19

383181R11

LOCK ASSY

pivot pin, front axle

1шт.

179882

PIN

cap, hex head, 1/2"-13 x 1-1/8"

1шт.

103323

LOCK WASHER,1/2"

1шт.

20

398184R11

SPARE PART ASSY. pivot pin, front axle

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

22

393228R11

ROD

ASSY. tie

2шт.

23

358209R1

COVER

dust, tie rod end

4шт.

24

393227R11

SPARE PART ASSY. tie rod

2шт.

102635

NUT,3/8"-16, G5

2шт.

138712

THRUST BEARING,50.95mm ID x 74.87mm OD x 16.13mm W

SCREW set, hex socket oval point, 3/8"-16 x 1/2"

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

cap, hex head, 3/8"-16 x 1-3/4"

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

2шт.

25

356543R1

CLAMP

tie rod

2шт.

102635

NUT,3/8"-16, G5

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

cap, hex head, 3/8"-16 x 1-5/8"

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

2шт.

26

356540R91

END

ASSY. tie rod, R.H. thread

2шт.

103385

COTTER PIN,1/8" x 1"

2шт.

27

376347R1

ARM

steering knuckle, L.H., 17" ground clearance

1шт.

27

379225R1

SPARE PART steering knuckle, L.H., 20" ground clearance

1шт.

102637

NUT,1/2"-13, G5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

cap, hex head, 1/2"-13 x 3"

1шт.

28

388480R1

SPARE PART ball socket, stay rod

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

cap, hex head, 5/8"-11 x 2"

1шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

cap, hex head, 5/8"-11 x 3-1/4"

2шт.

29

379748R1

BUSHING

rear, cylinder support

2шт.

30

379554R1

BUSHING,25.43mm ID x 28.57mm OD x 19.05mm L

front, cylinder support

2шт.

31

385151R1

PIN

bracket, cylinder mounting

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

PIN, COTTER

1шт.

Q3501

WASHER

25/32" x 1-1/4" x 16 gauge

1шт.

32

379553R11

LEVER

ARM ASSY. cylinder support, upper

1шт.

33

398189R11

SPARE PART ASSY. cylinder support, lower

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

cap, hex head, 1/2"-13 x 2-1/2"

2шт.
