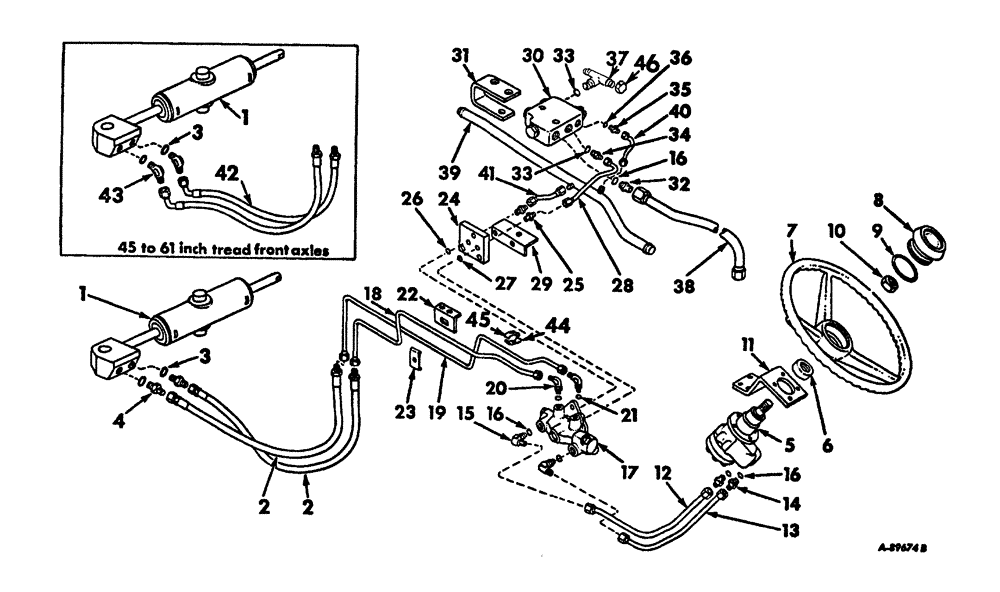

Запчасти Case IH 2444 (J-06) - STEER MECHANISM, HYDROSTATIC POWER STEERING, TRACTORS WITH 45-61" & 49-69" NARROW TREAD FRONT AXLES Steering Mechanism

1

391982R91

CYLINDER

ASSY. power steering, hydrostatic, for components see list of parts under detail of power steering cylinder

1шт.

2

398962R1

HOSE

ASSY. power steering cylinder

2шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR short swivel, 9/16"-18 C-Z 37° hyd. flared tube

2шт.

5

389397R92

PUMP

ASSY. hand, power steering, for components see list of parts under details of hydrostatic power steering hand pump

1шт.

6

226032R1

SEAL

dust

1шт.

7

385156R1

WHEEL (STEERING)

16" diameter

1шт.

7

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

8

378395R1

CAP

CAP steering wheel

1шт.

9

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

steering wheel cap, 2-13/16" x 3" x 3/32"

1шт.

10

F19646

LOCK NUT,13/16"-20, Thin

steering wheel

1шт.

11

388870R1

SPARE PART BRACKET hand pump

1шт.

102635

NUT,3/8"-16, G5

4шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

179842

SPACER

cap, hex head, 3/8"-16 x 1-3/8"

4шт.

103321

LOCK WASHER,3/8"

4шт.

12

388871R11

SPARE PART PIPE ASSY. valve to hand pump

1шт.

13

388872R11

SPARE PART PIPE ASSY. valve to hand pump

1шт.

14

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR short swivel, 3/4"-16 37° hyd. flared tube

2шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4"-16 37° hyd. flared tube adj. str. thread 90°

2шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64" x 13/16" x 5/64"

5шт.

17

385131R92

SPARE PART ASSY. pilot, power steering, for components see list of parts under details of power steering pilot valve

1шт.

18

398191R1

SPARE PART PIPE ASSY. power steering cylinder, front

1шт.

19

398193R1

SPARE PART PIPE ASSY. power steering cyllinder, front

1шт.

20

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16"-18 37° hyd. flared tube adj. str. thread 90°

2шт.

21

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

22

388875R1

SPARE PART BRACKET ASSY. pipe

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

crg., square neck, 3/8"-16 x 1"

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

95-11034

WASHER,1/4"

11/32" x 11/16" x .051"

1шт.

23

389503R1

SPARE PART pipe bracket

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

24

388877R1

SPARE PART manifold

1шт.

102635

NUT,3/8"-16, G5

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

cap, hex head, 3/8"-16 x 1-5/8"

2шт.

103321

LOCK WASHER,3/8"

3шт.

25

9402682

CONNECTOR, ELEC

CONNECTOR 9/16"-18 37° hyd. flared tube

2шт.

26

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

small, pilot valve, 13/16" x 1" x 3/32"

1шт.

27

362796R1

O-RING,0.924" ID x 0.103" Width

large, pilot valve, 15/16" x 1-1/8" x 3/32"

1шт.

28

389516R11

SPARE PART PIPE ASSY. flow divider to steering valve

1шт.

29

388880R1

SPARE PART pilot valve

1шт.

179854

SCREW,Hex, 7/16" - 14 x 5/8"

SCREW cap, hex head, 7/16"-14 x 5/8"

2шт.

103322

LOCK WASHER,7/16"

1шт.

30

389412R91

SPARE PART FLOW DIVIDER ASSY., for components see list of parts under details of flow divider valve

1шт.

31

389520R1

SPARE PART mounting, flow divider

1шт.

425-115

NUT,5/16"-24, G5

2шт.

148115

SPARE PART machine, cross recess pan head, 5/16"-24 x 2-1/4"

2шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW cap, hex head, 7/16"-14 x 3/4"

1шт.

103320

LOCK WASHER,5/16"

2шт.

103322

LOCK WASHER,7/16"

1шт.

32

394828R1

SPARE PART flow divider to hitch pressure pipe

1шт.

33

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4" x 15/16" x 3/32"

2шт.

34

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR flow divider to steering valve pipe

1шт.

35

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR short swivel, 9/16"-18 37° hyd. flared tube

1шт.

36

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

7/8"-14 37° hyd. flared tube adj. str. thread

1шт.

38

389519R11

SPARE PART ASSY. flow, Serial Range: divider-hitch

1шт.

39

389521R11

SPARE PART ASSY. suction

1шт.

40

389518R11

SPARE PART ASSY. flow divider to suction pipe

1шт.

41

389517R11

SPARE PART PIPE ASSY. steering valve to suction pipe

1шт.

42

398190R1

SPARE PART ASSY. power steering cylinder

2шт.

43

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16"-18 C-Z 37° hyd. flared tube adj. str. 45°

2шт.

44

384891R11

CLAMP

STRIP ASSY. hyd. tube

1шт.

103319

LOCK WASHER,1/4"

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

SCREW cap, hex head, 1/4"-20 x 11/16"

1шт.

45

384891R1

CLAMP

STRIP hydraulic tube

1шт.

46

9403373

CAP,37 Degree, 7/8"-14

7/8"-14 C-Z 37° hyd. flared tube

1шт.
