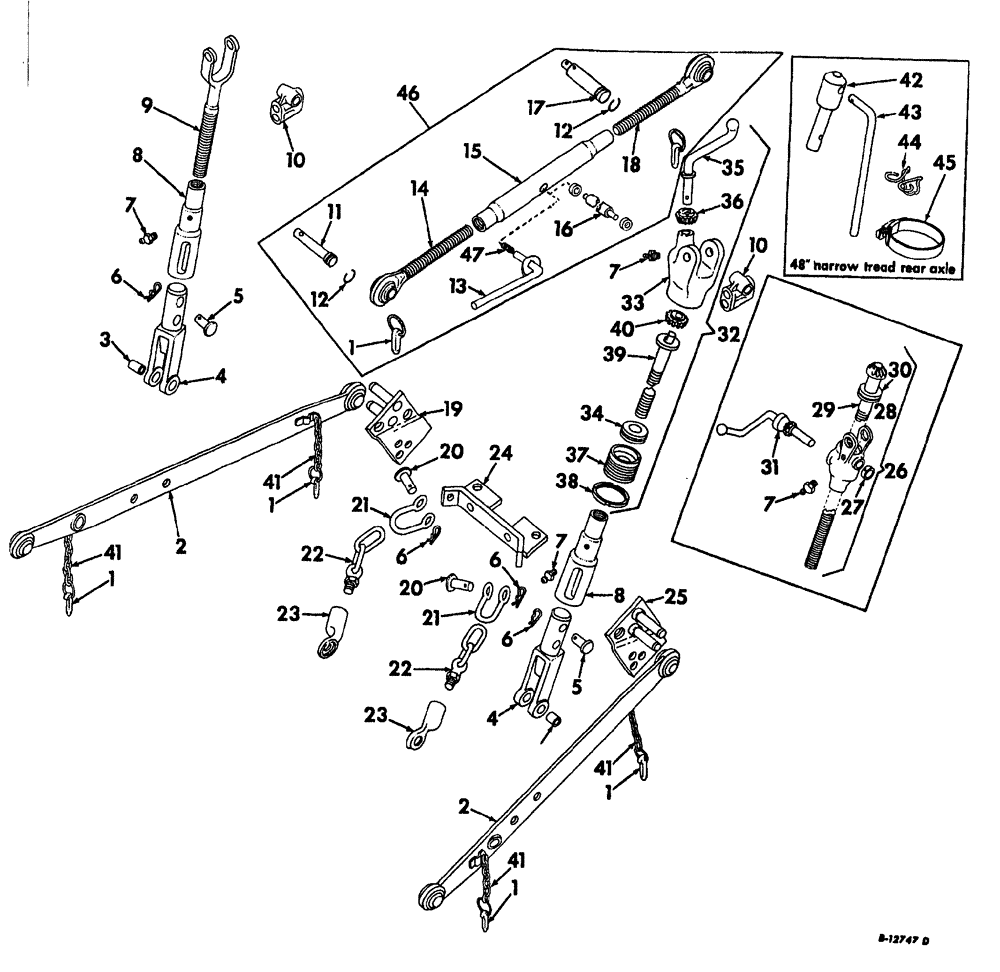

Запчасти Case IH 2444 (K-03) - DRAWBARS AND HITCHES, THREE-POINT HITCH Drawbars & Hitches
№
Артикул
Название
Примечание
Количество
1
704212R91
COTTER PIN
COTTER implement
4шт.
2
3044341R91
STRUT
LINK ASSY. lower
2шт.
3
3044353R1
BUSHING
lift rod
2шт.
4
3044352R1
FORK
lift rod
2шт.
5
3071482R1
PIN
standard head, 3/4" x 2-3/8", also order washer Q3501
2шт.
Q3501
WASHER
25/32" x 1-1/4" x 16 gauge
2шт.
6
720631R1
LINCH PIN
cotter, quick attachable
4шт.
7
109461
LUBE NIPPLE,1/8"-27 x .66 lg
PTF
3шт.
8
3045186R1
TUBE,1.5" ID, 1.906" OD, 7.8" Length
telescoping, lift rod
2шт.
9
3044350R1
ROD
lift, upper half, L.H.
1шт.
10
704207R3
PIVOT
SWIVEL lift rod
2шт.
3044309R1
PIN
hardened, standard head, 5/8" x 3-3/8"
1шт.
3069069R1
PIN
standard head, 5/8" x 3"
1шт.
11
3074815R1
PIN
top link, category I, Replaces: 3060316R2
1шт.
12
3074763R1
RETAINER
CIRCLIP wire, Replaces: 704185R1
2шт.
13
403378R1
SPARE PART ASSY. hitch turnbuckle, tractors with narrow tread rear axle
1шт.
14
704178R21
BOLT
ASSY. eye, top link, category I
1шт.
426899
NUT,Jam, 1"-8, G5
jam, hex, 1"-8 C-Z
1шт.
15
3044340R1
BUCKLE
turn, top link
1шт.
16
3074660R11
HANDLE
CTPE, Replaces: 19952R1
1шт.
17
3074756R1
PIN
top link, category II, Replaces: 704182R1
1шт.
18
704177R21
BOLT
ASSY. eye, top link, category II
1шт.
19
3048869R91
PLATE
ASSY. hitch, L.H.
1шт.
271606
BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5
SCREW cap, hex head, 3/4"-10 x 1-3/8"
2шт.
114610
LOCK WASHER,Ext Tooth, 3/4"
2шт.
20
6642
PIN
standard head, 5/8" x 2-1/4"
2шт.
21
3044357R1
STIRRUP
SHACKLE check chain
2шт.
22
3061991R91
CHAIN (AG)
ASSY. check
2шт.
23
3063457R1
ANCHOR
check chain
2шт.
3060311R2
BOLT
anchor, check chain
2шт.
3040353R1
NUT
lock, 1/2"-13
2шт.
12026R1
WASHER
17/32" x 1-1/4" x 16 gauge
2шт.
24
3044329R92
SPARE PART ASSY. check chain
1шт.
103325
LOCK WASHER,5/8"
2шт.
25
3048870R91
PLATE
ASSY. hitch, R.H.
1шт.
NLS
NO LONGER SERVICED
SCREW cap, hex head, 3/4"-10 x 1-3/8"
2шт.
114610
LOCK WASHER,Ext Tooth, 3/4"
2шт.
26
3044344R91
ROD
ASSY. leveling lift, R.H.
1шт.
27
704203R1
COLLAR
crank, leveling control
1шт.
435-1614
GROOVED PIN,3/16" x 7/8", Type A
3/16" x 7/8", Type A
1шт.
28
3044345R1
HOUSING
lift rod
1шт.
172580
PLUG,Exp, 1 7/8"
expansion, 1-7/8"
1шт.
29
3044349R1
ROD
leveling
1шт.
30
3044346R91
BALL BEARING
ball, leveling rod
1шт.
31
704200R32
CRANK
ASSY. leveling control
1шт.
32
3069056R92
ROD
ROD ASSY. leveling lift, R.H., used only with two pinion leveling rod
1шт.
33
3069057R1
BOX
BOX leveling gear, used only with two pinion leveling rod
1шт.
34
3044346R91
BALL BEARING
ball, leveling rod, used only with two pinion leveling rod
1шт.
35
3069062R11
CRANK
CRANK ASSY. leveling, used only with two pinion leveling rod
1шт.
36
3069063R1
GEAR
PINION leveling crank, used only with two pinion leveling rod
1шт.
142506
LATCH
3/16" x 3/4", Type A
1шт.
37
3069064R1
BEARING
BEARING leveling rod, used only with two pinion leveling rod
1шт.
38
not used in this application
1шт.
39
3069066R1
ROD
leveling, used only with two pinion leveling rod
1шт.
126-111
WOODRUFF KEY,#5, 1/8" x 5/8", HT
woodruff 5, 1/8" x 5/8"
1шт.
40
3061067R1
PINION
leveling rod, used only with two pinion leveling rod
1шт.
41
707071R12
SPARE PART link pin, with chain
4шт.
42
394992R1
SPARE PART CRANK leveling control, hitch, for 48" narrow tread rear axle
1шт.
435-1612
GROOVED PIN,3/16" x 3/4", Type A
3/16" x 3/4", Type A
1шт.
43
395002R1
SPARE PART handle, leveling control, hitch, for 48" narrow tread rear axle
1шт.
107762
WASHER,3/32" x 5/8"
1шт.
95-11034
WASHER,1/4"
11/32" x 11/16" x .065"
1шт.
44
395003R1
SPARE PART retaining, for 48" narrow tread rear axle
1шт.
45
279028R91
HOSE CLAMP,#40, 2.06/3.00 Type F Worm
retaining spring, for 48" narrow tread rear axle
1шт.
46
3044339R91
LINK
ASSY. top, Replaces: 3016315R91
1шт.
47
899896R1
SPRING
tractors with narrow tread rear axle
1шт.
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
plain, 17/32" x 1-1/16" x .074"
1шт.
103373
COTTER PIN,3/32" x 3/4"
1шт.
Выбрано товаров: 71
