Запчасти Case IH 2444 (H-10) - CONTROLS, FOOT PEDAL ACCELERATOR Controls

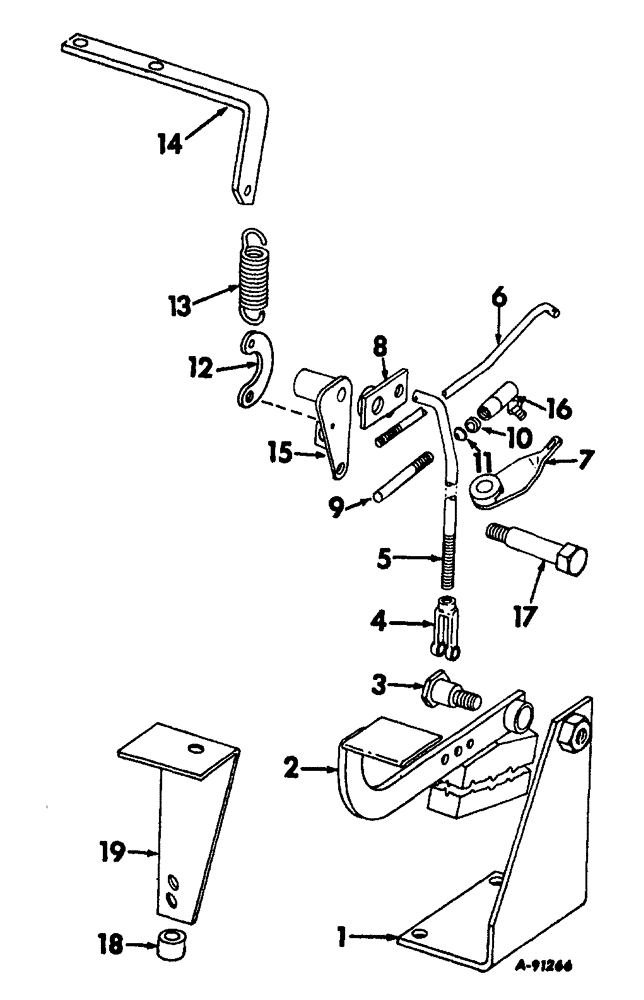

Схема запчастей Case IH 2444 - (H-10) - CONTROLS, FOOT PEDAL ACCELERATOR Controls
12
11
2
9
3
6
7
19
1
17
16
5
13
14
8
15
10
18
4

Артикул

Название

Примечание

Количество

403754R91

SPARE PART PARTS ACCESSORY foot pedal

1шт.

1

391127R11

SPARE PART ASSY. spring anchor and pedal

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

2шт.

2

403684R1

SPARE PART ASSY. foot accelerator, with damper

1шт.

3

379586R1

SPARE PART SHAFT pivot, foot accelerator

1шт.

4

116383

CLEVIS

rod end, adj., 1/4"-28 x 2"

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN rod end, 1/4" x 51/64"

1шт.

137130

PIN

cotter, 1/16" x 7/16"

2шт.

120392

WASHER,1/4", SAE

1шт.

5

391128R1

SPARE PART throttle control to foot control

1шт.

6

403691R1

SPARE PART governor control

1шт.

16558R1

WASHER

17/64" x 5/8" x .036"

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

7

403687R1

SPARE PART ASSY. rod, governor control

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

8

403686R1

SPARE PART ASSY. control, foot accelerator

1шт.

9

403679R1

SPARE PART ROD actuating, lever assy.

1шт.

10

403680R1

SPARE PART SPACER shock absorber

1шт.

11

403678R1

WASHER

CONTACT spherical

1шт.

12

369468R1

SUPPORT

LINK spring anchor, governor control

1шт.

13

356789R1

SPARE PART return, foot accelerator

1шт.

14

403690R1

SPARE PART BRACKET return spring, foot accelerator

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

2шт.

15

403682R1

SPARE PART ASSY. accelerator pivot

1шт.

95-11034

WASHER,1/4"

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

16

19322R1

BALL JOINT

1/4"-28 x 1-5/16"

2шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

3шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

446179

WASHER,#12

1шт.

17

391810R1

SPARE PART operating lever

1шт.

446221

WASHER,7/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120369

NUT,3/8"-24, G5

1шт.

18

359033R1

SPARE PART governor control

1шт.

19

403685R1

SPARE PART BRACKET governor

1шт.

Выбрано товаров: 38
