Запчасти Case IH 2444 (H-07) - CONTROLS, BRAKES, BRAKE LOCK AND CONNECTIONS Controls

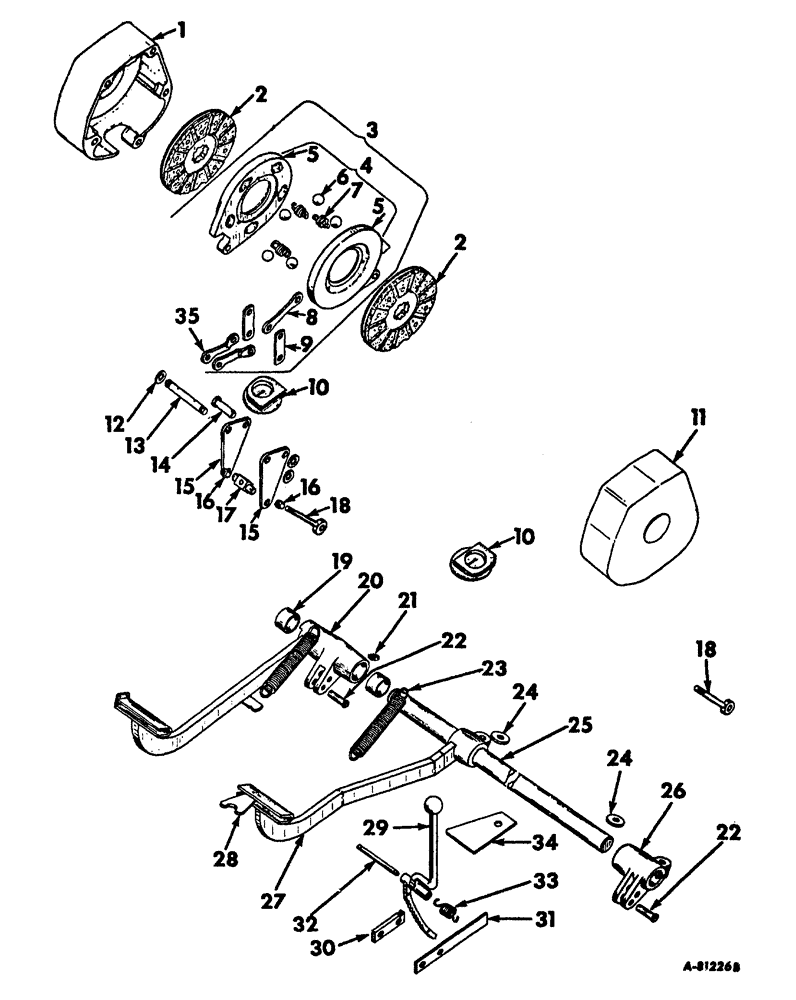

Схема запчастей Case IH 2444 - (H-07) - CONTROLS, BRAKES, BRAKE LOCK AND CONNECTIONS Controls
7
8
26
10
12
18
11
14
15
5
13
9
10
2
34
32
16
25
35
15
24
27
22
30
22
18
19
2
3
23
16
21
24
28
5
1
17
20
29
4
33
31
6

Артикул

Название

Примечание

Количество

1

3064172R1

HOUSING

brake, R.H.

1шт.

S/N 5036 and below

1шт.

1

3105298R1

HOUSING

brake, R.H.

1шт.

S/N 5037 and above

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

cap, hex head, 1/2"-13 x 3-1/2"

3шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

4шт.

2

395161R1

DISC

ASSY. brake

4шт.

3

3067135R92

ACTUATOR

UNIT ASSY. disc

2шт.

S/N 5036 and below

1шт.

3

3105296R91

ACTUATOR

UNIT ASSY. disc

2шт.

S/N 5037 and above

1шт.

4

3064169R91

DISC

ASSY. actuating, used with 3067135R92

2шт.

4

3105299R91

DISC

ASSY. actuating, use with 3105296R91

2шт.

5

3067144R1

TRAY

DISC actuating, used with 3064169R91

4шт.

5

3105304R1

DISC

actuating, used with 3105299R91

1шт.

6

706039R2

BALL

7/8" diameter

10шт.

7

3066876R1

SPRING

return, disc

6шт.

8

705967R1

LINK

actuating disc, plain, used with 3064169R91

2шт.

3067137R1

PIN

pivot

2шт.

118624

JAM NUT,Jam, 5/16"-24, G5

jam, phosphate-coated, 5/16"-24

2шт.

8

3105302R1

LINK

actuating disc, plain, used with 3105299R91

2шт.

3105300R1

BOLT

PIN

1шт.

3105301R1

NUT

1шт.

9

3067140R1

LINK

tension

4шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

rod end, phosphate-coated, 7/16" x 1-15/64"

2шт.

3071519R1

PIN

cotter, stainless steel, 3/32" x 7/8"

2шт.

3067142R1

WASHER

pin

2шт.

10

3064173R1

BOOT

rubber

2шт.

11

3064171R1

HOUSING

HOUSING brake, L.H.

1шт.

S/N 5036 and below

1шт.

11

3105297R1

HOUSING

brake, L.H.

1шт.

S/N 5037 and above

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

cap, hex head, 1/2"-13 x 3-1/2"

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

12

3067147R1

WASHER

35/64" x 1" x .090"

9шт.

13

3064195R1

PIN

pivot, brake operating lever

1шт.

3071519R1

PIN

cotter, stainless steel, 3/32" x 7/8"

2шт.

14

3064216R1

PIN

brake, tension

3шт.

3071519R1

PIN

cotter, stainless steel, 3/32" x 7/8"

3шт.

15

3064194R1

LEVER

brake operating

4шт.

16

3067136R1

LOCK NUT

adjuster bolt, foot brake

4шт.

17

3064217R1

TRUNNION

brake operating lever

1шт.

3071519R1

PIN

cotter, stainless steel, 3/32" x 7/8"

2шт.

18

3064218R1

BOLT

adjuster, foot brake

2шт.

19

3061206R1

BUSHING

cross shaft, brake pedal

2шт.

20

3069255R91

SPARE PART brake, R.H., with two bushings 3061206R1 and fitting 109461

1шт.

21

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

1шт.

22

3064219R1

PIN

adjuster, foot brake

2шт.

121222

COTTER PIN,3/32" x 3/4"

2шт.

120396

WASHER

17/32" x 1-1/16" x .095" C-Z

2шт.

23

3064186R2

SPRING

return, brake pedal

2шт.

24

3064184R1

KEY

brake lever

2шт.

25

3066289R2

SHAFT

brake pedal

1шт.

3064192R1

WASHER

shaft, brake pedal

1шт.

3072088R1

RETAINER

CIRCLIP shaft, brake pedal

1шт.

119179

SPARE PART cotter, 3/16" x 1-7/8", used only with 3066289R1

1шт.

26

3064185R1

LEVER

SPARE PART brake, L.H.

1шт.

102635

NUT,3/8"-16, G5

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

27

3069256R91

SPARE PART ASSY. brake, L.H., less Ref. 28

1шт.

102635

NUT,3/8"-16, G5

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

28

43751DB

LATCH, PEDALS

PLATE lock, brake

1шт.

443036

SPARE PART groove, 1/4" x 3/4", type 3

1шт.

51293D

SPRING

tension, lock plate

1шт.

29

3066294R91

LEVER

LEVER ASSY. brake lock

1шт.

95-11034

WASHER,1/4"

11/32" x 11/16" x 16 gauge

2шт.

Q530

HEADED PIN,7.92mm OD x 63.5mm L

cotter, 1/8" x 5/8"

1шт.

103384

COTTER PIN,1/8" x 3/4"

1/8" x 5/8"

1шт.

30

3048882R1

PAWL

brake lock

1шт.

31

3049249R1

PLATE

quadrant guide, brake lock lever

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

32

3048893R1

PIN

pivot, brake lock lever

1шт.

33

3048888R1

SPRING

return, brake lock

1шт.

34

3069453R1

PLATE

lever stop, brake lock

1шт.

35

3072278R1

LINK

joggle, actuating disc, used with 3067135R92

4шт.

118624

JAM NUT,Jam, 5/16"-24, G5

jam, phosphate-coated, 5/16"-24

2шт.

3067137R1

PIN

pivot

2шт.

35

3105303R1

LINK

cracked, use with 3105296R91

4шт.

Выбрано товаров: 84
