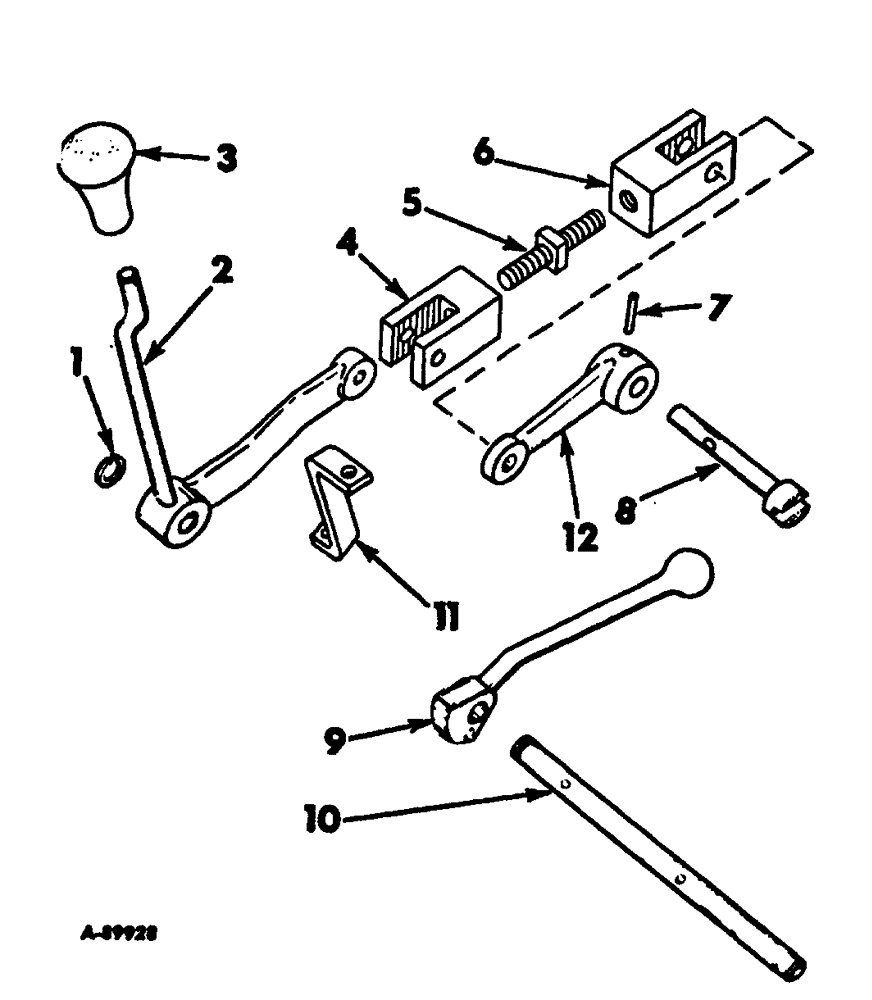

Запчасти Case IH 2444 (H-06) - CONTROLS, FORWARD AND REVERSE TRANSMISSION CONTROLS Controls

1

3049105R1

RETAINER

SPARE PART CIRCLIP lever, forward and reverse

1шт.

2

3072099R1

LEVER

forward and reverse

1шт.

3

401467R1

SPARE PART gear, forward and reverse, Replaces: 401469R1

1шт.

4

3072097R1

CLEVIS

rod

1шт.

114785

end, rod, 3/8" x 1-3/32"

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x .051")

1шт.

5

3072096R1

ADJUSTMENT ROD

ROD connecting, adjustable

1шт.

6

3072098R1

CLEVIS

rod

1шт.

NLS

NO LONGER SERVICED

end, rod, 3/8" x 1-3/32"

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x .051")

1шт.

7

20894R1

NO LONGER SERVICED

PIN spring, coiled, med., 1/4" x 1"

1шт.

8

3048727R2

SHAFT

connecting

1шт.

9

3074220R1

HANDLE

shifter, high/low range

1шт.

142358

PIN

groove, 1/4" x 1-1/2"

1шт.

10

3049108R2

SHAFT

shifter, high/low range

1шт.

11

3072100R1

BRACKET

shifter lever

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

12

3072095R1

LINK

shaft, forward and reverse

1шт.
