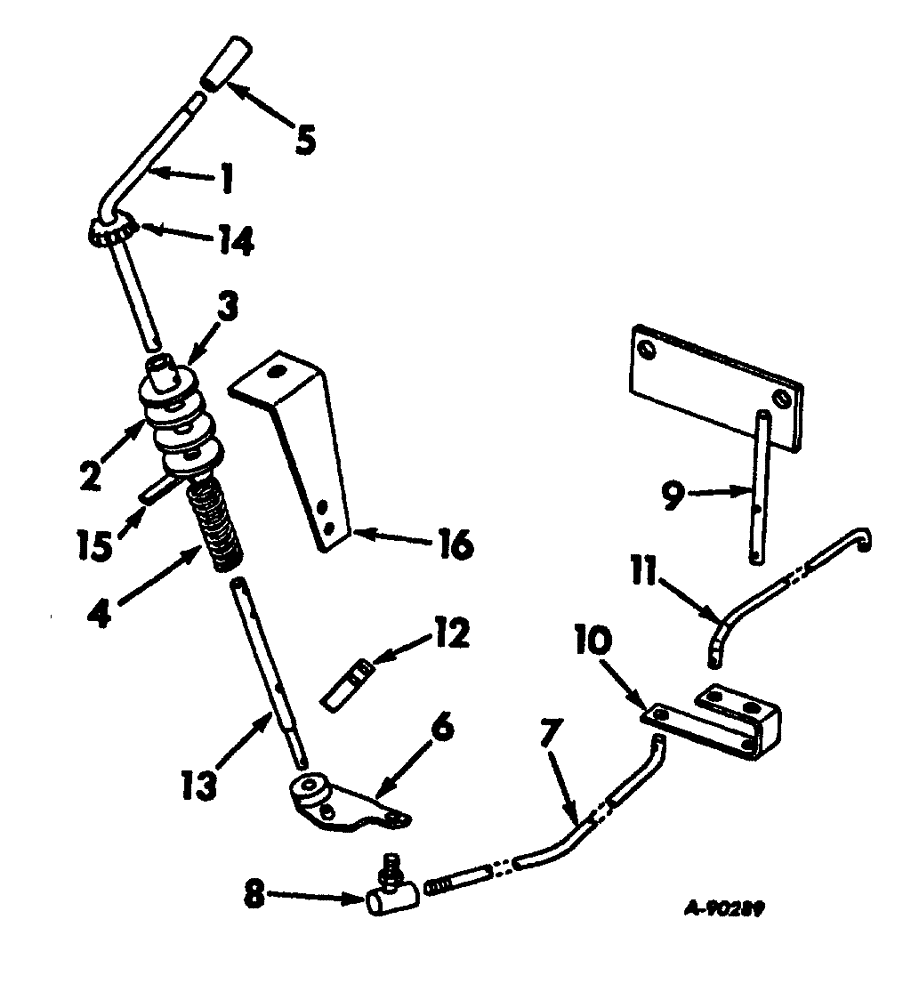

Запчасти Case IH 2444 (H-04) - CONTROLS, ENGINE SPEED CONTROLS, DIESEL ENGINE TRACTORS Controls

1

402783R1

SPARE PART LEVER hand, governor control

1шт.

2

394716R1

DISC

WASHER friction, governor control

2шт.

3

402785R1

SPARE PART ASSY. friction, governor control

1шт.

4

401663R1

SPRING

governor control

1шт.

5

388634R1

GRIP

handle, rod, governor control

1шт.

6

388635R11

SPARE PART ASSY. rod, governor control

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

7

388617R1

SPARE PART governor control, rear

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

16558R1

WASHER

17/64" x 5/8" x .065"

1шт.

8

19318R1

BALL JOINT

1/4"-28

1шт.

25-114

NUT,1/4"-28, G5

hex, 1/4"-28

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

9

388618R11

SPARE PART ASSY. pivot, idler arm

1шт.

102635

NUT,3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

10

388620R1

SPARE PART idler arm, governor control

1шт.

108628

PIN

cotter, 1/16" x 7/8"

2шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x 0.65")

2шт.

11

388621R1

SPARE PART governor control, front

1шт.

107761

COTTER PIN,1/16" x 5/8"

2шт.

266102R1

WASHER, 17/64" x 15/32" x .060"

2шт.

12

388624R1

SPARE PART arm, rod, governor control

1шт.

102635

NUT,3/8"-16, G5

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

95-11041

WASHER,3/8"

(13/32" x 13/16" x 0.65")

2шт.

13

402782R1

SPARE PART lever, governor control

1шт.

19368R1

PIN,5/32" x 1", Coiled

4шт.

NLS

NO LONGER SERVICED

17/32" x 1-1/16" x 16 gauge

2шт.

14

394054R1

SPARE PART lever, governor control

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

cup point, hex s/c head, 8-32 x 3/8"

1шт.

15

401789R1

SPARE PART ASSY. friction, adj. lower, governor control

1шт.

16

401360R1

SPARE PART BRACKET governor

1шт.
